Novatek-electro ET-485 Operating Manual

Protocol converter modbus rtu/ascii (rs-485)– modbus tcp (ethernet)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

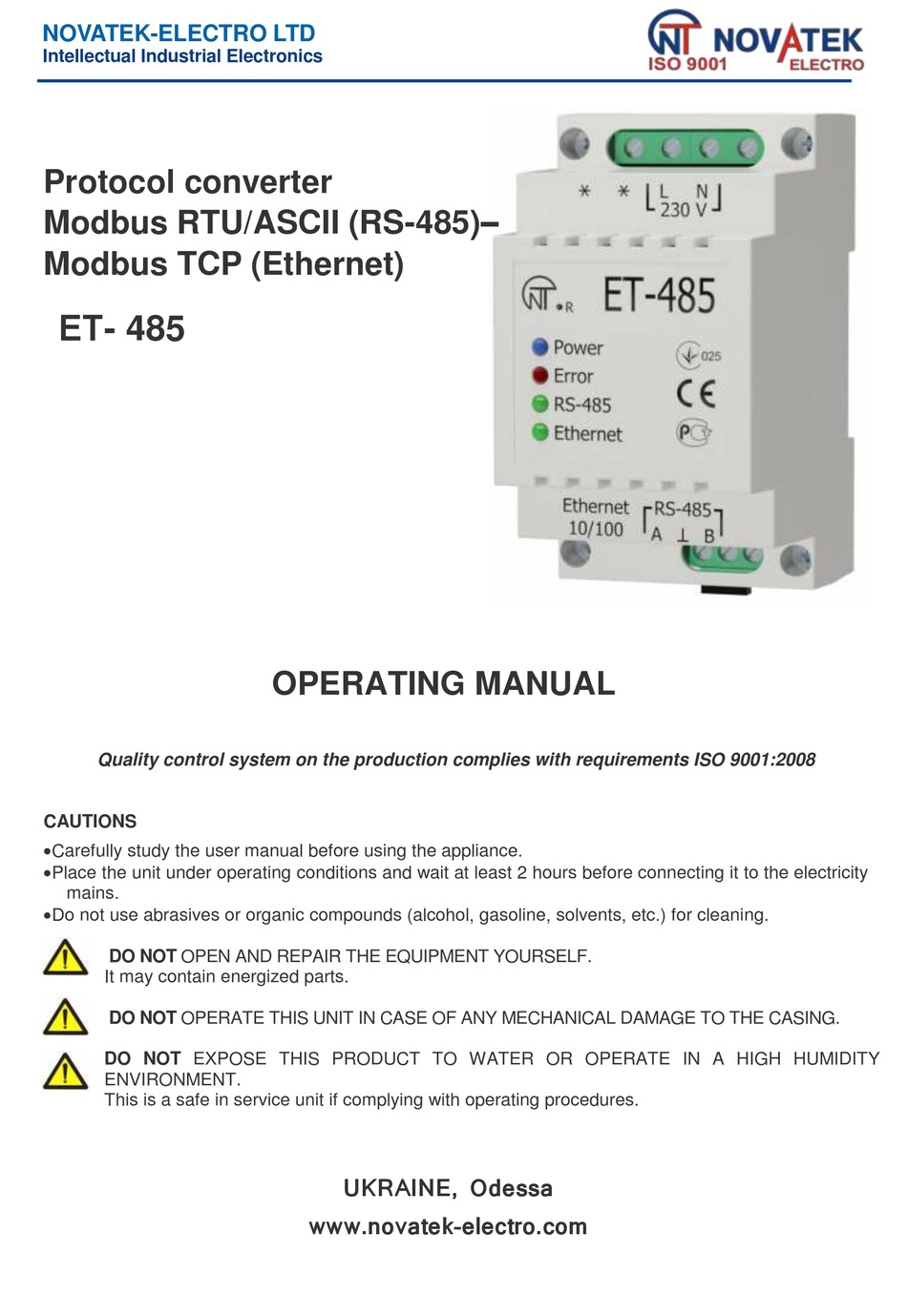

NOVATEK-ELECTRO LTD
Intellectual Industrial Electronics
Protocol converter
Modbus RTU/ASCII (RS-485)–
Modbus TCP (Ethernet)
ЕТ- 485
Quality control system on the production complies with requirements ISO 9001:2008
CAUTIONS
Carefully study the user manual before using the appliance.
Place the unit under operating conditions and wait at least 2 hours before connecting it to the electricity
mains.
Do not use abrasives or organic compounds (alcohol, gasoline, solvents, etc.) for cleaning.
DO NOT OPEN AND REPAIR THE EQUIPMENT YOURSELF.
It may contain energized parts.
DO NOT OPERATE THIS UNIT IN CASE OF ANY MECHANICAL DAMAGE TO THE CASING.
DO NOT EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY
ENVIRONMENT.
This is a safe in service unit if complying with operating procedures.
OPERATING MANUAL
UKRAINE, Odessa
www.novatek-electro.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET-485 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Novatek-electro ET-485

Summary of Contents for Novatek-electro ET-485

  • Page 1 NOVATEK-ELECTRO LTD Intellectual Industrial Electronics Protocol converter Modbus RTU/ASCII (RS-485)– Modbus TCP (Ethernet) ЕТ- 485 OPERATING MANUAL Quality control system on the production complies with requirements ISO 9001:2008 CAUTIONS Carefully study the user manual before using the appliance. Place the unit under operating conditions and wait at least 2 hours before connecting it to the electricity mains.

  • Page 2: Table Of Contents

    6.1. General information 6.2. Operating ЕТ-485 over the HTTP protocol 6.3. Operating ЕТ-485 over the Modbus TCP protocol 6.4 The operation of ET-485 in the mode of active connection to the client 7. SETTINGS 7.1. General information 7.2. Parameters of ЕТ-485 7.3.

  • Page 3: Purpose

     Server – is a unit, which performs specific functions at the request of other units;  DCRS - Data Collection Remote Server, to which ET-485 connects in the ACC mode  ASCII – is a table of standard codes for information interchange;...

  • Page 4: Specifications

    35 to +55 Storage temperature, °С from minus 45 to +70 Atmospheric pressure, kPa from 84 to 106.7 Relative air humidity (at 25°С), % from 30 to 80 3. STRUCTURE AND FUNCTIONING 3.1. STRUCTURE 3.1.1. Design ЕТ-485 NOVATEK-ELECTRO...

  • Page 5: Display And Control

    5 – Indicator «Ethernet» is activated when connected to the Ethernet network; is flashing while data exchange over the Ethernet network. Figure 2 – Front panel of ET-485 3.2. FUNCTIONING Simplified structural diagram of the unit is provided in Figure 3.

  • Page 6: Maintenance And Safety Measures

    Powering up the unit will activate "Error" and "RS-485" indicators, while the unit shall start initiating transceivers. After that, both indicators go out within 0.5 second and the unit starts working (Ethernet network connection may take more time depending on the settings of the unit as well as other units connected to the network). ЕТ-485 NOVATEK-ELECTRO...

  • Page 7: Operating Ет-485 Over The Http Protocol

    Figure 4 – Unit connection diagram 6.2. OPERATING ЕТ-485 OVER THE HTTP PROTOCOL ET-485 waits for a connection to an Ethernet network using the HTTP protocol on port 80. PC connection can be established using the WEB-browser. When a client connects to port 80, the unit starts expecting requests for HTML-pages. These requests may contain certain parameters.

  • Page 8: The Operation Of Et-485 In The Mode Of Active Connection To The Client

    (data collection remote server) with a set host name or IP address. ET-485 receives Modbus TCP queries from this client and returns responses. The mode allows one user to work with one or more ET-485 units via the Internet without static address assignment to each unit (see appendix B).
  • Page 9 Table 5 – The Unit Describing Parameters Parameter Description Address Code identifying the Modbus unit by the manufacturer (12 – ET-485) Unit type Firmware version Version of firmware of the integrated software of the unit Table 6 – The Unit Current Mode Parameters Min –...
  • Page 10 ET-485 0: the connected client does not have the permit for Bit 7 setting ET-485 1: the connected client has the permit for setting ET-485 (similar to register 121) 0: the client is not the main client Bit 8...
  • Page 11 Modbus-identifier without forwarding them to the Modbus network Bit rate in Used in case of data exchange between the units in 75 – 9 600 534– Modbus-network, Modbus-network, the same value for all units in Modbus- 1 500 000 bit/sec network ЕТ-485 NOVATEK-ELECTRO...
  • Page 12 «; : " < > * + = \ | / ? ,» The preset Used for access to the devices, connected to ET-485, for password for requesting functions of recording or control, which can 563–568...
  • Page 13 1: all function queries from all clients are blocked, except Modbus functions 1, 2, 3, 4, 7, 17, 20 Enable IP Used for access to the devices, connected to ET-485, for connection filter requesting functions of recording or control, which can to record to de- 0–1...
  • Page 14 0–1 1: Modbus queries are also received from the client (or 1506 the client DCRS) with set address, to which ET-485 establishes and maintains connection. This client recieves rights of the second primary ET-485 client Enable sending Used in the mode of active connection to the client.

  • Page 15: Configuring Ет-485 Through Web Interface

    (obtain 0 value). 8 COMPLETE SET ET-485 is supplied with: - ET-485 protocol converter ............. 1 piece - Operating manual ..............1 piece. - Cable for Ethernet connection ..........1 piece - Shipping box ................

  • Page 16: Service Life And Warranty

    80% with no vapors available in the air, capable of producing harmful effect on the shipping box and unit materials. When transporting ET- 485, the user should provide some protection against mechanical damage 11 ACCEPTANCE CERTIFICATE ET- 485 is manufactured and accepted in accordance with the applicable technical documentation and considered fit for use. ЕТ-485 NOVATEK-ELECTRO...

  • Page 17: Appendix A. Switching To Ethernet

    255.255.255.0 as a mask and address starting with 192.168.0. The fourth byte of the address can take any value in the range from 1 to 255, except for 111. If the connection between ET-485 and a client unit is not provided directly but via a network with a number of units, the mentioned address can not be equal to any of the addresses of other units on the subnet .
  • Page 18 Select "Use the following IP- address". Specify the address in the "IP- address" field within the range from 192.168.0.1 to 192.168.0.255 (except for 192.168.0.111, which is used by ET-485). Specify "255.255.255.0" in the “Subnet Mask” field. The fields "Default Gateway", "Preferred DNS-server", and "Alternative DNS- server" should be left blank.
  • Page 19 In case of complex and large networks (especially when providing access to the ET-485 via Internet), the users are recommended to separate the unit from unprotected networks with standard protective equipment (router, configured to filter the transmissions, Firewall, etc.).

  • Page 20: Appendix B. Character Codes Under Ascii Standard

    Two ET-485 units are used, connected as shown in Figure B.2. ET-485 “a” is connected in the slave mode to RS-485 Modbus “A” network (with a master device). ET-485 “b” is connected in the master mode with a static IP address to Modbus “B” network (with slave devices). Both units are connected into one Ethernet network or connected by means of routers via Internet so that unit “a”...
  • Page 21 At consecutive “chain” redirection, as shown in Figure B.4, every new ET-485 unit is set for redirection to the last added ET-485 unit in the chain (in the settings of which, in its turn, a new unit can be specified as the main client).
  • Page 22 If automatic sending of unique MAC address is enabled, after connection ET-485 shall transfer MAC address as Modbus response (herewith, query is not sent by the client). Then ET-485 awaits queries from clients as well as from other Modbus TCP clients. Since ACC mode is based on Modbus TCP with some changes (ET-485 connects the client and then functions as Modbus server), the client should maintain ACC mode.
  • Page 23 (herewith, Modbus write protection mode should be disabled). The user is offered once to enter the activation code of the necessary unit. The code is available for reading while ET-485 is being set through WEB interface. After the user enters a code, an appropriate unit is added to the list of user’s units.

  • Page 24: Appendix C. Symbol Codes According To Ascii

    (herewith, Modbus write protection mode should be disabled). APPENDIX C (recommended) Symbol codes according to ASCII Code* Symbol Code* Symbol Code* Symbol (пробел) “ & ‘ < > * – codes are given in decimal numbering system ЕТ-485 NOVATEK-ELECTRO...
