PROCESSES
MIG/MAG Welding
MMA welding
Description

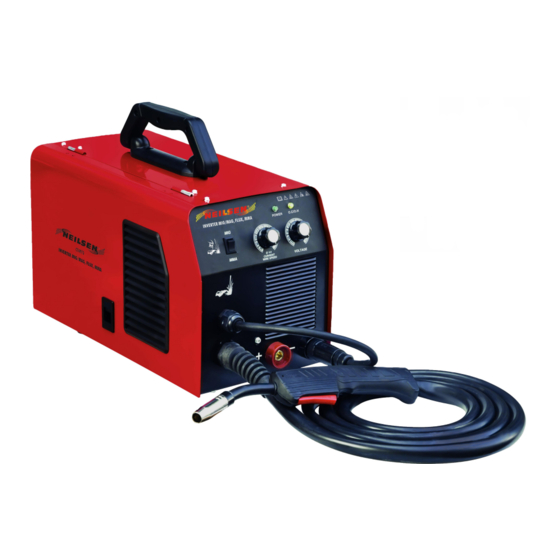

Arc Welding Power Source
INVERTER MIG/MAG, FLUX, MMA
CT4973
.
ORIGINAL INSTRUCTION
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K
Work like a Pro! Pros weld and cut safely.
Please read the User's Manual carefully before using the machine.
Advertisement
Table of Contents
Summary of Contents for Nielsen CT4973
- Page 1 MIG/MAG Welding MMA welding Description Arc Welding Power Source INVERTER MIG/MAG, FLUX, MMA CT4973 ORIGINAL INSTRUCTION Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K Work like a Pro! Pros weld and cut safely. Please read the User’s Manual carefully before using the machine.
- Page 2 In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: INVERTER MIG/MAG, FLUX, MMA Model: CT4973 Applicable EC Directives: EC Low Voltage Directive 2014/35/EU EC Directive of Electromagnetic Compatibility 2014/30/EU Harmonized standards EN 60974-1：2012...
-
Page 3: Table Of Contents
CONTENTS SAFETY RULES................................2 IDENTIFYING SAFETY INFORMATION ●These symbols are being used to identify potential risks. ●When seen a safety symbol in the manual, it must be understood that there is an injury risk and following instructions must be read carefully to avoid potential risks. ●... -
Page 4: Safety Rules
SAFETY RULES ELECTRICAL SHOCK COULD BE FATAL Installation procedure must comply with national electricity standards other relevant regulations and ensure that installation is performed by qualified persons. ●Wear dry, hole-free insulating gloves and body protection. ●Do not touch electrode with bare hand. Do not wear wet or damaged gloves and body protection. - Page 5 SAFETY RULES ARC RAYS CAN BURN EYES AND SKIN ●Use adequate welding helmet with correct shade of filter (4 or 13 considering TS EN 379) to protect your eyes and face. ●Protect open parts of your body (arms, neck and ears) from arc rays by adequate protective clothing.
- Page 6 SAFETY RULES WELDING WIRE MAY CAUSE INJURY Do not point the gun toward any part of a human body, other persons or any type of metal when unwinding ● welding wire. While extracting the wire from the spool by hand, it may spring suddenly and injure you or a nearby person, ●...
- Page 7 SAFETY RULES MAINTENANCE MADE BY UNQUALIFIED PERSONS MAY CAUSE INJURIES ●Electrical devices should not be repaired by unqualified persons. Improper repairs can cause serious injuries or even death during applications. ●The components of the gas circuit works under pressure. The service given by unqualified persons may cause explosions and operators can be injured seriously.
-
Page 8: Electromagnetic Compatibility（Emc
ELECTROMAGNETIC COMPATIBILITY（EMC） ELECTROMAGNETIC EMISSION All electrical equipment generates small amounts of electromagnetic emission due to current transferring in ● the equipment. Electrical emission may be transmitted through power lines or radiated through space, similar to a radio transmitter. When emissions are received by other equipment, electrical interference may result . Electrical emissions may affect not only welding machines but also many kinds of electrical equipment like radio and TV reception, numerical controlled machines, telephone systems, computers etc. -
Page 9: Technical Informations
●Output voltage and wire speed or welding current constant voltage and current ( CV and CC ) power of the CT4973 welding machine can be adjusted by sources especially designed for MIG/MAG and a welding voltage and wire speed or welding current MMA welding. -
Page 10: Technical Specifications
Protection grade . For example, IP21,approving the welding machine as suitable for use indoors; IP23,. approving the welding machine as suitable for use outdoors in the rain. Suitable for hazardous environments. ： Beyond rain. F or H： Insulation grade. 1.4 THE MAIN TECHNICAL SPECIFICATIONS CT4973 230VAC±15%, 1 Phase Input voltage 50Hz Frequency DC 40~180A Output current DC 16.5~26.4V... -
Page 11: Installation
●Make sure that your line voltage is 1 Phase , 230V, 50 ●Transport and place the device on firm and Hz for CT4973 level ground so that it may not fall over. The is very good selection for welding 1.2~6 maximum permissible angle of inclination thickness metal. -
Page 12: Connect The Machine To Power Supply
● nameplate of ,for example, 1～，50 Hz，230VAC. supply has been labeled in the the machine power supply cable should be used. ●For CT4973（1～，50 Hz，230VAC）, the 3G1.5mm² power switch of the power Before turning on the main supply user must check carefully these connections ●... - Page 13 INSTALLATION Wire Inching for Power LED1 Over-heat MIG/MAG MIG/MAG or MMA Over-current LED2 Selection Welding Voltage Welding Current Welding Current for MIG/MAG for MMA for MIG/MAG Figure 1: The front panel of Welding power source Connection of Gun and Welding cable on the front panel: Output (＋) or welding Gun connector :...
-
Page 14: Connect The Gas Cylinder
INSTALLATION 2.3.5 CONNECT THE GAS CYLINDER ●After placing the gas cylinder , fasten it with the chain. To operate safely and get best results use approved gas regulators and heaters. ●Briefly open the gas cylinder valve several times in order to blow out any dirt and particles present . ●Connect the pressure regulator to the shielding gas cylinder . -
Page 15: Usage Information
USAGE INFORMATION 3. USAGE INFORMATION 3.1 THE POWER SOURCE FRONT PANEL ● On the front control panel of the welding power source,there are Pilot lights, Welding current and voltage controller,etc (Figure 1) ● LED1: Pilot light of the power supply. The LED1 is lighted when SW1 switch is ON. ●... -
Page 16: The Functions Of The Gun Switch
USAGE INFORMATION 3.6 THE FUNCTIONS OF THE GUN SWITCH When operating, once the gun switch is triggered, wire feeding and current starts when it is released the welding ● knob of welding current and voltage in operation ends. W elding current and voltage are controlled by the Figure 1 . -
Page 17: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING 4. MAINTENANCE AND TROUBLESHOOTING Only qualified persons should install,use or service this equipment. Protect yourself and others from possible serious injury or death. WARNING: Do not operate with covers removed.Disconnect input power before servicing. Do not touch electrically live parts. WARNING: Before removing any screw on the machine for maintenance, power supply must be disconnected from the electric lines and enough time should be allowed for capacitor discharging. -
Page 18: Basic Troubleshooting
MAINTENANCE AND TROUBLESHOOTING 4.3 BASIC TROUBLESHOOTING TROUBLE REMEDY REASON Change the switch. Power source switch is out of order. 1.Machine does not work. Change the fuse. Fuse is blown out. Contact your authorized technical service. Electronic Card is out of order. 2. - Page 19 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China -17-...
