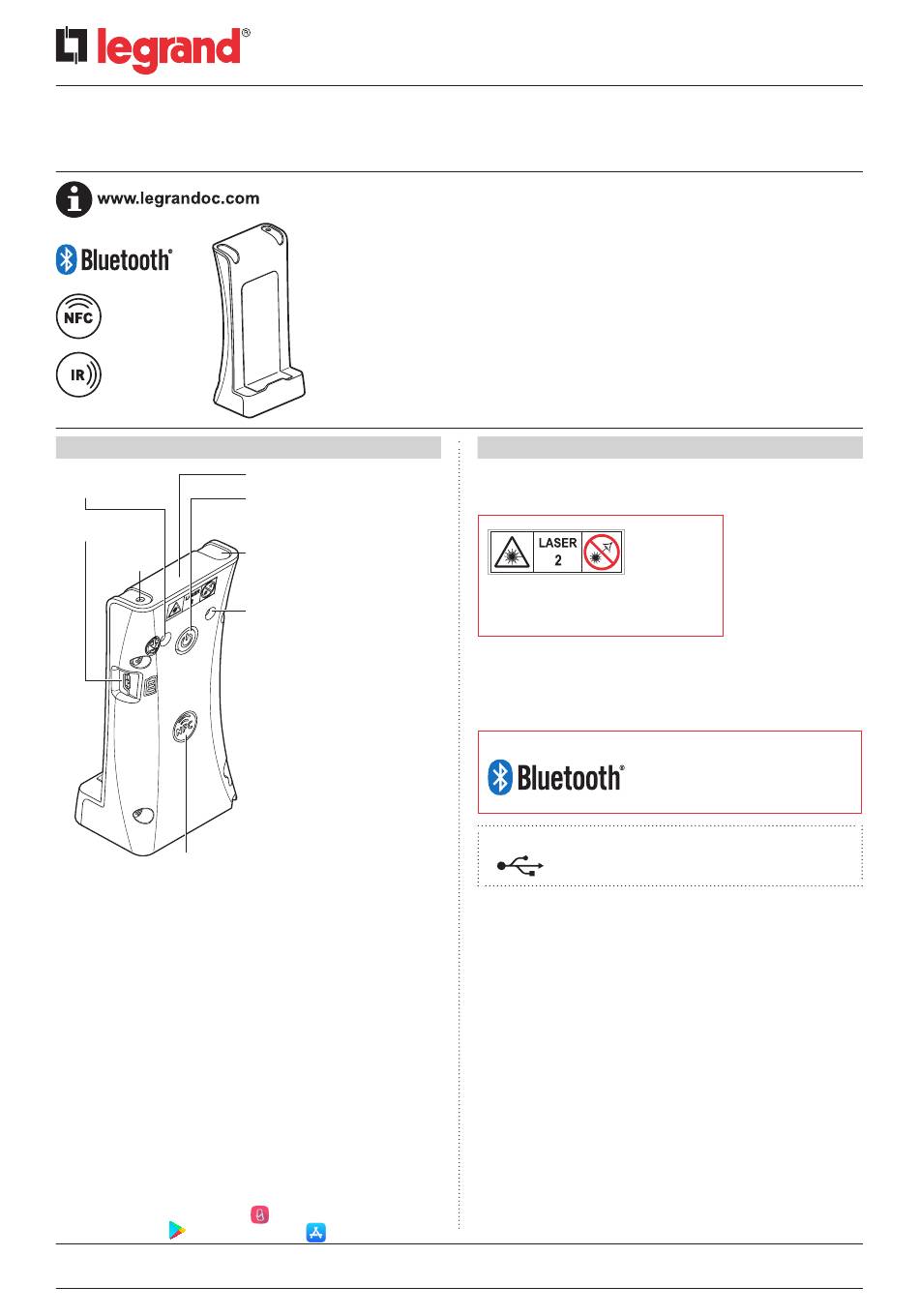

1. DESCRIPTION
Firmware update
button
Type B micro USB
charging ≤ 1.5 m
Laser
pointer
NFC zone

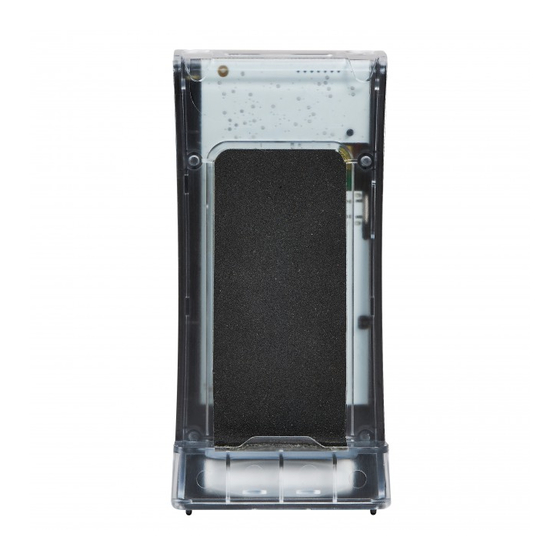

This configuration tool with the Close Up app aids installation and
maintenance of compatible Legrand products such as for example
motion sensors, Sarlam bulkhead lights or connected self-testing self-
contained emergency lighting units.
With this configuration tool you can configure products before, during
and after installation, whether switched on or off, using NFC and IR
communication.
The available functions are:
- Product parameter setting in IR and NFC
- Quick access to product technical documents
- Saving and sharing configuration settings
- Copy and paste configuration from one product to another
- Troubleshooting
- Adapting sensor light level meters to their environments
- Easy parameter setting of Legrand DALI sensors
- Comparison of product settings with the original file
- Display of self-contained emergency lighting unit data (fault, last time
on standby power)
- Addressing self-contained emergency lighting units (for an
addressable installation)
- Assignment of self-contained emergency lighting unit no. (escape sign
lighting)
It works with the Legrand Close Up
platforms (Play Store
) and iOS (Apple Store
Technical data sheet: S000106251EN-2
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 5 55 06 87 87 Fax: +33(0)5 55 06 88 88
www.legrand.com
Infrared cell
On: short press
Off: long press > 5 s
Light level cell
Status LED
Green (steady or flashing): battery charged
Steady orange: battery run down
Flashing orange: battery charging
Steady blue: paired with smartphone
Blue flashing slowly: awaiting firmware
download
Blue flashing quickly: firmware
downloading
app available on Android
)
Updated: 22/07/2020
CONTENTS PAGE
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . . . . . . . . .1
3. Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . .2
4. Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
4.1 Main menu. . . . . . . . . . . . . . . . . . . . . . . . . . .3
4.2 Manage settings files . . . . . . . . . . . . . . . . .4
4.3 Scan product settings . . . . . . . . . . . . . . . .5
5. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6. Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2. TECHNICAL CHARACTERISTICS
Infrared communication technology (13 m max)
Storage temperature: -20°C to +70°C
Laser pointer: Class 2 laser, 662 nm ± 5 nm, P < 1 mW
LASER RADIATION
DO NOT LOOK INTO THE BEAM
CLASS 2 LASER DEVICE
Weight: 124 g
Usage temperature: -5°C to +45°C
Minimum software version:
- Android version ≥ 4.4
- iOS version ≥ 9
Paired using version ≥ 4.2
Recharging: Use a mini USB cable (not supplied) for recharging the
configuration tool with a standard USB socket.
Cat. No(s): 0 882 40
Created: 26/03/2019
1/6
