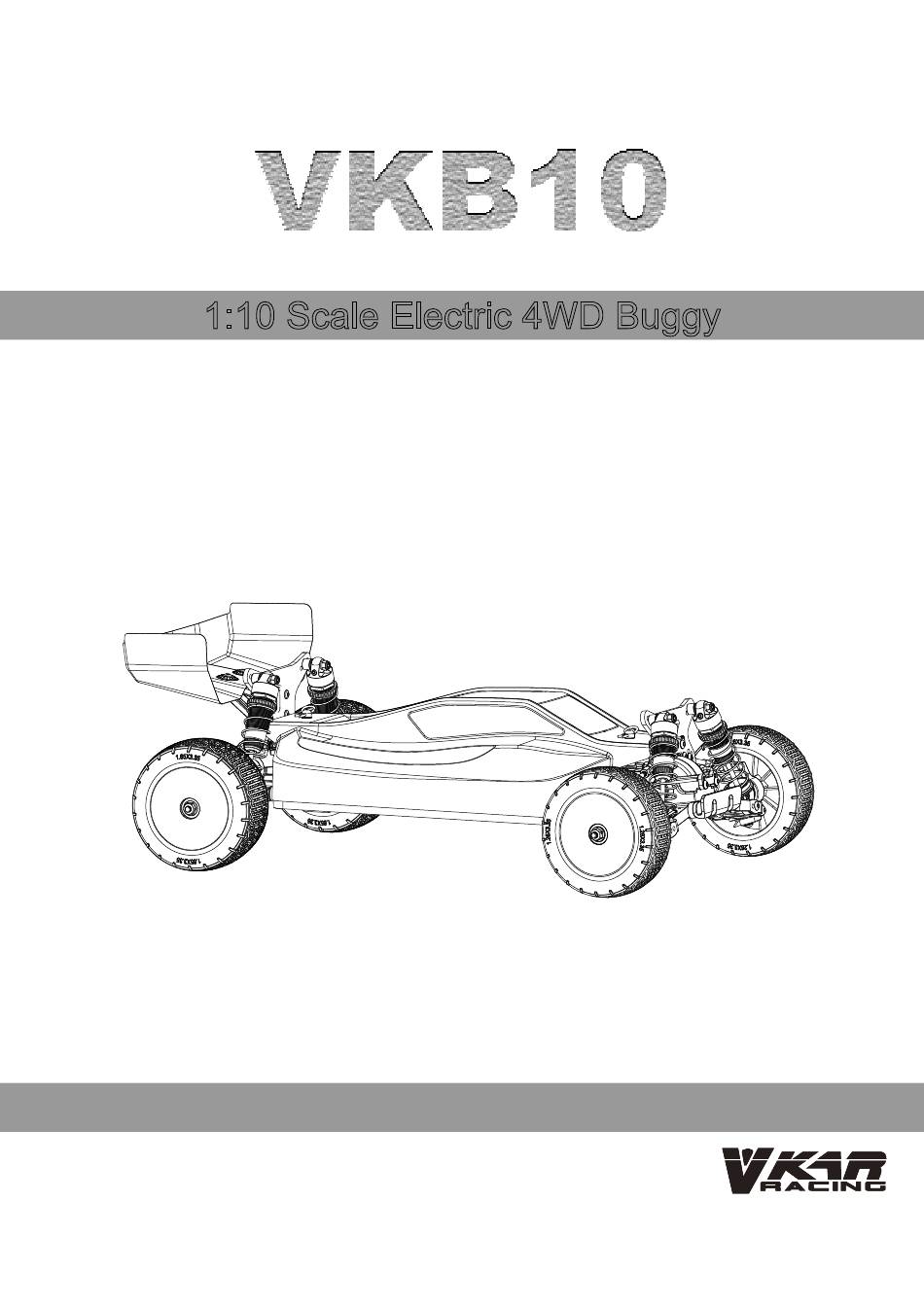

- Page 1 1:10 Scale Electric 4WD Buggy INSTRUCTION MANUAL V K A R H o bb y C o .,L td www. v ka rra c i n g. co m...
-
Page 2: Product Contents
INTRODUCTION Thank you for purchasing this VKAR racing model.This manual contains instructions on operating and maintaining the VKB10.Please take a monent to read through this manual to familiarze yourself with this model. FEATURES Incredible speed. Impressive durability. Maintenance friendly. Metal gear differentials. - Page 3 IMPORTANT INFORMATION The VKB10 is a powerful RC car that will bring much enjoyment.Howewever,improper use can cause damage and bodily injuries.Please read the following information carefully to avoid casualties. This model can be operated with Ni-MH or Lithium Polymer batteries. Due to the battery’s high energy,density,please pay attention to the following information to avoid injuries or damages.
-
Page 4: System Instruction
SYSTEM INSTRUCTION... - Page 5 RADIO SYSTEM SETUP...
- Page 6 SETUP 【BEGIN TO USE THE NEW ESC】 1. Connect the ESC, motor, receiver, battery and servo according to the following diagram “ +” and “ -” wires of the ESC are connected with the battery pack, and #A, #B and #C are connected with the motor wires.
- Page 7 SETUP 3. The LED Status in Normal Running a) When the throttle stick is in the neutral range, neither the Red LED nor the Green LED lights up. b) When the car moves forward, the Red LED solidly lights; the Green LED also lights up when the throttle stick is at the top position (100% throttle).
- Page 8 FRONT &REAR DIFFERENTIAL ASSEMBLY 10x15x4mm BB103 M2.5x12 MA307 SW201 1.5X8.8 PN101 MA329 2.5X7X0.3 5X12X0.3 SH101 SH103 MA309 1.5X8.8 PN101 AC001 MA329 OR102 VB1010 MA328 10x15x4mm VB1111 BB103 OR102 CENTRAL DIFFERENTIAL ASSEMBLY VB1059 8x14x4mm BB105 ET1096 OR102 SH103 M2.5x12 5X12X0.3 SW201 MA309 M2.5x8 SW201...
- Page 9 FRONT SHOCKS ASSEMBLY VB1023 VB1113 VB1064 PM2X4 VB1022 EC101 OR109 78mm VB1022 OR101 VB1051 VB1023 VB1049 VB1022 FRONT COMBO ASSEMBLY 14.5mm VB1108 PM3X6 VB1106 IM3X3 VB1021 VB1004 VB1103 27mm SW304 VB1045 PM3X12 VB1062 VB1043 SW303 41mm PM3X10 NT102 IM3X12 VB1111 SW201 VB1024 MA308...
- Page 10 REAR SHOCKS ASSEMBLY VB1114 VB1023 VB1065 VB1022 EC101 OR109 92.5m VB1022 OR101 VB1023 VB1052 VB1050 VB1022 REAR COMBO ASSEMBLY 16.5mm VB1107 VB1104 SW304 SW306 36.5mm VB1024 PM3X12 VB1109 VB1116 PM3X6 IM3X3 VB1026 VB1044 VB1021 VB1062 Φ3X46 SW303 PM3X10 VB1045 SW201 KM2.5X8 VB1111 MA308...
-
Page 11: Other Assembly
MOTOR MOUNT ASSEMBLY STEERING ASSEMBLY VB1013 VB1112 VB1066 Motor MA316 VB1055 VB1047 VB1103 VB1105 VB1057 VB1066 VB1041 SW207 VB1063 VB1040 VB1055 SW303 OTHER ASSEMBLY VB1011 SW306 SW304 VB1025 VB1066 VB1017 VB1025 SW306 Servo SW306 VB1016 SW203 SW306 VB1018 BB101 VB1015 SW203 VB1020 BB101... - Page 12 OTHER ASSEMBLY MA320 MA320 VB1115 SW303 SW303 SW306 VB1066 VB1102 VB1101 NT104 NT104 SW304 SW208 SW203 SW208 SW208 SW208 SW203 SW304 SW203...
- Page 13 SPARE PARTS PLASTIC VB1001 VB1002 VB1003 VB1004 VB1005 VB1006 Front Rear 2X10.8 VB1007 VB1008 VB1009 VB1010 VB1011 VB1012 Left Right M2.6x6 VB1018 VB1013 VB1014 VB1015 VB1016 VB1017 Left Right VB1019 VB1020 VB1021 VB1022 VB1023 VB1024 M2x4 VB1025 VB1026 VB1027 VB1028 VB1029 VB1030 Front...
-
Page 14: Spare Parts
SPARE PARTS VB1040 VB1041 VB1042 VB1043 VB1044 VB1045 MA307 MA308 MA309 VB1046 VB1047 MA373 M3X3 1.5X8.8 Φ3.175 5X12X0.3 2.5X7X0.3 MA329 VB1049 VB1050 VB1051 VB1052 VB1053 Front Rear Front Rear VB1054 VB1055 VB1056 VB1057 VB1058 VB1059 M3X10 M2.5x8 1.5X8.8 VB1060 VB1061 VB1062 VB1063 MA316... -
Page 15: Optional Parts
ELECTRONIC COMPONENTS SPARE PARTS MB002 EB001 NH001 CR001 MA707 TX001 battery NI-MH Charger MBL001 MBL005 EBL001 EBL003 LP001 MA704 MA706 battery LI-PO 3650 4000MAH 3650 7.4vX3000MAH Charger 7.4v 3500KV 5280KV x1 ASSEMDLY PARTS VB1101 VB1102 VB1103 VB1104 VB1105 VB1106 Front Front Rear Front... - Page 16 SPARE PARTS SPARE PARTS BB101 BB106 BB103 BB105 SH100 SW201 SW207 ID 2.5x7x0.2mm ID 5x7x0.2mm KM2.5x8 5x8x2.5 ID 5x12x0.3mm 5x11x4 8x14x4 KM2.5x12 10x15x4 SW101 SW106 SW102 EC101 SW302 SW306 SW303 SW304 SW316 2.5mm IM3x3 IM3x4 IM3x12 PM3x8 PM3x10 PM3x12 PM3x14 PM2x4 SW305 SW320...
- Page 17 Notes -------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- --------------------------------------------------------------------------- Tel: 0769-88030083 0769-88039076 Email contact：Eric@vkarracing.com Address: 302,Building A,Yiben Industrial park,No.124 BBK road ,Usha community, Chang'an town,Dongguan City,Guangdong Province,China 523860.
