Devolo Wireless Extender Specifications

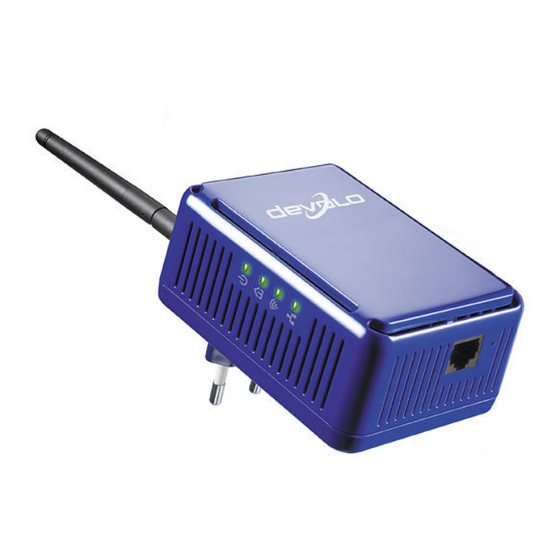

dLAN Wireless extender

Technical details

Standards
Protocols
Data transfer rate
Transfer method
Modulation
Range
Security
LEDs
LAN connections
Power consumption
Power supply
Temperature
Dimensions
Weight
Environment
Operating systems
Approvals
Modes
Other
devolo AG
Sonnenweg 11 • 52070 Aachen • Tel: +49 (0)241-182 79 0 • Fax: +49 (0)241-182 79 99 • www.devolo.de • info@devolo.de
Stand: 20.05.08
Wireless specification IEEE 802.11b,g
HomePlug standard 1.0 Turbo
Ethernet standard IEEE 802.3/x/u, Auto MDI /MDI-X
CSMA/CD
85 Mbps over powerline
54 Mbps via wireless
Asynchronous
OFDM-84 carrier (orthogonal frequency division multiplexing ) via
powerline
DSSS (Direct Sequence Spread Spectrum) via wireless – 802.11b/
OFDM (orthogonal frequency division multiplexing) – 802.11g
200m via powerline
Up to 300m via wireless
DES encryption via powerline
pro
WEP, WPA, WPA2 via wireless
4 LEDs:
Power
dLAN Link/Act
WLAN On/Act
ETH Link/Act
dLAN: EURO power plug
WLAN: Coaxial connector with removable, rotatable 2.4 GHz antenna
Ethernet: RJ45
6,5 W
Integrated supply from plug socket
Rated voltage: 100 – 240 V AC
Rated current: 0,11 A
Rated frequency: 50/60 Hz
Storage: -25 ° C – 70 ° C
Operation: 0 ° C – 40 ° C
95 x 70 x 47mm (height x width x depth)
432 g
10 – 90% humidity (non-condensing)
® ®
Windows XP, Windows
CE compliant in accordance with all technical requirements for all EU countries
and Switzerland:
EN 60950-1 :2001, EN 55022 :1998+A1 :2000 + A2 :2003 (Class B)
EN 55024 :1998+A1 :2001+A2 :2003, EN 61000-3-2 :2000,
EN 61000-3-3 :1995+A1 :2001
EN 300 328 V1.6.1, EN 301 489-1 V1.4.1, EN 301 489-17 V1.2.1
Access point with WEP, WPA, WPA2
Client (bridging mode) with WEP
HTML configuration interface
®
Vista, Linux , Mac OS-X, and others
