Page 1

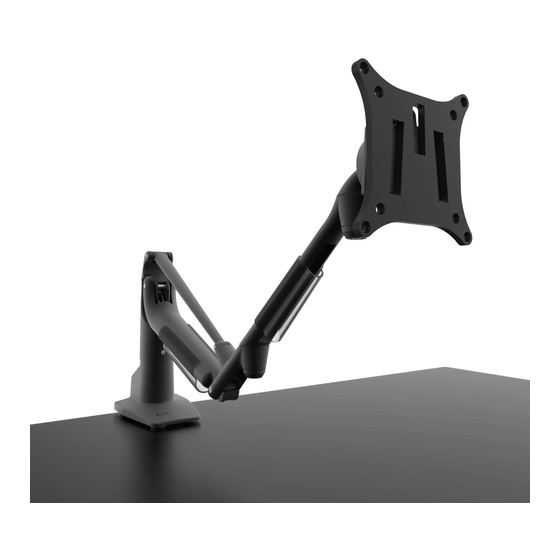

User Manual Manuel de l’utilisateur Manual del Usuario DMS1000 DESKTOP MONITOR MOUNT SUPPORT DE MONITEUR DE BUREAU MONTAJE PARA MONITOR DE ESCRITORIO 20.1” 510mm 3.3 - 16.5 LB 360° 0.4”− 2.0” (1.5 - 7.5 kg) 10mm − 50mm 10.6” 270mm Supporting your digital lifestyle ™...
Page 2
The maximum loading weight is 16.5 lb (7.5 kg). This mount is intended for use only with the maximum weights indicated. The surface you plan to affi x the DMS1000 mount to must be able to support more than 5 times the weight of the monitor and the mount combined.
Page 3
Supplied Parts and Hardware Matériel et les pièces fournies Partes suministradas y materiales D: M4 x 12 mm Desk Clamp Mounting / Montage Pince de Bureau / Abrazadera de Escritorio de Montaje E: M8 x 100 mm Grommet Mounting / Passe-Montage / Ojal de Montaje G: M8 x 160 mm Allen Keys / Clés Allen / Llaves Allen: I: 6 mm...
Page 4
Email: support@kantoliving.com Sans–Frais: US & Canada: 1-888-848-2643 | UK: +44 800086999 Si usted tiene algún problema o difi cultad al seguir estas instrucciones, póngase en contacto con Kanto directamente en: Email: support@kantoliving.com Gratis: US & Canada: 1-888-848-2643 | UK: +44 800086999...
Page 5
1. Mount Monitor Plate / Montez un Moniteur / Monte el Monitor...
Page 6
2A. Desk Clamp Mounting / 2B. Grommet Mounting / Montage Pince de Bureau / Passe-Montage / Abrazadera de Escritorio Ojal de Montaje de Montaje 0.4"~2.4" (10~60 mm) 0.4"~2.0" (10~50 mm) 0.4"~2.0" (10~50 mm)
Page 7
3. Place Arm on Base / Placez le bras sur la base / Coloque el brazo en la base...
Page 8
4. Place Monitor on Mount / Placez le moniteur sur le support / Coloque el monitor en el soporte click...
Page 9
5. Adjust Weight Range / Réglez la gamme de poids / Ajuste el rango de peso...
Page 10
6. Adjust Tilt and Swivel Tension / Réglez la tension d’inclinaison et de pivotement / Ajuste la inclinación y la tensión de giro...
Page 11
7. Cable Management / Gestion des câbles / Gestión de cables...
à: 5 ans pour les pièces et la main d’oeuvre Si le matériel tombe en panne du fait desdits défauts et que la notifi cation en est faite à Kanto ou un revendeur agrée sous 5 ans à partir de la date de livraison avec comme preuve la facture originale, Kanto réparera ou remplacera, à...
