Detecto PL400 Assembling Instructions

Assembly INSTRUCTIONS FOR PL-ICKIT

UNPACKING

Open package containing PL-ICKIT. You should have the following components:
ITEM PART NO.
1 0046-B502-08
2 6013-0058
3 6021-1234
4 0046-B504-08
5 6021-1547
6 6013-0020
7 2929-B251-08

TOOLS REQUIRED

3/16 Allen wrench
1/4 Allen wrench

ASSEMBLY

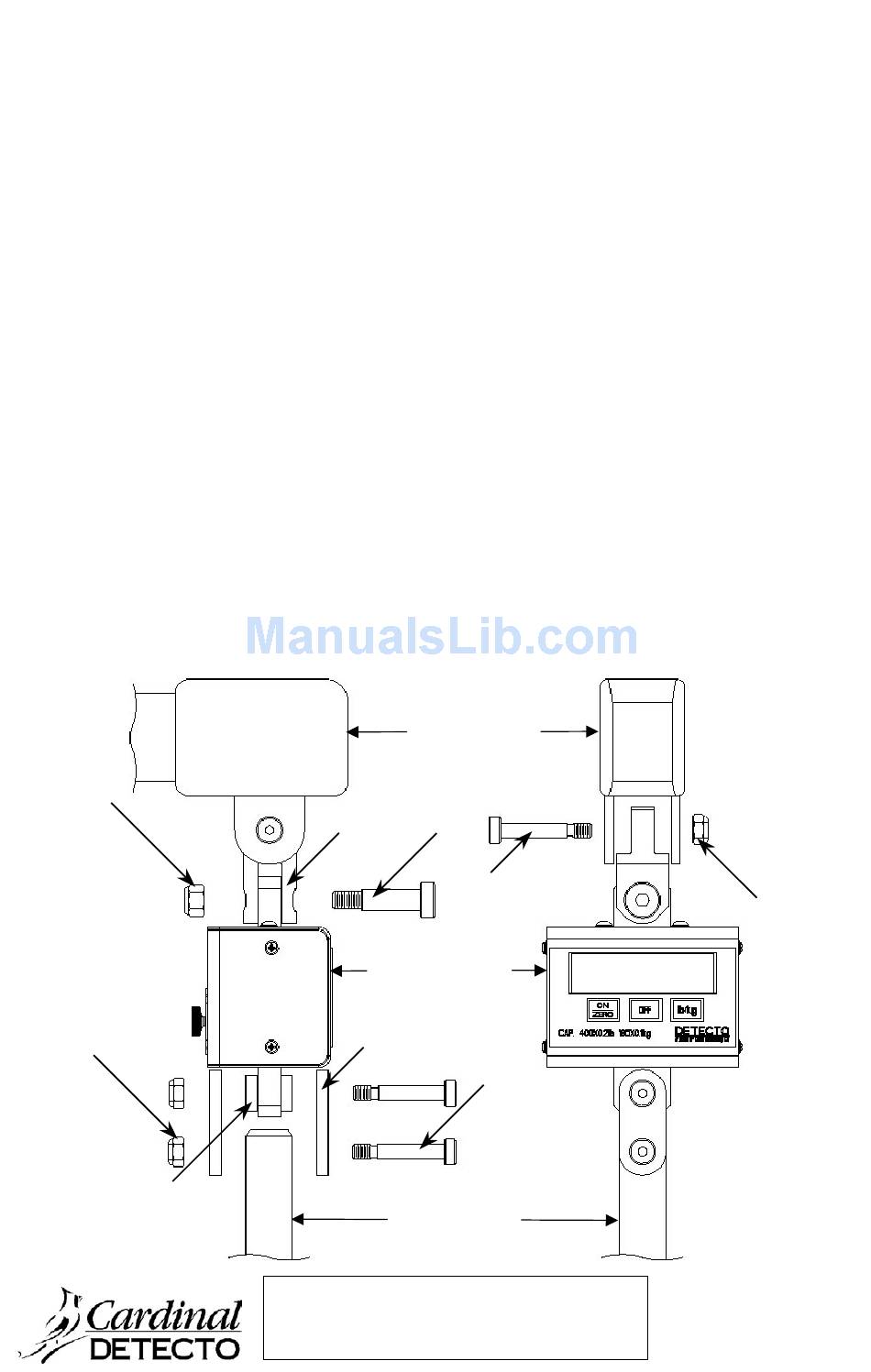

Referring to the figure below:
1. Attach the Connecting Links (1) to the PLXXX scale (Load Cell) using one of the Socket-Head
Shoulder Bolt (2), 2 Spacers (4) (1 on each side of the Load Cell) and 5/16-18 Elastic Nut (3).
Securely tighten using the 3/16 Allen wrench and 1/2 wrench.
2. Place the Yoke Pin into the Connecting Links (1) and then secure the Yoke Pin to the Connecting
Links (1) with a Socket-Head Shoulder Bolt (2) and 5/16-18 Elastic Nut (3). Securely tighten using
the 3/16 Allen wrench and 1/2 wrench.
3. Attach the Adapter (7) to the PLXXX scale using the .375-16 x .625 Socket-Head Shoulder screw
and .375-16 Elastic Nut (6). Securely tighten using the 1/4 Allen wrench and 9/16 wrench.
4. Attach the entire assembly to the patient lift arm using the remaining Socket-Head Shoulder Bolt (2)
and 5/16-18 Elastic Nut (3). Securely tighten using the 3/16 Allen wrench and 1/2 wrench.
6
2
4
DESCRIPTION
Stainless Steel Connecting Link
Stainless Steel 5/16-18 Elastic Stop Nut
Stainless Steel Socket-Head Shoulder Bolt
Stainless Steel Spacer
SS Socket-Head Shoulder Scw .375-16 x .625
Stainless Steel .375-16 Elastic Stop Nut
Adapter
1/2" open end, box end, or combination wrench
9/16" open end, box end, or combination wrench
Patient Lift Arm
7
PL-400 or PL-600
(Not Included)
1
(Not Included)
Do Not Over Tighten Mounting Hardware.
This will damage mounting brackets. Brackets must
pivot. The bolt threads must protrude past the elastic
stop nut to ensure that locking feature functions.
(Not Included)
5
3
3
Yoke Pin
QTY
2
3
3
2
1
1
1
2
0046-M509-O1 Rev A
10/04
