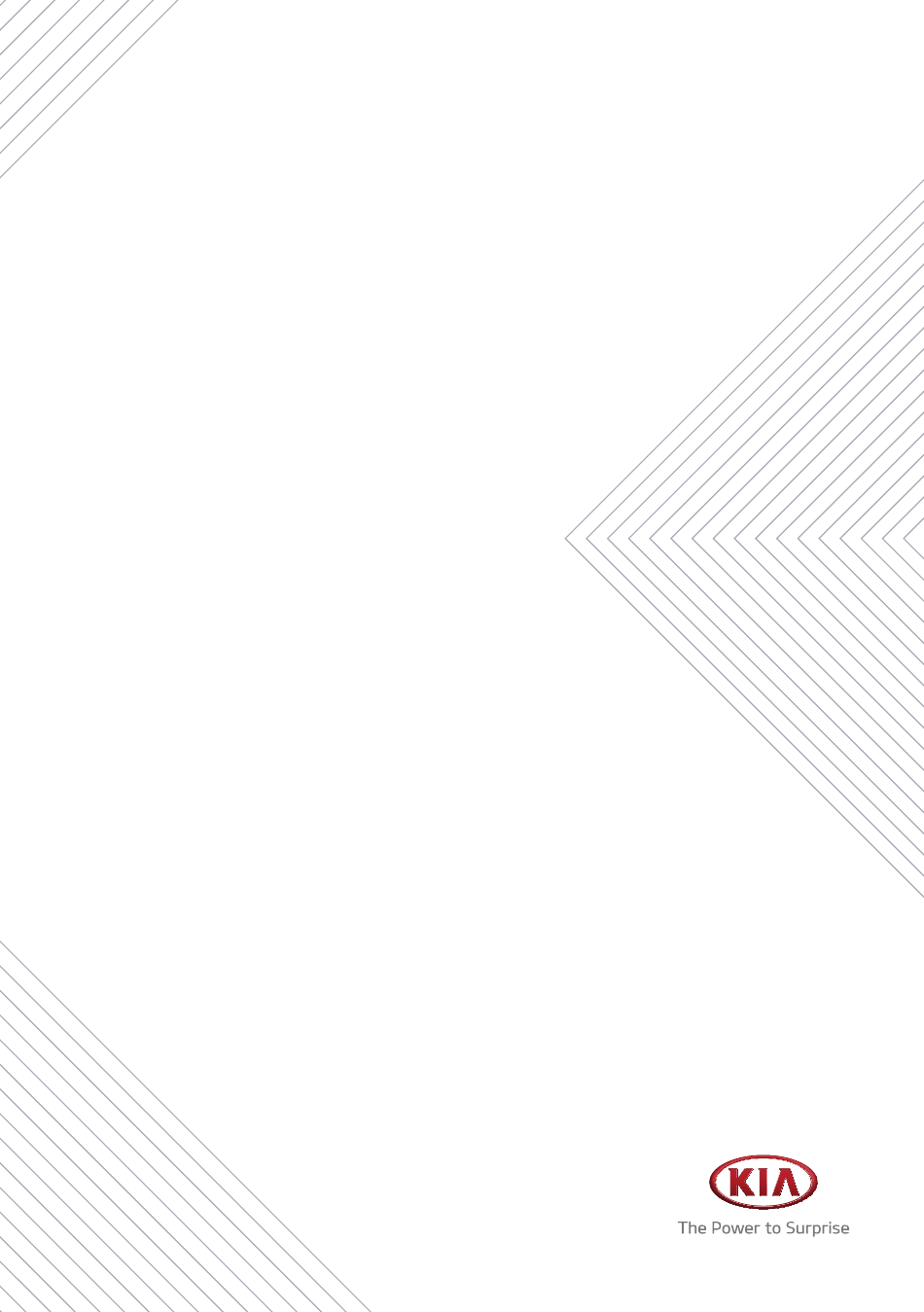

USER MANUAL
DISPLAY CAR SYSTEM
Model Names: DA333SXIG, ADB10SXIG, ADB12SXIG,
DA330SXIG, DA331SXIG, ADB11SXIG, ADB13SXIG,
DA332SXIG, ADB10SXGG, ADB10SXGN, ADB10SXGL,
ADB11SXGG, DA330SXGG, ADB10SXMG, ADB10SXFN,
DA332SXGG, DA333SXGG, ADB12SXGG, ADB13SXGG
