Summary of Contents for Jefferson JEFTIG1800230

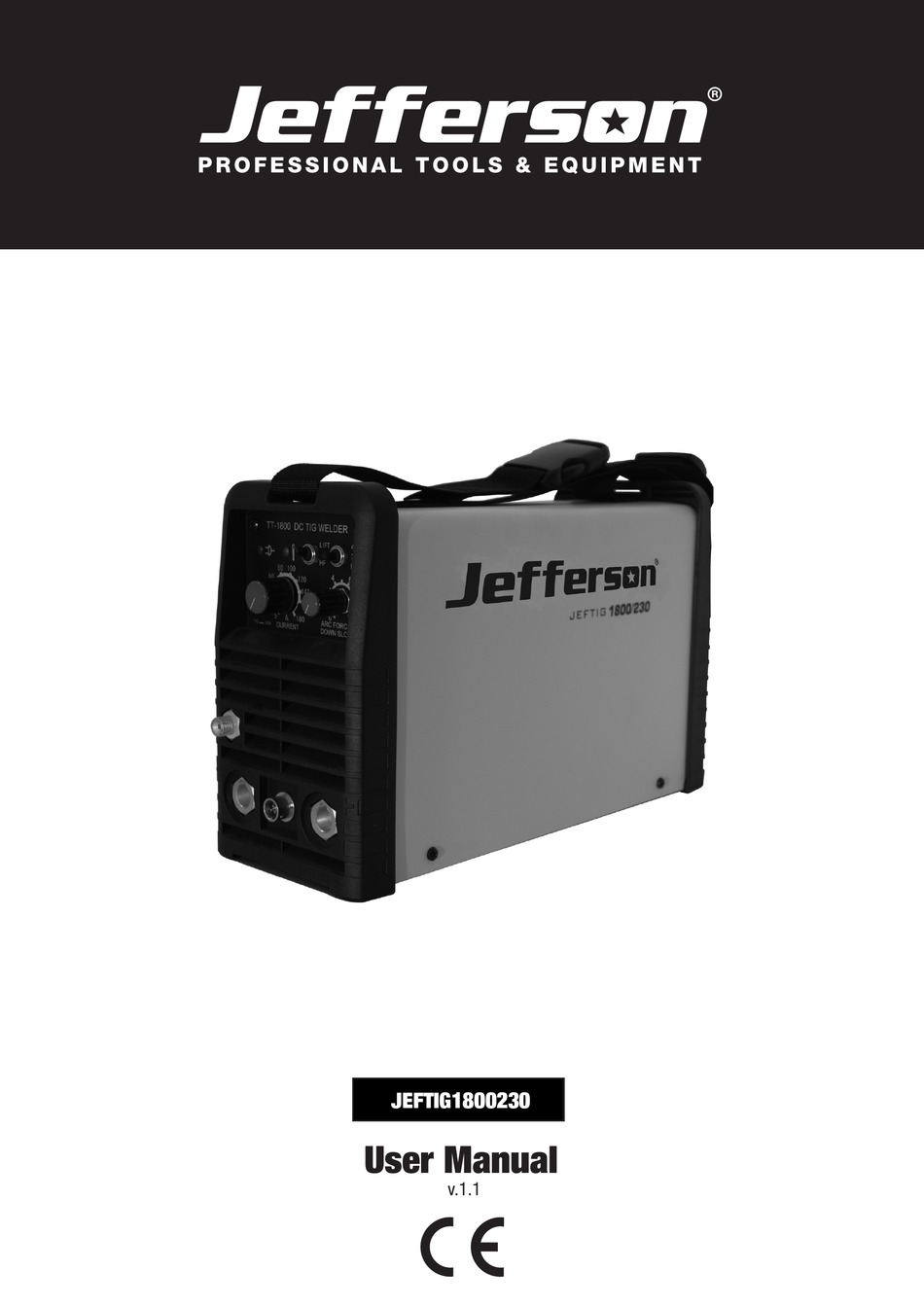

- Page 1 OLYMPUS JEFTIG1800230 User Manual v.1.1...
-
Page 2: Table Of Contents
CONTENT CONTENT §1 SAFETY ---------------------------------------------------------------------------------------------------------- 1 §1.1 S ------------------------------------------------------------------------------------- 1 IGNAL XPLANATION §1.2 A ----------------------------------------------------------------------------------- 1 ELDING AMAGE §1.3 T ----------------------------------------------- 4 HE KNOWLEDGE OF LECTRIC AND AGNETIC IELDS §2 SUMMARY ------------------------------------------------------------------------------------------------------ 5 § 2.1 B ------------------------------------------------------------------------------------- 5 RIEF NTRODUCTION §2.2 W --------------------------------------------------------------------------------------- 5 ORKING... -
Page 3: Safety
SAFETY §1 SAFETY §1.1 Signal Explanation The above signals mean warning! Notice! Running parts and getting an electric shock or thermal parts will take damage for your body or others. The corresponding notices are as follows. It is quite a safe operation after taking several necessary protection measures. - Page 4 SAFETY condition. Replace damaged insulation. Never dip the electrode in water for cooling. Never simultaneously touch electrically “hot” parts of electrode holders connected to two welders because voltage between the two can be the total of the open circuit voltage of both welders. ...
- Page 5 SAFETY engine parts and igniting. Do not spill fuel when filling tank. If fuel is spilled, wipe it up and do not start engine until fumes have been eliminated. WELDING SPARKS can cause fire or explosion. Remove fire hazards from the welding area. If this is not possible, cover them to prevent the welding sparks from starting a fire.
-
Page 6: The Knowledge Of Electric And Magnetic Fields
SAFETY §1.3 The knowledge of Electric and Magnetic Fields Electric current flowing through any conductor causes localized Electric and Magnetic Fields (EMF). The discuss on the effect of EMF is ongoing all the world. Up to now, no material evidences show that EMF may have effects on health. -
Page 7: Summary
SUMMARY §2 SUMMARY This operation manual is suitable for the models of TT-1600, 1800, 1800CEL,2000. § 2.1 Brief Introduction TT- serires welding machine is a general TIG arc welder which adopts the latest pulse width modulation (PWM) technology and insulated gate bipolar transistor (IGBT) power module, which can realize TIG operation and change work frequency to medium frequency so as to replace the traditional hulking work frequency transformer with the cabinet medium frequency transformer. -
Page 8: Volt-Ampere Characteristic
SUMMARY Medium Medium Single-phase AC Rectify Inverter frequency frequency Hall device 220/230V,50HZ transformer rectify Current positive- feedback control §2.3 Volt-Ampere Characteristic TT- serires welding machine has an excellent volt-ampere characteristic, whose graph is shown as the following figure. The relation between the conventional rated loading voltage U the conventional welding current I is as follows: ≤600A，U... -
Page 9: Installation And Adjustment
INSTALLATION AND ADJUSTMENT §3 Installation and Adjustment §3.1 Parameters Model TT-1600 TT-1800 TT-2000 TT-1800CEL Parameters Power source Single phase，220V/230V，AC，50Hz 31.5 Rated input current（A） Rated input power（KW） Power factor 0.75 Welding current 5-160 5-180 5-160 5-200 5-170 5-180 5-160 adjustment range（A） Max no-load voltage(V) Down Slope time（S）... -
Page 10: Polarity Connection
INSTALLATION AND ADJUSTMENT §3.3 Polarity Connection §3.3.1 MMA operation Front panel Welding holder electrode workpiece ● Choosing connection DCEN DCEN DCEP according to the arc stable burning condition. The different electrodes need different connection method. Please refer to the electrode manual. ●... - Page 11 INSTALLATION AND ADJUSTMENT ⚫ Those two pipe holder in packing list §5.3 are used to connect strength pipe with argon gas bottle and shield gas connector. ⚫ The control cable of torch switch consists of 2 wires, and the aero socket has 3 leads. Refer to §5.4 for detailed connection.
-
Page 12: Operation
OPERATION §4 Operation §4.1 Layout for the front panel and the real panel (take TT-1600 for an example) TT-1600 INVERTER DC TIG WELDER LIFT 60 80 ARC FORCE(MMA) CURRENT DOWN SLOPE(TIG) Power pilot lamp putting through the power source switch, the power pilot lamp is on; switching off the switch, the lamp is off. -
Page 13: Welding Current Adjustment
OPERATION Connector the welder’s negative polarity output. Aero socket is connected to torch switch control wire.（3 leads） 10 Connector The welder’s positive polarity output. 11 Power cable clip To fix power cable. Switch to “ON”, the welder is turned on, while switch to “OFF”, 12 Power source switch the welder is turned off. - Page 14 OPERATION I(A) Press the welding gun again Welding current Loose the welding gun Loose the welding gun Press the welding gun and hold it t(s) Introduction ： ⚫ 0： Press and hold the gun switch, Electromagnetic gas valve is turned on. The shielding gas stars to flow.
-
Page 15: Striking Arc Way For Mma
OPERATION ⚫ t1： Striking arc and output start current(the setting value is 5A). ⚫ t2～t3： Loosen the gun switch and the output current will drop according to the pre-set time. ⚫ t3： Stop arc and argon still keeps on; ⚫ t3～t4：... -
Page 16: Manipulation Of Electrode
OPERATION electrode electrode electrode upright workpiece workpiece touch workpiece 2～4mm Take the electrode upright The Electrode touch the workpiece Lift up for about 2-4mm ⚫ Lifting arc: take the electrode to scrape the workpiece for striking arc. But it may cause the arc scratch, so must to lift arc in the groove. -
Page 17: The Explanation Of Welding Quality
OPERATION §4.5.2 The explanation of welding quality The relation of welding area color & protect effect of stainless steel Welding area argent , golden blue red-grey grey black color Protect effect best better good worst The relation of welding area color & protect effect of Ti-alloy Welding area white powder of bright argent... - Page 18 OPERATION 151～200 6～13 6～8 11～13 7～10 201～300 8～13 8～9 13～16 8～15 Notice: the above parameters originate from《Welding Dictionary》P149, Volume 1 of Edition 2. Tungsten electrode shape and the welding current range (DCEP) tungsten sharpened of the angle of cone background electrode pulse current electrode...
-
Page 19: Electrode Selection
OPERATION Parameters of piping back sealing welding for mild steel （DCEP） Argon Welding Piping Tungsten Welding flow rate rate Gas nozzle Welding diameter electrode wire diameter/mm current/A voltage/V Φ/mm diameter/mm diameter/mm L·min cm·min 75～90 11～13 6～8 4～5 75～95 11～13 6～8 4～5 75～100 11～13... -
Page 20: Operation Notices
OPERATION ● Take care that there is sufficient ventilation during welding. There is at least 30cm free distance between the machine and wall. §4.7 Operation Notices ● Read §1 carefully before attempting to use this equipment. ● Connect the ground wire with the machine directly. ●... -
Page 21: Maintenance & Troubleshooting
MAINTENANCE & TROUBLESHOOTING §5 Maintenance & Troubleshooting §5.1 Maintenance In order to guarantee that arc welding machine works high-efficiently and in safety, it must be maintained regularly. Let customers understand the maintenance methods and means of arc welding machine more , enable customers to carry on simple examination and safeguarding by oneself, try one's best to reduce the fault rate and repair times of arc welding machine, so as to lengthen service life of arc welding machine .Maintenance items in detail are in the following table. -
Page 22: Troubleshooting
MAINTENANCE & TROUBLESHOOTING examination they should be regulated. The actual current value can be measured by the adjusted plier-type ampere meter. Measure the insulating impedance among the main circuit, PCB and case, if it below Yearly 1MΩ, insulation is thought to be damaged and need to change , and need to change or examination strengthen insulation. - Page 23 MAINTENANCE & TROUBLESHOOTING Troubles Reasons Solution There is oil or dust on the workpiece. Check and remove it. The distance between tungsten electrode and Reduce the distance (about 3mm). workpiece is too long. The distance between the discharger is too Adjust this distance (about 0.7mm).
-
Page 24: Electrical Principle Drawing
MAINTENANCE & TROUBLESHOOTING §5.3 Electrical principle drawing...
