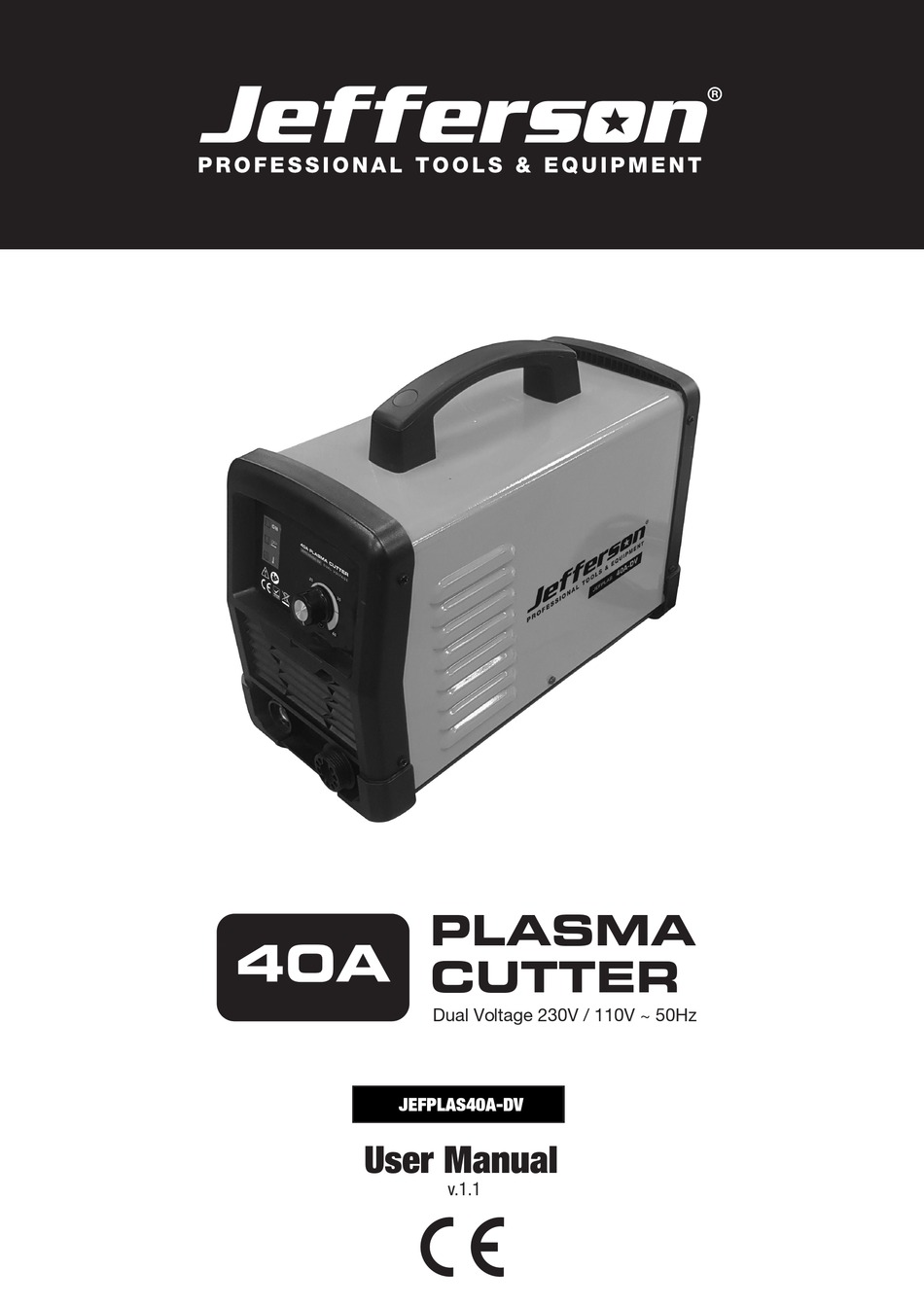

- Page 1 OLYMPUS PLASMA CUTTER Dual Voltage 230V / 110V ~ 50Hz JEFPLAS40A-DV User Manual v.1.1...
-
Page 3: Table Of Contents
ABOUT THIS DOCUMENT This manual has been compiled by Jefferson Tools and is an integrated part of the product with which it's enclosed and should be kept with it for future reference. Please read all of the information supplied in this User Manual before operating this product. -
Page 4: Specifications
USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV SPECIFICATIONS JEFPLAS40A-DV Model Number: Input Voltage ~ Frequency: 230V / 110V ~ 50Hz Maximum Amp Output: 40A (@230V) 20A (@110V) Cutting Capacity: 25mm Open Circuit Voltage: 300V 230V: 40A @ 30% • 110V: 20A @ 60%... -
Page 5: Safety Guidelines
Ensure that the plasma cutter is kept clean and well-maintained to ensure safe use and longer working life. • Use a qualified service engineer and contact your Jefferson Dealer for any advice required on the safe operation and maintenance of this equipment. - Page 6 USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV ELECTRICAL SAFETY Ensure that you check the equipment thoroughly to ensure it is safe and fit for purpose before each use. It is important that you inspect all plugs, sockets, power cables and electrical fittings for wear and damage and repair or replace any defective components.
- Page 7 USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV • If working on a metal wall, ceiling, etc, prevent ignition of combustibles on the other side by moving the objects to a safe location. If relocation of combustibles is not possible, designate someone to serve as a fire watch, equipped with a fire extinguisher, during the cutting process and for at least one half hour after the cutting is completed.
-
Page 8: Operation Guide
Ensure you are wearing the correct Personal Protection Equipment (PPE) before using this equipment. Contact your Jefferson dealer for advice on protection and equipment requirements. A full range of safety equipment is available with full details on our website and latest catalogue. - Page 9 USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV PLASMA CUTTING • Mount the metal to be cut to the metal welding/cutting table. It should be mounted so that the cutting debris falls onto a non-flammable or cement floor.
-
Page 10: Maintenance
JEFPLAS40A-DV MAINTENANCE Ensure all repair and replacement of parts is carried out by a qualified technician using only Jefferson approved replacement parts. A list spare parts and a parts diagram are supplied later in this document. Contact your nearest Jefferson dealer for any information or advice required. -
Page 11: Troubleshooting
USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV TROUBLESHOOTING Symptom Possible Causes Solution All LEDs are OFF when 1. No electrical supply to the Check supply voltage. equipment. equipment Check / replace power cable fuse. Verify that circuit breaker hasn’t been tripped. -
Page 12: Circuit / Wiring Diagram
USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV CIRCUIT / WIRING DIAGRAM www.jeffersontools.com... -
Page 13: Environmental Protection
USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV ENVIRONMENTAL PROTECTION Recycle any packaging and unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. -
Page 14: Parts List
USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV PARTS DIAGRAM www.jeffersontools.com... - Page 15 USER MANUAL v1.1 40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV PARTS LIST Description Quantity Front Plastic Cover Knob Tube Connector Plasma Cutter Connector Tube Connector Cassette Mechanism Holder Tube Connector Solenoid Valve Tube Connector Pressure Reducing Valve Inductor...
-
Page 16: Limited Warranty Statement
Jefferson will assume both the parts and labour expense of correcting defects during the stated warranty periods below. All warranty periods start from the date of purchase from an authorised Jefferson dealer. If proof of purchase is unavailable from the end user, then the date of purchase will be deemed to be 3 months after the initial sale to the distributor. - Page 17 Date of purchase A Warranty Returns form will be sent to you for completion and return by post or fax, together with details of your nearest authorised Jefferson repair centre. On receipt of this form Jefferson will arrange to collect the equipment from you at the earliest convenience.
-
Page 18: Eu Declaration Of Conformity
40A Plasma Cutter - Dual Voltage ~ 50Hz JEFPLAS40A-DV EU DECLARATION OF CONFORMITY We, Jefferson Professional Tools & Equipment, as the authorised European Community representative of the manufacturer, declare that the following equipment conforms to the requirements of the following: Directive / Standard / Regulation... - Page 20 Before attempting to use this product please read all the safety precautions and operating instructions outlined in this manual to reduce the risk of fire, electric shock or personal injury. Jefferson Tools, Herons Way, Chester Business Park, Chester, United Kingdom, CH4 9QR Tel.
