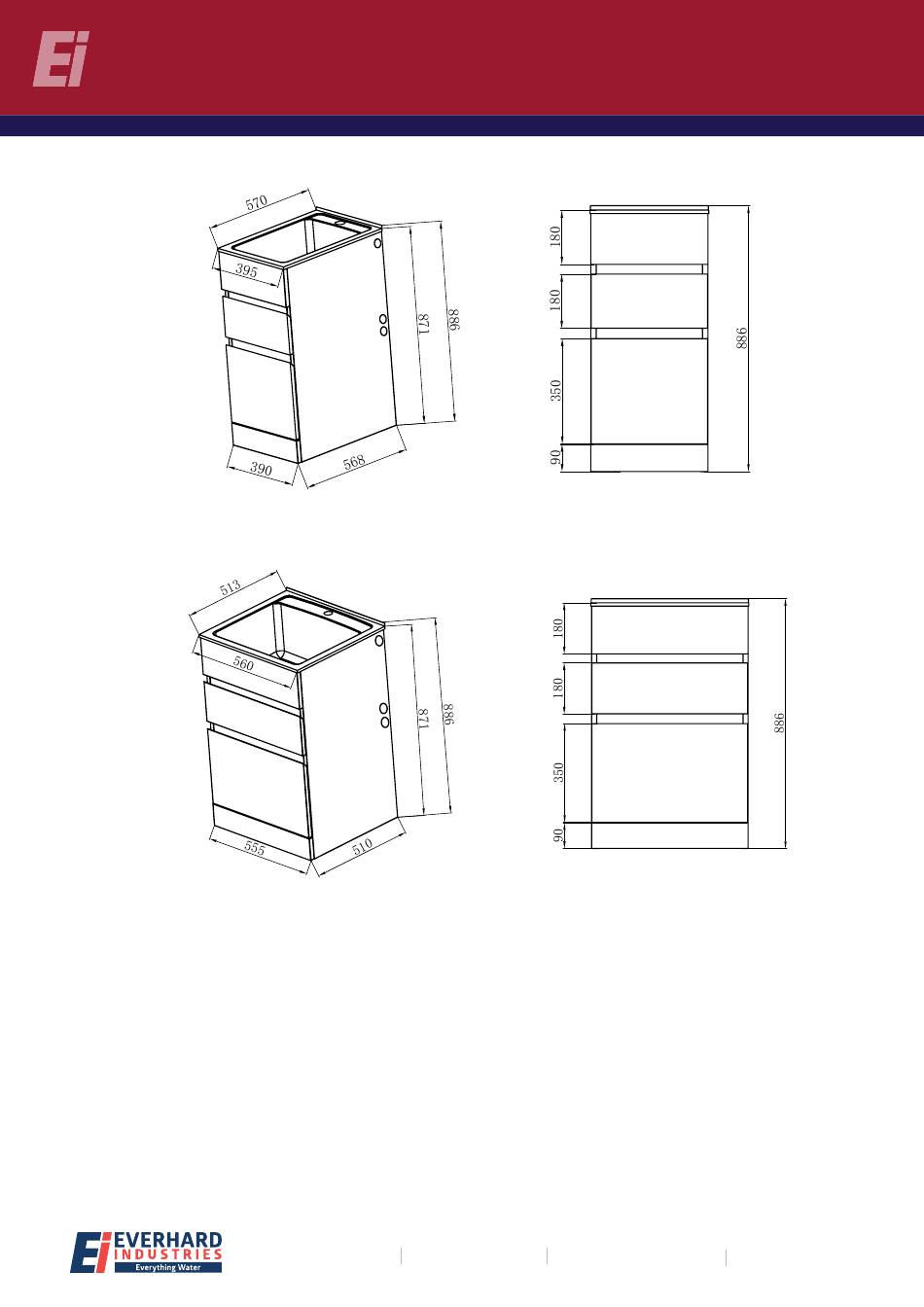

NUGLEAM 35L & 45L DRAWER SYSTEM LAUNDRY UNIT
35L | EI code: 71S02D
DRAWER LOAD
CAPACITY:
TOP DRAWER:
Max 10kg
BOTTOM DRAWER:
Max 25kg
45L | EI code: 71S01D
DRAWER LOAD
CAPACITY:
TOP DRAWER:
Max 10kg
BOTTOM DRAWER:
Max 25kg

CONTENTS LIST

1.
LAUNDRY DRAWER UNIT
2.
LAUNDRY SINK
3.
BASKET WASTE
4.
WASTE JUNCTION
5.
BLANKING SIDE PLUGS
6.
OPEN SIDE PLUGS
ALL OTHER PLUMBING FITTINGS ARE NOT INCLUDED
everhard.com.au | 131 926
X1
X1
X1
X1
X3
X3
Interior
Drainage
Products
Solutions
INSTALLATION & CARE INSTRUCTIONS
Environmental
Civil &
Commercial
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NUGLEAM 35L and is the answer not in the manual?

Questions and answers

Summary of Contents for Everhard Industries NUGLEAM 35L

  • Page 1 NUGLEAM 35L & 45L DRAWER SYSTEM LAUNDRY UNIT INSTALLATION & CARE INSTRUCTIONS 35L | EI code: 71S02D DRAWER LOAD CAPACITY: TOP DRAWER: Max 10kg BOTTOM DRAWER: Max 25kg 45L | EI code: 71S01D DRAWER LOAD CAPACITY: TOP DRAWER: Max 10kg...
  • Page 2 EVERHARD INDUSTRIES ABN: 41 009 690 859 everhard.com.au | 131 926 Head Office: 454 Newman Rd, Geebung, QLD, 4034 ** PRODUCT SHOULD BE INSTALLED BY A LICENSED PLUMBER ** INSTALLING YOUR LAUNDRY UNIT Carefully lift product out of the carton.
  • Page 3 EVERHARD INDUSTRIES ABN: 41 009 690 859 everhard.com.au | 131 926 Head Office: 454 Newman Rd, Geebung, QLD, 4034 CONNECTING THE LAUNDRY SINK TO THE DRAIN Locate the current waste installed in your home, this could be coming through the floor or through the wall.
  • Page 4 EVERHARD INDUSTRIES ABN: 41 009 690 859 everhard.com.au | 131 926 Head Office: 454 Newman Rd, Geebung, QLD, 4034 INSERTING DRAWERS Push the runner back in place, keep the ball bearing always at the front part of the runner (see below photo 1).
  • Page 5 CARING FOR STAINLESS STEEL To assist in maintaining and extending the life of your new Everhard Stainless Steel sink we have compiled a list of important tips on how we recommend you look after it ROUTINE JULY Clean your stainless steel bowl or sink on a regular basis using bicarb soda or stainless steel cleaner. This will improve the look of your stainless steel bowl or sink.
