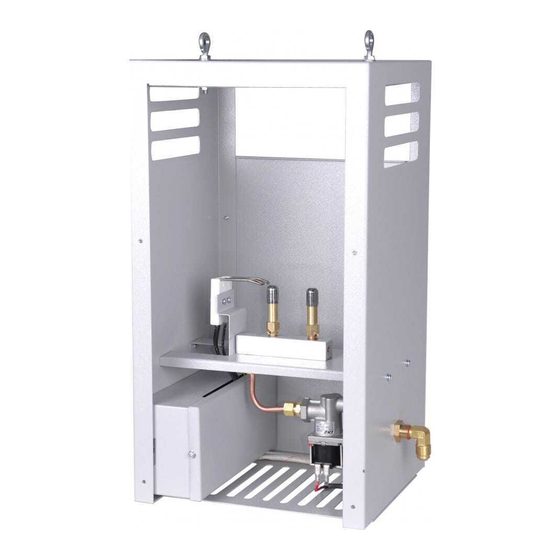

GEN-2
2 Burner CO
Generator (LP or NG)
Specs
1
2
3-4
5-6
7
8
8
Warnings
9
Q & A
10-11
2

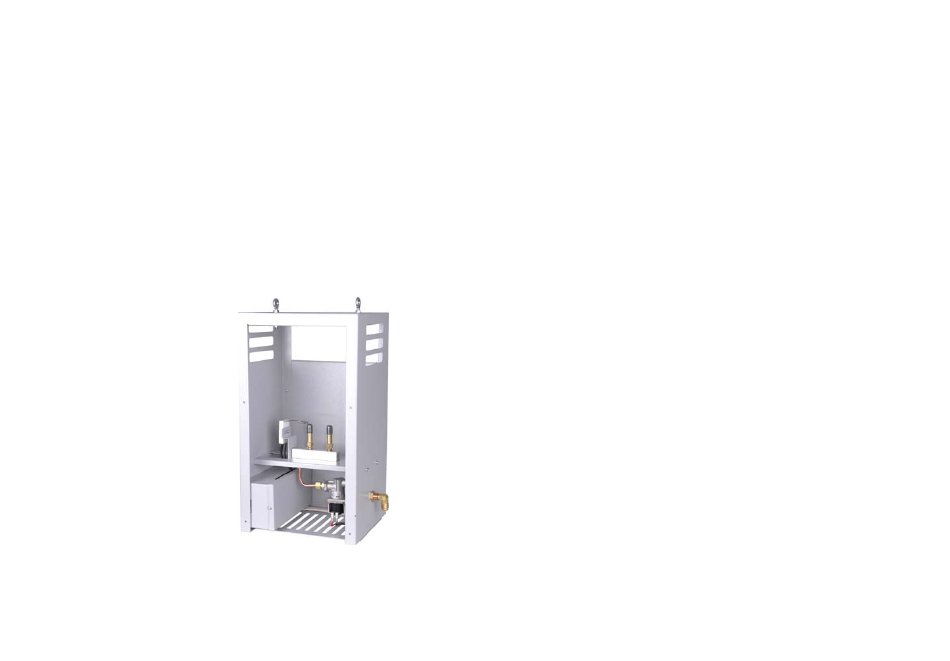

Page 1
Specs
Power Requirements
Variable Output
BTU Rating (variable)
Cubic Ft CO2 per hour
Natural Gas (NG) Pressure
Propane Gas (LP) Pressure
Weight
Dimensions
Failure to do so could result in personal injury and /
or property damage.
GEN-2
400 ma @ 24VDC
1 or 2 Burners
LP 2,263 - 4,526
NG 2,767 - 5,534
3 - 6 SCFH
4.5" WC / 1.15 kpa
11" WC / 2.8 kpa
18 lbs
9" x 10" x 18"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SuperPro GEN-2
Summary of Contents for SuperPro GEN-2
- Page 1 Page 1 GEN-2 Specs Power Requirements 400 ma @ 24VDC Variable Output 1 or 2 Burners BTU Rating (variable) LP 2,263 - 4,526 GEN-2 NG 2,767 - 5,534 Cubic Ft CO2 per hour 3 - 6 SCFH Natural Gas (NG) Pressure 4.5”...
- Page 2 Bend the S hooks so that they are secure. long as the Propane gas pressure has been verified Verify the GEN-2 is hanging level. The GEN-2 has a safety to be regulated at 11” WC feature, the “tip over” switch, which will turn off the burners if it tips over or falls.
- Page 3 The ignition module and firing sequence is activated by the Check and confirm that the gas connections are connected main power switch located on the side of the GEN-2. The properly. generator has power and is in operation if the green “Power On”...
- Page 4 Variable Output The unit should fire before 5 attempts however, after 5 The GEN-2 CO2 output can be modified by the user. To unsuccessful attempts, the module will lock itself out and the reduce heat in a small growing area, the burner on the left side LED light next to “Lock Out (error)”...
- Page 5 Should there be a gas smell in the area? NO. Turn off the For safer operation GEN-2 has an Electronic Ignition gas supply immediately, Do not turn on any electrical devices. Control Module that eliminates the “open” pilot flame. The Ventilate the area by opening vents, doors, or windows.
- Page 6 Should the GEN-2 be buzzing and / or sparking? Yes, when the unit is firing you will hear “sparking” sounds. It will attempt this up to 5 times, before going into lock out mode.
- Page 7 Page 12 GEN-2 IMPORTANT MESSAGE Read and understand this instruction manual BEFORE attempting to operate this product. Failure to do so could result in personal injury and / or property damage. made in china...
