- Page 1 English Hydraulic side shift adapter 2018 1 Operator's Manual for Attachment Hydraulic side shift adapter Product number: A37235 www.avanttecno.com A433750 2018 1 EN 2017-...
- Page 2 Hydraulic side shift adapter 2018 1...
-
Page 3: Table Of Contents
Hydraulic side shift adapter 2018 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 4. TECHNICAL SPECIFICATIONS ......................11 Safety labels and main components of the attachment.................. 11 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (30) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use

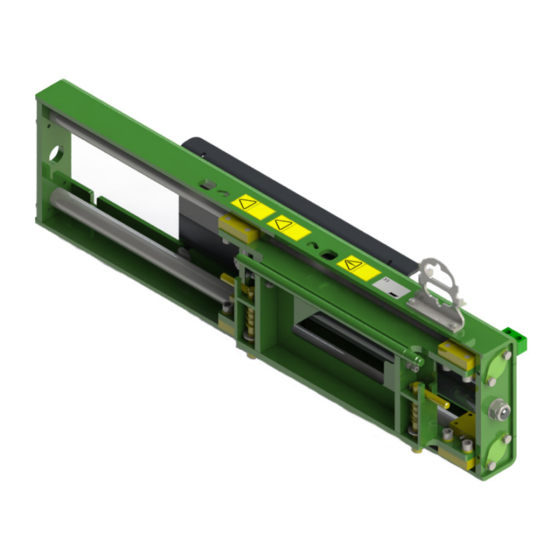

2. Designed purpose of use The AVANT Hydraulic side shift adapter is an attachment that is suitable for use with AVANT multi purpose loaders that are shown in Table 1. This adapter is intended for applications where an attachment needs to be shifted horizontally in order to get the job done. -
Page 7: Safety Instructions For Using The Attachment
7 (30) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (30) Never leave the driver’s seat when the auxiliary hydraulics control lever is locked on. The attachment mounted on the side shift adapter may move, if the auxiliary hydraulics control lever of the loader is locked on and there is a horizontally uneven load on the attachment.
- Page 9 9 (30) Risk of crushing - Never allow anyone to get under a lifted attachment or loader boom. Keep in mind that the loader boom can be lowered or tilted even if the engine has WARNING been shut down (crushing hazard). The loader is not intended to be left to keep a load elevated for longer periods.
- Page 10 10 (30) Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...
-
Page 11: Technical Specifications
10-20 l/min Maximum input of hydraulic energy: 30 l/min 20 MPa (200 Bar) Compatible Avant loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 12 Operate the attachment only from the driver’s seat. 4 A423297 Attachment identification plate Table 4 - Hydraulic side shift adapter - Main components Avant quick coupling plate, for coupling this attachment to Avant loaders Attachment coupling plate couple...
-
Page 13: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: 5.1.1 Coupling the side shift adapter to the loader Step 1: ... - Page 14 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.
-
Page 15: Mounting Attachment To The Side Shift Adapter
To use a hydraulically operated attachment that is connected to the side shift adapter, the multiconnector of the side shift adapter must be replaced with conventional type hydraulic couplings. Contact your Avant dealer or service point for more information. Risk of movement of the attachment and ejection of hydraulic oil - Never connect... - Page 16 16 (30) Connecting the multiconnector system: 1. Align the pins of the attachment connector with corresponding holes of the loader connector. The multiconnector will not connect if the attachment connector is upside down. 2. Connect and lock the multiconnector by turning the lever towards the loader.
-
Page 17: Instructions For Use
17 (30) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 18: Checks Before Use
18 (30) 6.1 Checks before use Drive carefully on uneven terrain and note the effect of heavy load at the front and side of the loader to the stability and handling of the loader. Practice the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar ... -
Page 19: Using The Side Shift Adapter
19 (30) 6.2 Using the side shift adapter Before starting the attachment: Set and adjust the side shift adapter to correct operating position. Move the auxiliary hydraulics control lever of the loader towards its locking position shift attachment to right (as seen from the driver's seat of the loader). -
Page 20: Maximum Load
20 (30) 6.3 Maximum load Maximum load for the side shift adapter is 1000 kg, and the side shift adapter must be removed when handling heavier pallets or large buckets. Always refer to the operator's manual of the loader for the safe load of the loader in different operating conditions. -
Page 21: Horizontal Adjustment
21 (30) 6.4 Horizontal adjustment It is possible to set the side shift adapter so that the quick coupling plate shifts the attachments 500 mm to the left or to the right. After the position is set as illustrated in the figures below, it possible to shift the attachment only to the right, as seen from the driver's seat of the loader. -
Page 22: Auxiliary Hydraulics Outlet (Optional Extra For Loaders)
22 (30) 6.5 Auxiliary hydraulics outlet (optional extra for loaders) The side shift adapter can also be used with an attachment with hydraulic functions, in which case the loader must be equipped with an extra double acting hydraulic outlet at the front. First, replace the faster multiconnector of the attachment with conventional quick couplings. -
Page 23: Transport Position
23 (30) 6.7 Transport position Keep the loader stable. Always transport the attachment as low and close to the ground as possible. Also keep the side shift adapter in straight (middle) position during transport drive, as shown in adjacent figure. -
Page 24: Uncoupling And Storage
24 (30) 6.8 Uncoupling and storage Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. Avoid leaving the attachment laying directly on the ground. Place it on blocks of wood or on a pallet, for example. -
Page 25: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely. -
Page 26: Cleaning The Attachment
26 (30) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 27: Warranty Terms
27 (30) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 28 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen sivusiirtoadapteri; Avant-kuormaajan työlaite Hydraulisk Hydraulisk sidoförskjutningsadapter; arbetsredskap för Avant lastare A37235 Hydraulic side shift adapter; attachment for Avant loaders 26.6.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
