Installation manual
Attachment control switch pack
Electric connectors for multi connector system
Electric socket adapters
Please read these instructions carefully before using or
assembling the equipment and follow all instructions.
For more information or assistance contact your nearest Avant
dealer or service point.
Attachment control switch pack 2016 2
A36869
A36679
Advertisement
Table of Contents
Related Manuals for AVANT A36869
Summary of Contents for AVANT A36869
- Page 1 Electric connectors for multi connector system Electric socket adapters A36869 A36679 Please read these instructions carefully before using or assembling the equipment and follow all instructions. For more information or assistance contact your nearest Avant dealer or service point. www.avanttecno.com...
- Page 2 Electric socket is integrated in the multi connector on all loaders equipped with attachment control switch pack from January 1 2016. The socket can be retrofitted to the loader multi connector with adapter A36869. This manual will also show how to fit the adapter to the loader connector. 1.1 In this manual This manual will show: ...
- Page 3 However, it is recommended to install the adapter A36869 to the loader connector to have full advantage of the quick coupling system.
- Page 4 4 (8) 2. Safety The following warning symbols are used throughout this manual to indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: This safety symbol refers to important safety information in this manual. It warns of an immediate hazard that could cause serious personal injury.

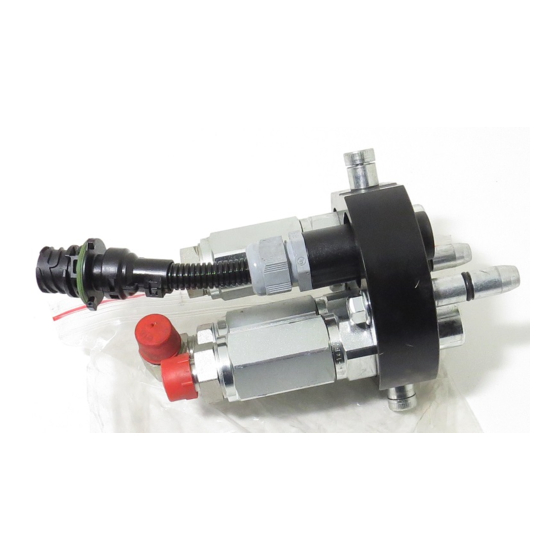

- Page 5 5 (8) 3. Multi connector system with electric connection 3.1 Fitting the electric connector to attachment multi connector If the loader is equipped with the electric socket integrated into the multi connector, the attachment connector can be fitted with adapter A36679. The adapter A36679 is equipped with all attachments with electric functions, and which are delivered after January 1 2016.
- Page 6 A36869 can be easily fitted to the loader multi connector. The following instrucions show how to integrate the separate electric socket next to the multi connector into the multi connector system.
- Page 7 7 (8) 4. Technical information Connection of wires, seen from the wire pin side of the connector.
