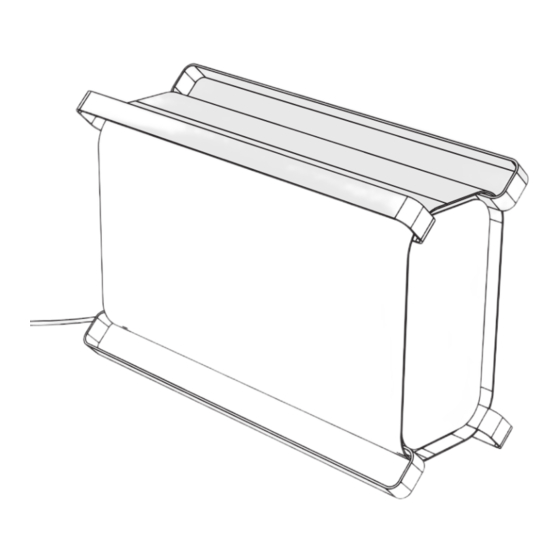

- Page 1 Instructions manual Ozone generator Lion model...
-
Page 2: Table Of Contents
Index 1. Introduction ................1.1. Operating principle ..................1.2. Manufacturer ....................1.3 Technical specifications ................2. Product operation ..............2.1. Manual operation ..................3. Machine components ............3.1. Button panel...................... 3.2 Active carbon filter ..................3.3 Air circulation ....................3.4 Ozone generator..................... 3.5 Ozone gauge sensor ................... -
Page 3: Introduction
1.1 Operating principle According to the WHO, ozone is the most efficient disinfectant for all types of microorganisms.It is the most active form of oxygen, capable of deactivating viruses, bacteria, parasites, fungi,molds, spores and many other microorganisms by oxidation in a few seconds. Besides, it acts at a lower concentration and with a shorter contact time than other disinfectants. -
Page 4: Technical Specifications
1.3 Technical specifications Ozone output Flow 2250 l/min Ozone generator Treated zone Corona discharge 0-300 Voltage +- 10% Weight Power Dimensions 390x250x595 Estandard programs: Rooms up to 30m2 Rooms up to 150m2 Rooms up to 300m2 Rooms up to 80m2 Pr.1 –... -
Page 5: Product Operation
2. Product operation 2.1. Manual operation Connect the machine to the electrical current (220V AC, 50Hz). Always make sure that the equipment is on a stable surface before plugging in the connection cable. Preferably place in the center of the cabin or room to be disinfected. - Page 6 Program 1 Specific program for rooms up to 30m2. Cycle time: 82 minutes. During ozonation process, the GREEN LED light no. 1 will flash quickly. During the oxygenationprocess the flashing will be slow. When finished, the BLUE led will light up flashing. Air out the room after disinfection Program 2 Specific program for rooms up to 80m2.
- Page 7 Program 3 Specific program for rooms up to 150 m2. Cycle time: 280 minutes. During ozonation process, the GREEN LED lights no. 1, 2 and 3 will flash quickly. During theoxygenation process the flashing will be slow. When finished, the BLUE led will light up flashing. Air out the room after disinfection.
-
Page 8: Machine Components
3. Machine components 3.1 Button panel Led indicators for the selected program PROG Pogram start button Program selection button 3.2 Active carbon filter This ozone generator has an active carbon filter. This filter helps to break the ozone molecules (O3) once the disinfection process has been completed, to refill the room with oxygen (O2) in a faster way. -
Page 9: Ozone Generator
3.4 Ozone generator The ozone generator used provides an ozone output of 10 g/h and works by corona effect. Ozone is produced from an electrical discharge, commonly known as a spark. The spark splits the oxygen molecule (O2) found in ambient air into elemental oxygen (O). -
Page 10: Maintenance
4.Maintenance Clean the device with non-abrasive products. Always with a damp cloth, never with a spray bottle, to prevent the electronic components from getting wet and causing internal short circuits.. Do not force the equipment and follow the instructions in the manual to work safely. -
Page 11: Safety Recommendations
6. Safety recommendations. Indications and warnings. 6.1. Specific warnings This ozone generator reaches levels above 100 µg / m3 (0.05 ppm), which is the maximum value recommended by the WHO and therefore, according to the UNE 400-201-94 standard, it is considered Type C. It cannot be used in the presence of people, animals and / or living beings.
