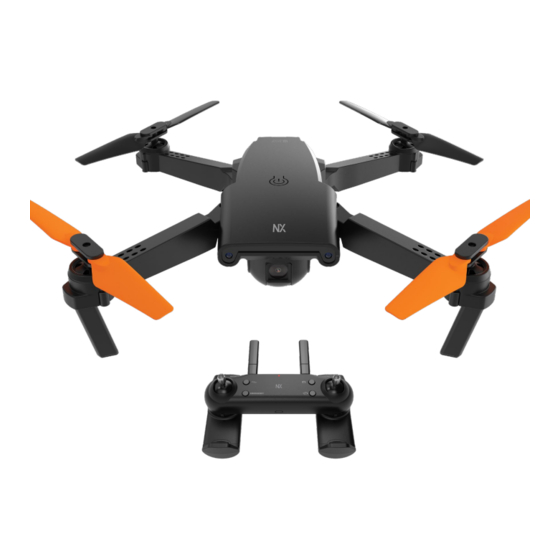

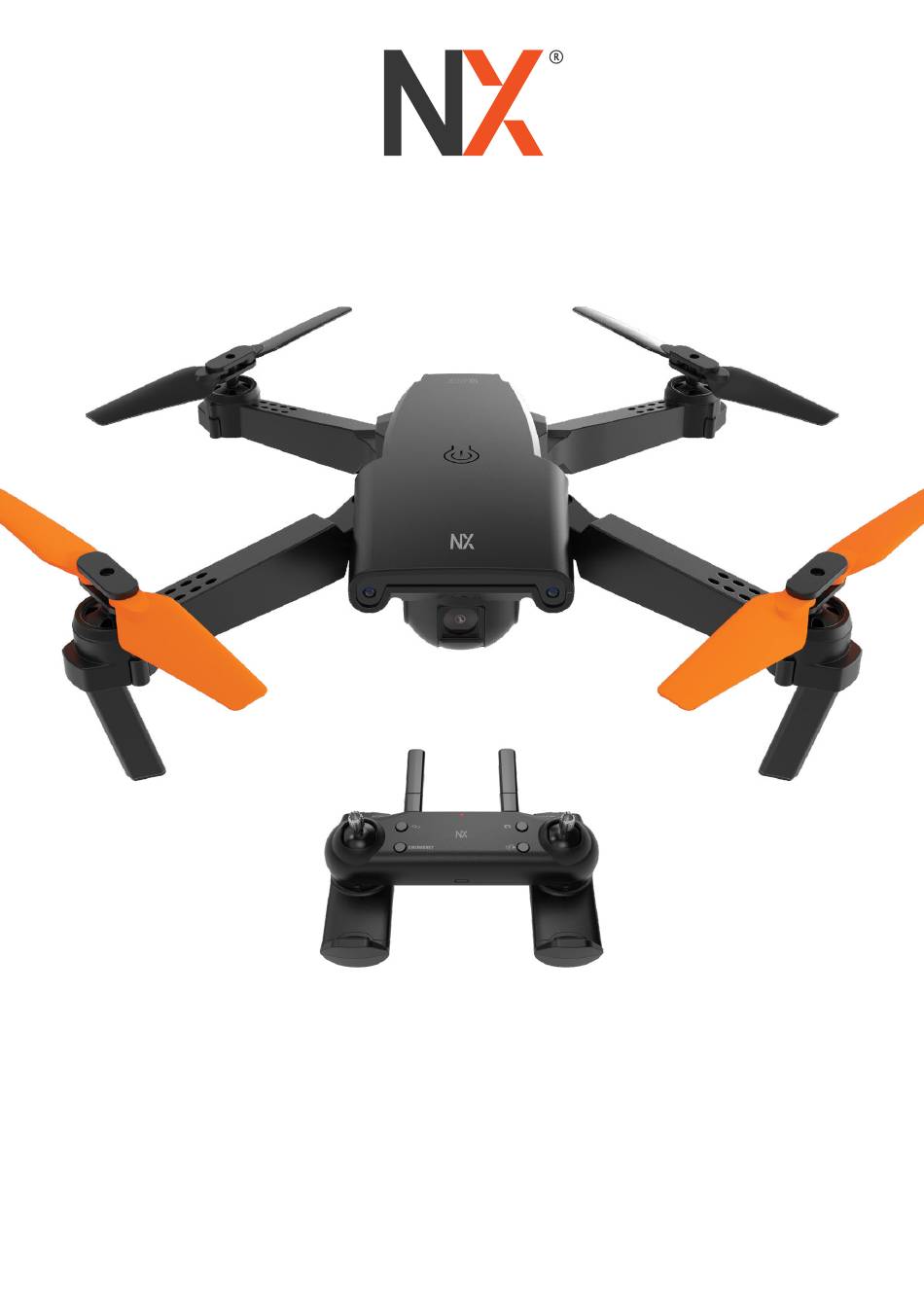

- Page 1 ENGINEERED FOR THE NEXT GENERATION™ HD DRONE WITH FOLDABLE DESIGN & 100M RANGE USER MANUAL NX-8100F...
-
Page 3: Table Of Contents
2.0 PRODUCT CONTENTS ................3 PRODUCT OVERVIEW ..................3 CONTROLLER OVERVIEW ................4 3.0 BATTERY SAFETY ..................5 4.0 SETTING UP YOUR NX-8100F ..............7 INSTALLING THE BATTERY ................7 INSTALLING A MICRO SD CARD ..............7 REMOVING A MICRO SD CARD ..............7 REPLACING ROTOR BLADES .................8 INSTALLING ROTOR GUARDS ...............8... -
Page 4: Welcome
• For information outside Australia please visit the website of your local aviation authority. • Do not attempt to modify the NX Drone or any of its components in any way, doing so will void your warranty and may affect the operation of the drone. -
Page 5: Product Contents
PRODUCT CONTENTS 1. NX Drone 5. USB AC Wall Charger 2. Remote Control 6. USB Charging Cable 3. Rotor Blades x 4 7. Screw Driver 4. Rotor Guards x 4 8. User Manual PRODUCT OVERVIEW 1. Camera 2. Rotor Blades 3. -
Page 6: Controller Overview
CONTROLLER OVERVIEW 1. Speed 7. Photo 2. Reverse 8. Video 3. Left Control Stick (Pulse / 9. Headless Mode Descend, Yaw Left / Right) 10. 360 Flip 4. One Key Take Off / Landing 11. LED Power ON 5. Emergency Stop 12. -
Page 7: 3.0 Battery Safety
When handled incorrectly, Lithium polymer batteries can be dangerous and can potentially harm and do damage to persons or property. NX does not accept any liability for damage to persons or property if the battery is not correctly charged, stored or protected. - Page 8 If you have just finished flying your NX Drone, please allow the battery to cool down for at least 30 minutes before recharging. When the NX Drone battery has finished charging it is advised that the battery is removed from the charger as soon as possible.
-
Page 9: Setting Up Your Nx-8100F
INSTALLING A MICRO SD CARD If you want to record your flights using the NX Drone's built in camera it is required that you install a Micro SD Card (not included). It is recommended that you use a class 10 Micro SD Card, up to 32 GB. -
Page 10: Replacing Rotor Blades
REPLACING ROTOR BLADES If your rotor blades become damaged or the NX Drone drone is no longer flying straight, the rotor blades may need to be replaced. To replace the NX Drone's rotor blades please follow the directions below. There are two types of rotor blades included with the NX Drone, A blades (clockwise rotation) and B blades (counter clockwise rotation). -
Page 11: Remote Control
• Closing the right controller arm will turn off the controller. FLIGHT SAFETY Before flying your NX Drone make sure that you are in a safe setting. CASA restrictions regarding flying drones require the drone to be no closer than 5.5kms from any airport or airfield while flying. -
Page 12: Syncing Your Nx Drone
SYNCING YOUR NX DRONE 1. Press the ON/OFF button on the top of the drone to turn the drone on, the LED light of drone will blink a blue colour (front) and a red colour (rear). 2. Extend the arms of the controller downwards, the controller will make a beeping sound and the LED indicator will Power On the controller. -
Page 13: Flying Your Nx Drone
You can only use this trim function when drone is airborne. 1. Make sure that the Remote Control and NX Drone are switched on and correctly paired. 2. With the right control stick centered, push down on it, once you hear the stick button click, release it. -
Page 14: Speed Mode
SPEED MODE The NX Drone has 3 speed modes . To cycle through the Speed Modes, use the speed button on the top left of the controller. -
Page 15: Camera / Video Features
CAMERA / VIDEO FEATURES VIEWING PHOTOS AND VIDEOS To view the recorded footage and videos you will need to connect the Micro SD card to your computer via either a USB Micro SD card reader or via an SD card converter if your computer has an SD card reader. (Not provided) CAMERA MODE 1. -
Page 16: Headless Mode
HEADLESS MODE 1. Press the headless mode button on the controller (shown in the diagram to the right). The remote control will start beeping once indicating that headless mode has been enabled. To stop headless mode, press the headless mode button again; the controller will beep again. -
Page 17: Emergency / Stop
DRONE MAINTENANCE Avoid exposing your NX Drone and its accessories to dust, sand and moisture as these can damage the NX Drone. If the NX Drone is exposed to dust or sand, use a soft brush to remove any visible particles. -
Page 18: Warranty Terms & Conditions
The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to NX, will be borne by you. NX Address: 115-119 Link Road, Melbourne Airport Australia Ph: +61 03 8331 4800 Email: info@nx-tech.com.au... - Page 19 ACCURACY OR RELIABILITY OF ANY INFORMATION OBTAINED THROUGH THE NX SERVICES (INCLUDING THIRD PARTY CONTENT), THAT ANY DEFECTS IN THE NX SERVICES WILL BE CORRECTED OR THAT THE NX PRODUCTS OR NX SERVICES WILL BE COMPATIBLE WITH ANY OTHER SPECIFIC HARDWARE OR SERVICE. FURTHER, NX DOES NOT...
-
Page 20: Limitations Of Nx Liability
EXCLUDED. 16.0 LIMITATIONS OF NX LIABILITY UNDER NO CIRCUMSTANCES WILL NX BE LIABLE IN ANY WAY FOR ANY CONTENT, INCLUDING, BUT NOT LIMITED TO, THE LOSS OF CONTENT, ANY ERRORS OR OMISSIONS IN ANY CONTENT, OR ANY LOSS OR DAMAGE OF ANY KIND INCURRED IN CONNECTION WITH USE OF OR EXPOSURE TO ANY CONTENT POSTED, EMAILED, ACCESSED, TRANSMITTED, OR OTHERWISE MADE AVAILABLE VIA THE NX APP. - Page 21 17.0 NOTES...
- Page 24 ENGINEERED FOR THE NEXT GENERATION™ All Images, Information and Content are Copyright © 2020 Directed Electronics www.nx-tech.com.au | www.nx-tech.co.nz Australia Pty Ltd. All Rights Reserved.
