IMPORTANT SAFETY RULES
READ, UNDERSTAND, AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING AND USING THIS PRODUCT !

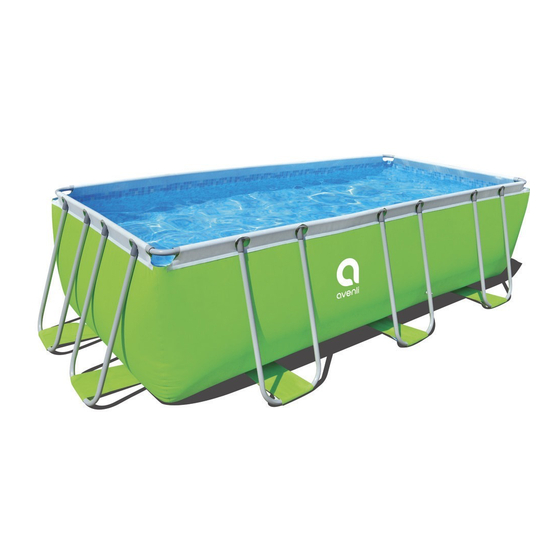

RECTANGULAR FRAME POOL
OWNER'S MANUAL
FOR FOLLOWING SIZES:
-4m x 2m x 99cm (13' x 6,5' x 39")
-4m x 2.07m x 1.22m (13' x 6,8' x 48")
Drawing for illustration purpose only. Actual product may vary. Not to scale.
Detailed information of product model and size is shown at the end of this manual!
DO NOT RETURN PRODUCT TO STORE
STOP!
Shanghai Jilong Plastic Products Co. Ltd.
2555 xiuPu Road, Pudong Area,Shanghai,China.
www.avenli.com
JILONG PLASTIC PRODUCTS(JIANGSU)CO.,LTD
NO.1 Industrial Area South Zhongchen Road Zhongyang Town,Suqian,Jiangsu,China
Please read carefully and keep for future reference!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 17525 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jilong 17525

  • Page 1 Drawing for illustration purpose only. Actual product may vary. Not to scale. Detailed information of product model and size is shown at the end of this manual! DO NOT RETURN PRODUCT TO STORE STOP! Shanghai Jilong Plastic Products Co. Ltd. 2555 xiuPu Road, Pudong Area,Shanghai,China. www.avenli.com JILONG PLASTIC PRODUCTS(JIANGSU)CO.,LTD NO.1 Industrial Area South Zhongchen Road Zhongyang Town,Suqian,Jiangsu,China...
  • Page 2: Table Of Contents

    RP2-19-GB(V1) CONTENTS THE SAFETY INSTRUCTIONS------------------------------------------------------------------------------------------------02 PART REFERENCE---------------------------------------------------------------------------------------------------------------04 SITE SELECTION-------------------------------------------------------------------------------------------------------------------08 SET UP THE POOL---------------------------------------------------------------------------------------------------------------09 FILL THE POOL WITH WATER--------------------------------------------------------------------------------------------------10 WINTERISING AND LONG-TERM STORAGE---------------------------------------------------------------------------11 IN-SEASON POOL MAINTENANCE AND WATER CARE------------------------------------------------------------12 TROUBLE SHOOTING -------------------------------------------------------------------------------------------------------------13 LIMITED WARRANTY ------------------------------------------------------------------------------------------------------------ 14 PART1-THE SAFETY INSTRUCTIONS Carefully read, understand, and follow all information in this user manual before installing and using the swimming pool.
  • Page 3 RP2-19-GB(V1) PART1-THE SAFETY INSTRUCTIONS 6). When pool covers are used, remove them completely from the water surface before entering the pool; 7). Protect pool occupants from water related illnesses by keeping the pool water treated and practicing good hygiene. Consult the water treatment guidelines in the user’s manual;...
  • Page 4: Part Reference

    RP2-19-GB(V1) PART2-PART REFERENCE -4m x 2m x 99cm (13’ x 6,5’ x 39”) Model Size Water Capacity Pump Ladder 17525 × × 4m x 2m x 99cm (13’ x 6,5’ x 39”) 1854Gal(7020L) 17525EU/17525DE/17525FR/ √ √ 4m x 2m x 99cm (13’ x 6,5’ x 39”)
  • Page 5 RP2-19-GB(V1) PART2-PART REFERENCE NOTE: Drawing for illustration purpose only. Actual product may vary. Not to scale. Before assembling your pool, layout and review the contents to become familiar with all the parts you will be using during the assembly: 4m x 2m x 99cm (13’ x 6,5’ x 39”) NAME SPARE PART SPARE PART...
  • Page 6 RP2-19-GB(V1) PART2-PART REFERENCE -4m x 2.07m x 1.22m (13’ x 6,8’ x 48”) Model Size Water Capacity Pump Ladder 17727 × × 4m x 2.07m x 1.22m (13’ x 6,8’ x 48”) 2343Gal(8870L) 17727EU/17727DE/17727FR/ √ √ 4m x 2.07m x 1.22m (13’ x 6,8’ x 48”) 2343Gal(8870L) 17727GB/17727RU 17727-1EU/17727-1DE/17727-1FR/...
  • Page 7 RP2-19-GB(V1) PART2-PART REFERENCE NOTE: Drawing for illustration purpose only. Actual product may vary. Not to scale. Before assembling your pool, layout and review the contents to become familiar with all the parts you will be using during the assembly: 4m x 2.07m x 1.22m (13’ x 6,8’ x 48”) NAME SPARE PART Horizontal Beam A...
  • Page 8: Site Selection

    RP2-19-GB(V1) PART3-SITE SELECTION WARNING: Pools installed on inadequately level surfaces are subject to leaking, forming irregularities, or collapse, which can result in property damage or serious in- jury for those in or around the pool area! WARNING: Do not use sand during setup process. If it appears that there is a need for use of a “leveling agent”, then your set-up site is likely unsuitable.
  • Page 9: Set Up The Pool

    RP2-19-GB(V1) PART4-SET UP THE POOL IMPORTANT: Do not start assembly if any pieces are missing. For replacement pieces call the Consumer Service telephone number in your area. The number of persons required for installation: 2 adult at least. Total installation time except the time for site preparation and water filling : 45 minutes for size 13’...
  • Page 10: Fill The Pool With Water

    RP2-19-GB(V1) Slide combined beams into sleeve,the hole on the beams should face outwards. Step5. INSTALL HORIZONTAL BEAM AND L-TUBE Plastic Sleeve Step6. INSTALL HORIZONTAL BEAM AND U-TUBES Find the one side holes on the horizontal beam.Place and lock the T-joints into the holes.Ensure they are fully connected PART5-FILL THE POOL WITH WATER WARNING: Do not leave pool unattended while filling with water.
  • Page 11: Winterising And Long-Term Storage

    RP2-19-GB(V1) PART6-WINTERISING AND LONG-TERM STORAGE WARNING: Do not let your children stand at downfold and face the water outlet during the drainage. The water current may sweep your children. WARNING: Pool should be stored at places where is cool and dry, with no sharp object surroued, or no heavy objects lying above, which may cause damage to the pool.
  • Page 12: In-Season Pool Maintenance And Water Care

    RP2-19-GB(V1) PART7-IN-SEASON POOL MAINTENANCE AND WATER CARE WARNING: If applicable, the filter pump included with your pool is designed to remove dirt and other small particles from your pool water. However, to maintain pool water that is perfectly clear, algae free, and safe from harmful bacteria, it is VERY IMPORTANT TO ENGAGE IN A CONSISTENT REGIMEN OF CHEMICAL TREATMENT.
  • Page 13: Trouble Shooting

    RP2-19-GB(V1) PART7-IN-SEASON POOL MAINTENANCE AND WATER CARE whether it needs to be cleaned or replaced. If your cartridge is no longer white in color, attempt to spray it clean with a strong blast of water from your garden hose. If your cartridge cannot be cleaned in this manner, the cartridge must be replaced. Failure to frequently clean and/or replace your cartridges will affect the effectiveness of your filter pump and could shorten its useful life.
  • Page 14: Limited Warranty

    RP2-19-GB(V1) PART8-TROUBLE SHOOTING PROBLEM DESCRIPTION CAUSE REMEDY • Water turns blue, brown, or black • The chlorine is oxidizing minerals • Adjust pH to recommended level. COLORED when first treated with chlorine. in your water. This commonly occurs • Run filter until water is clear. WATER with water from different sources.
  • Page 15 Des informations détaillées sur le modèle et les dimensions du produit se trouvent à la fin de ce manuel ! NE RETOURNEZ PAS LE PRODUIT AU MAGASIN ARRÊTEZ ! Shanghai Jilong Plastic Products Co. Ltd. 2555 xiuPu Road, Pudong Area,Shanghai,China. www.avenli.com JILONG PLASTIC PRODUCTS(JIANGSU)CO.,LTD NO.1 Industrial Area South Zhongchen Road Zhongyang Town,Suqian,Jiangsu,China...
  • Page 16 RP2-19-FR(V1) SOMMAIRE CONSIGNES DE SÉCURITÉ--------------------------------------------------------------------------------------------02 RÉFÉRENCE DES PIÈCES---------------------------------------------------------------------------------------------04 SÉLECTION DU SITE-----------------------------------------------------------------------------------------------------08 INSTALLER LA PISCINE------------------------------------------------------------------------------------------------09 REMPLIR LA PISCINE D'EAU-----------------------------------------------------------------------------------------10 AMÉNAGEMENT POUR L’HIVER ET STOCKAGE DE LONGUE DURÉE--------------------------------11 MAINTENANCE DE LA PISCINE ET SOIN DE L'EAU EN SAISON----------------------------------------12 DÉPANNAGE--------------------------------------------------------------------------------------------------------------13 GARANTIE LIMITÉE---------------------- ------------------------------------------------------------------------------------ 14 PARTIE 1-CONSIGNES DE SÉCURITÉ...
  • Page 17 RP2-19-FR(V1) PARTIE 1-CONSIGNES DE SÉCURITÉ 2) Gardez un téléphone en parfait état de marche et une liste de numéros d’urgence à proximité du bassin. Sécurité d’emploi de la piscine 1) Incitez tous les utilisateurs, en particulier les enfants, à apprendre à nager ; 2) Apprenez les gestes qui sauvent (réanimation cardiopulmonaire) et remettez régulièrement à...
  • Page 18 RP2-19-FR(V1) PARTIE 2-RÉFÉRENCE DES PIÈCES -4m x 2m x 99cm (13’ x 6,5’ x 39”) Modèle Taille Capacité en eau Pompe Échelle 17525 × × 4m x 2m x 99cm (13’ x 6,5’ x 39”) 1854Gal(7020L) 17525EU/17525DE/17525FR/ √ √ 4m x 2m x 99cm (13’ x 6,5’ x 39”)
  • Page 19 RP2-19-FR(V1) PARTIE 2-RÉFÉRENCE DES PIÈCES REMARQUE : Dessin à but d'illustration uniquement. Le produit réel peut varier. N'est pas à l'échelle. Avant de monter votre piscine, disposez et passez en revue le contenu pour vous familiariser avec toutes les pièces que vous utiliserez pendant le montage : 4m x 2m x 99cm (13’...
  • Page 20 RP2-19-FR(V1) PARTIE 2-RÉFÉRENCE DES PIÈCES -4m x 2.07m x 1.22m (13’ x 6,8’ x 48”) Modèle Taille Capacité en eau Pompe Échelle 17727 × × 4m x 2.07m x 1.22m (13’ x 6,8’ x 48”) 2343Gal(8870L) 17727EU/17727DE/17727FR/ √ √ 4m x 2.07m x 1.22m (13’ x 6,8’ x 48”) 2343Gal(8870L) 17727GB/17727RU 17727-1EU/17727-1DE/17727-1FR/...
  • Page 21 RP2-19-FR(V1) PARTIE 2-RÉFÉRENCE DES PIÈCES REMARQUE : Dessin à but d'illustration uniquement. Le produit réel peut varier. N'est pas à l'échelle. Avant de monter votre piscine, disposez et passez en revue le contenu pour vous familiariser avec toutes les pièces que vous utiliserez pendant le montage : 4m x 2.07m x 1.22m (13’...
  • Page 22 RP2-19-FR(V1) PARTIE 3-SÉLECTION DU SITE AVERTISSEMENT : Les piscines installées sur des surfaces insuffisamment de ni- veau sont soumises à des fuites, à la formation d'irrégularités, ou à l'effondrement, ce qui peut entraîner des dommages matériels ou des blessures graves pour les personnes à l'intérieur ou autour de la piscine ! AVERTISSEMENT : N'utilisez pas de sable pendant le processus d'installation.
  • Page 23 RP2-19-FR(V1) PARTIE 4-INSTALLER LA PISCINE IMPORTANT : Ne commencez pas le montage si des pièces sont manquantes. Pour des pièces de rechange, appelez le numéro de téléphone du Service client dans votre région. Le nombre de personnes nécessaire pour le montage: Au moins 2 personne. Le temps indicatif de rèalisation globale hors prèparation du terrain et hors mise en eau : 45 minutes pour la taille 13’...
  • Page 24 RP2-19-FR(V1) POUTRE B POUTRE C Pour 5.4m x 2.74m x 1.22m (18’ x 9’ x 48”), la combinaison est B-C Faites coulisser les poutres combinées dans le manchon, le trou des poutres doit être dirigé vers l'extérieur. Étape5. INSTALLEZ LA POUTRE HORIZONTALE ET LE TUBE EN L. Manchon en plastique Étape6.
  • Page 25 RP2-19-FR(V1) PARTIE 6-AMÉNAGEMENT POUR L’HIVER ET STO- CKAGE DE LONGUE DURÉE AVERTISSEMENT : Ne laissez pas vos enfants se tenir sur le pli du bas et face à la sortie de l'eau pendant la vidange. Le courant de l'eau peut emporter vos enfants. AVERTISSEMENT : La piscine doit être stockée dans un endroit frais et sec, sans objet pointu autour ni objets lourds situés au-dessus, ce qui peut endommager la piscine.
  • Page 26 RP2-19-FR(V1) PARTIE 7-MAINTENANCE DE LA PISCINE EN SAISON ET SOIN DE L'EAU AVERTISSEMENT : Le cas échéant, la pompe filtrante incluse avec votre piscine est conçue pour retirer les saletés et les autres petites particules de l'eau de votre piscine. Cependant, pour maintenir l'eau de la piscine parfaitement claire, exempte d'algues et sans bactérie nocive, il est TRÈS IMPORTANT DE MENER UN RÉGIME CONSTANT DE TRAITEMENT CHIMIQUE.
  • Page 27 RP2-19-FR(V1) PARTIE 7-MAINTENANCE DE LA PISCINE EN SAISON ET SOIN DE L'EAU réparations pendant le cycle de vie du kit de piscine. 4. Le cas échéant, vérifiez la cartouche de votre pompe filtrante toutes les deux semaines (ou plus fréquemment pendant les périodes d'utilisation intensive) pour vérifier si elle doit être nettoyée ou remplacée.
  • Page 28 RP2-19-FR(V1) PARTIE 8-DÉPANNAGE PROBLÈME DESCRIPTION CAUSE REMÈDE • Le chlore oxyde les éléments minéraux • Ajustez le pH au niveau recommandé. • L'eau devient bleue, marron ou noire dans votre eau. Ceci se produit • Faites fonctionner le filtre jusqu'à ce que lorsqu'elle est traitée pour la première COLORÉE couramment avec de l'eau de plusieurs...
