Delta Electronics DTE20C Instruction Sheet

Thank you very much for choosing DTE series accessory. Please read this instruction sheet before using your accessory to
ensure proper operation. Keep this instruction sheet handy for quick reference.

Warning

1. Please hold the plastic terminal when installing the accessory to prevent electrostatic discharge (ESD).
2. Prevent dust or metallic debris from falling into the device and cause malfunction. DO NOT modify or uninstall the accessory
without being permitted. DO NOT use empty terminals.
3. When installing the accessory, please make sure that the power of DTE main unit is switched off and insert the accessory
into the correct slot on DTE main unit.
4. Make sure you install the accessory correctly before switching on the power; otherwise serious damage may occur.
5. DO NOT touch the terminals or repair the device when the power is on; otherwise an electric shock may occur.
Functions & Electrical Specifications
Power
Max. 1.3W
consumption
DTE20R: 4 channels of relay output, SPST, max. AC 250V load, 3A resistive load
DTE20V: 4 channels of voltage pulse output, DC 24V, max. 40mA current output
Output
accessories
DTE20C: 4 channels of current output, DC 4 ~ 20mA output (resistive load < 500Ω)
DTE20L: 4 channels of analog voltage output 0 ~ 10V (resistive load > 1,000Ω)
Current output and analog voltage output boards can only be inserted into main output slots (OUT1,
OUT2) on DTE main unit.
Terminal
connection
Relay output and voltage output boards can only be inserted into main output slots (OUT1, OUT2) and
sub-output slots (SUB1, SUB2)

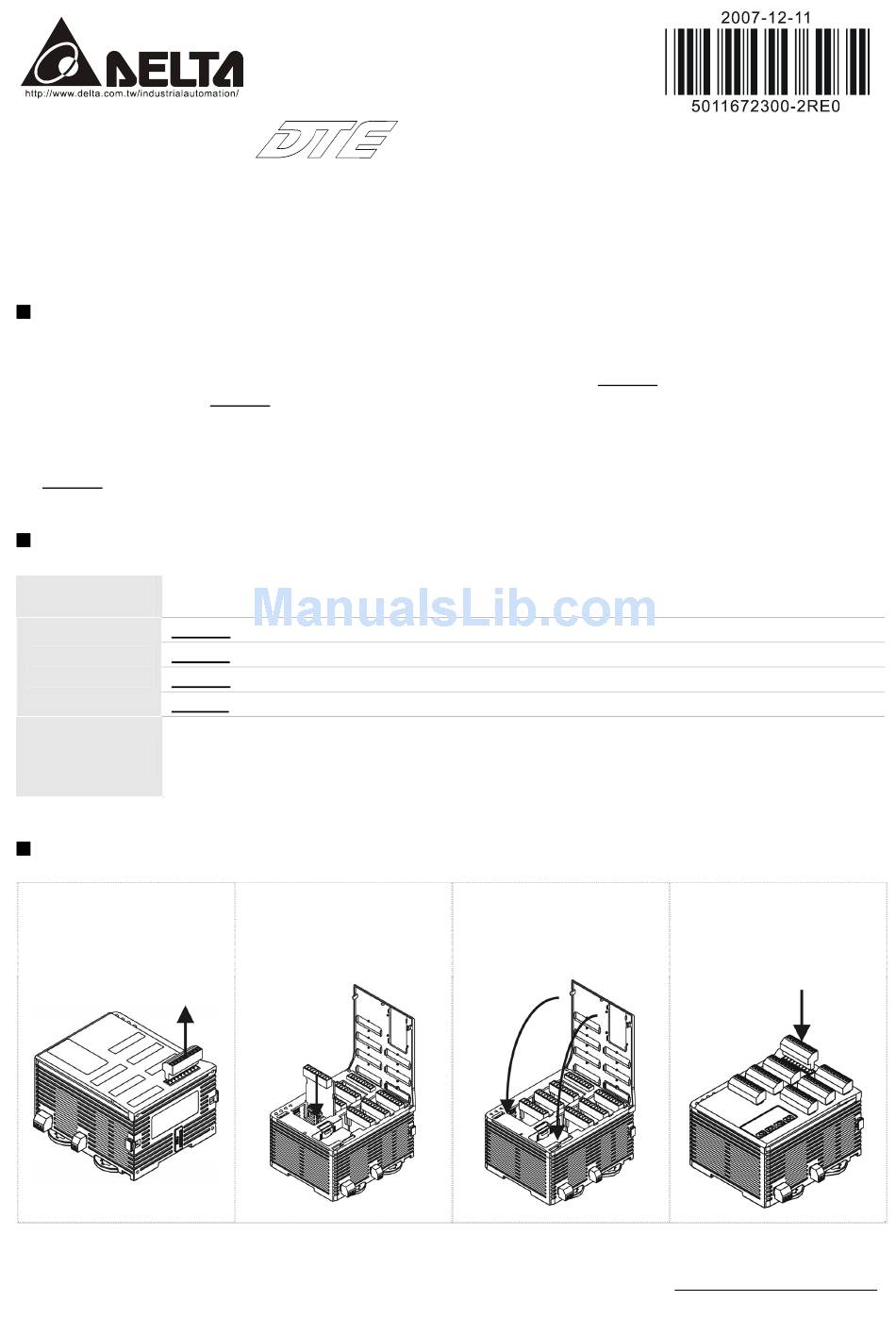

How to Install

1
Remove all the terminal
blocks on the panel.
Instruction Sheet
2
Uncover the panel. Make
sure which slot is the
correct one and insert the
accessory into the slot.
The content of this instruction sheet may be revised without prior notice. Please consult our distributors or
Accessories
3
Cover up the panel.
download the most updated version at http://www.delta.com.tw/industrialautomation
4
Insert the terminal blocks
back.
