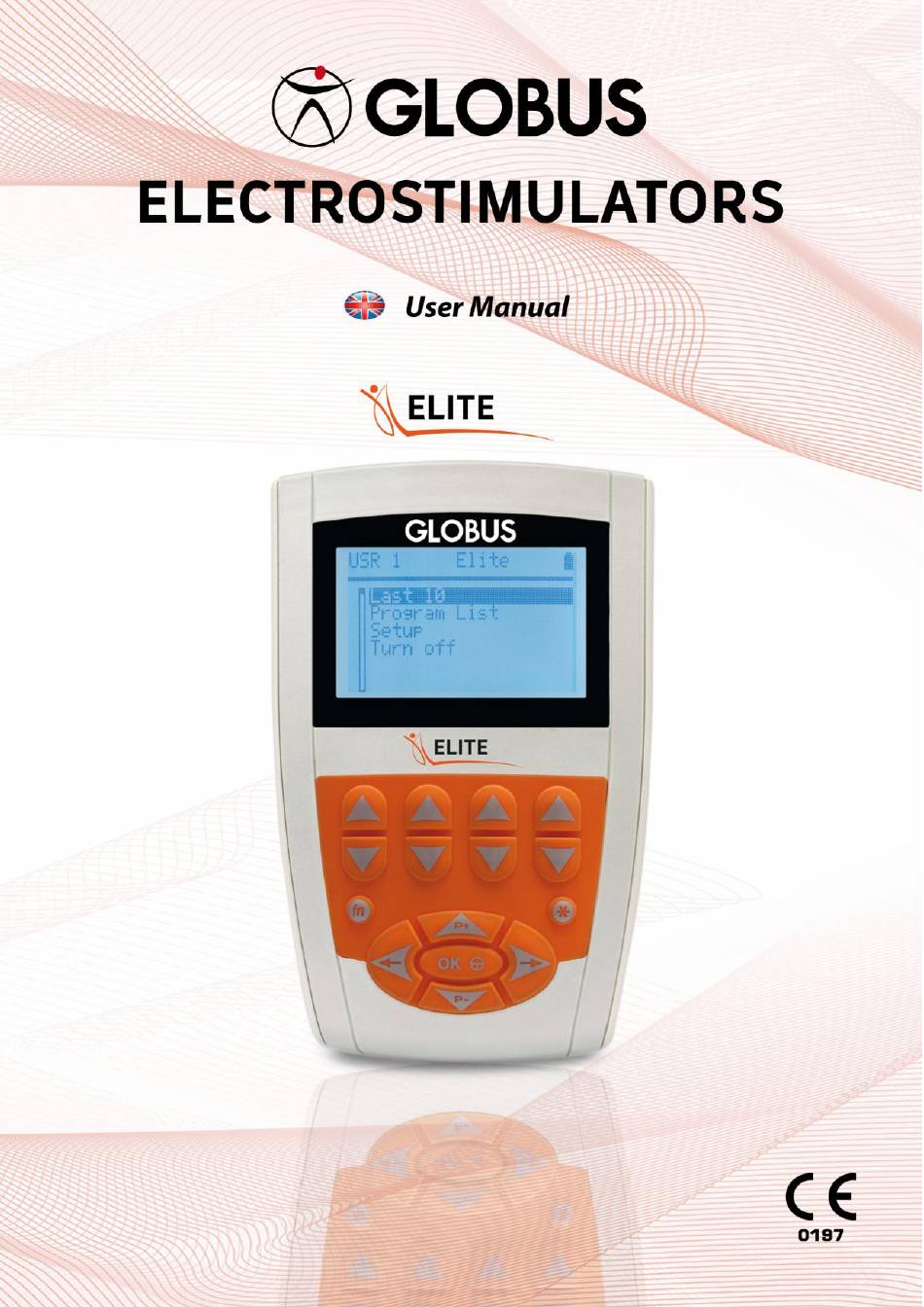

  • Page 3 DEAR CUSTOMER THANK YOU FOR CHOOSING A GLOBUS PRODUCT. WE REMAIN AT YOUR ENTIRE DISPOSAL FOR ANY ASSISTENCE OR ADVICE YOU MAY NEED ELITE The electrostimulators A1R (Elite) are manufactured by: SAVIA L.t.d. - 4nd Industrial District, Feng Huang Village (Shenzen) - Made in PRC - sales@tyece.com and distributed by: DOMINO s.r.l.

  • Page 4: Table Of Contents

    Table of contents Device ................................6 Conditions of use............................6 Technical features of the currents......................6 EQUIPMENT................................7 INTENDED USE..............................8 CONNECTIONS ..............................9 How to connect the cables ........................9 Electrode application ..........................9 Battery: how to charge the batteries ....................10 LABELLING AND SYMBOLS..........................
  • Page 5 “Program List” menu..........................21 “Last 10” menu............................23 ACTION PRINCIPLES ............................25 Muscular electrostimulation ........................25 Stimulation intensity ..........................26 Tens................................ 27  PROGRAM LIST..............................29 WARRANTY ................................. 37 Rev.10.15...

  • Page 6: Device

    TECHNICAL FEATURES Device Size: 160x99x35.4 mm Weight: 404 g Case: in Food Grade ABS Protection level: IP 22 Storage and transportation temperature: from -10°C to 45°C Max. relative humidity: 30% - 75% The values indicate the allowable limits if the product or its accessories are not in the original package.

  • Page 7: Equipment

    Battery Battery pack: Ni-MH 7,2 V 1,8 Ah EQUIPMENT The electrostimulator is supplied complete of cables and electrodes: therefore, please check that the package contains the complete equipment. If some elements are not contained in the package, please contact immediately the authorized retailer where you purchased the product.

  • Page 8: Intended Use

    - Kit of 4 elastic bands for thighs - Face electrodes - Kit Y cables INTENDED USE The service life of the product is estimated at 5 years. It is advisable to return the product for maintenance and security checks every two years. The number of treatments depends on the battery charge.

  • Page 9: Connections

    CONNECTIONS Cable connection outlets and power supply Attention: If the package, the cable or the connector of the charger show signs of wear or damage, replace them instantly. How to connect the cables Plug the connectors in the slots in the upper part of the unit to connect the diffusers to the device (see pic.).

  • Page 10: Battery: How To Charge The Batteries

    ATTENTION: Do not unplug the electrodes if the unit is working. Battery: how to charge the batteries The device is supplied with a set of rechargeable nickel-metal hydrate batteries (7.2V, 1.5Ah). Recharge the batteries when the battery indicator on the display indicates ¼. To charge the batteries, turn off the electrostimulator and disconnect the electrodes, then connect the electrostimulator to the charger provided by plugging it in the appropriate inlet (see picture above).

  • Page 11: Labelling And Symbols

    LABELLING AND SYMBOLS It refers to the manufacturer Warning This symbol on your device indicates that it complies with the directives on medical devices (93/42/EEC 47/2007/EEC. It indicates that this is a II class device. It indicates that this device has type BF parts. WEEE symbol (Waste of Electrical and Electronic Equipment).

  • Page 12: Device

    It refers to the humidity of the storage and transport environment where the device and its accessories are used. It indicates the output power of the device Output Power Input: it indicates the value of the mains voltage for the Input power supply unit Output:...
  • Page 13 Electrodes The supplied electrodes can be used on a single patient. They are self-adhesive, reusable and pregelled. The electrode cable is female. The electrodes are labeled "CE" in compliance with Directive 93/42/EEC for medical devices. All the supplied information can be modified without prior notice. Rev.10.15...

  • Page 14: Panel And Keyboard

    PANEL AND KEYBOARD Keyboard Increase/Decrease intensity button Function button button P+ button ON/OFF/OK button Left/Back button Right/User button P- button NOTE: When the 3” message appears, it means that pressing the button for 3 seconds the function is activated. ON/OFF/OK Button It confirms the selection.

  • Page 15: Display And Interface

    * Button Service button disabled. fn button If pressed together with other buttons, it modifies their function; if pressed singularly during the stimulation, it permits the access to the Runtime function (to modify time, frequency and amplitude). Intensity button It increases/decreases the stimulation intensity of the corresponding channel.

  • Page 16: Warnings And Contraindications

    Do not use Elite combined with other electronic devices, especially if they maintain vital functions. Read the tables at the end of the present manual for a correct use of Elite. If the device is used nearby or on other electromedical equipment, ensure that Elite works properly.

  • Page 17: Warnings During Use

    - the cables must never be wound up around the neck, since it may lead to strangulation and suffocation; - mobile and fixed radio-communication devices may affect the functioning of Elite; read the tables in the present manual for more info.

  • Page 18: Side Effects

    Side effects Isolated cases of skin irritation may occur in patients with particularly sensitive skin. In case of an allergic reaction to the electrode gel, suspend the treatment and contact a specialist. If during the treatment signs of tachycardia and extrasystole appear, suspend the treatment and contact your physician.

  • Page 19: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Device - In case of malfunctioning, do not open or tamper with the device nor try to repair it by yourself. - Only specialized and authorized centers can repair the device. - Avoid violent impacts that may damage the device and cause its malfunctioning (even if not immediately detectable).

  • Page 20: Accessories

    Accessories Use and storage of the electrodes and the cables. Worn-out cables or electrodes have to be replaced with brand-new parts. Skin has to be cleaned accurately before applying the electrodes. After using the multi-purpose or single-use, single-patient electrodes, they have to be placed in their plastic film and stored in the plastic bag.

  • Page 21: Instructions For Use

    INSTRUCTIONS FOR USE For a correct use of the device, proceed as follows: - Connect the cables to the outlets on the unit. - Connect the electrodes to the connectors at the end of the cables. - Place the electrodes on the skin. Start up Turn on the electrostimulator by pressing the ON/OFF/OK button for 3 seconds until hearing a tone.
  • Page 22 How to start a program Once you have selected a program, the following entries will appear: Start; Electrode placement; Select Start to start the program and increase the channel intensity in the following screen. Increase/decrease intensity To increase/decrease the intensity of the single channel, press the Up and Down buttons of the corresponding channels.

  • Page 23: Last 10" Menu

    “Last 10” menu The electrostimulator stores the latest 10 executed programs, which will be available for a rapid and easy execution. A program is stored automatically at the end of the execution. When the memory is full, older programs are automatically deleted. When turning device on, select "Last 10"...
  • Page 24 User Selection  It permits the use of the special menus ("Last 10") in a personalized manner. Users can store their programs in “Last 10” and perform them only when entering their specific account. The same procedure applies to the “Last ten” programs. NOTE: Every time the device has been turned on, the latest user will be displayed.

  • Page 25: Action Principles

    ACTION PRINCIPLES Muscular electrostimulation Electrostimulation is a technique which, by means of electric pulses acting on the muscle motor points (motoneurons), causes muscular contractions similar to voluntary contractions. Each side of the human body approximately includes 200 muscles (about 400 muscles overall) most of which are striated or voluntary.

  • Page 26: Stimulation Intensity

    the close relation between the motoneuron (tonic or phasic) and the functional characteristics of the fibers it innervates and, moreover, they have shown how a specific motor activity (particularly sports) can bring about a functional adaptation of fibers and a change in their metabolic characteristics. Motor unit type Contraction type Contraction frequency...

  • Page 27: Tens

    NOTE: The recommended current levels are only indicative. Open circuit ELITE is equipped with a monitoring device of power emissions. If the operator increases the intensity level above 10 mA and the circuit is open (the cables are not connected to the device and the electrodes are not applied to the skin), the electrostimulator immediately sets the intensity to 0 mA.
  • Page 28 Different effects in relation with the frequency Depending on the frequency used, ELITE produces immediate short-term antalgic effects (higher frequencies) or progressive long-term effects (lower frequencies). Rev.10.15...

  • Page 29: Program List

    PROGRAM LIST Sport Program List Capillarization Warm-up Decontracting Post-competition recovery/training Maximum strength Endurance strength Explosive strength Reactivity Demo Motor point pen TOTAL 32 NOTE: some programs are divided between man and woman according to body areas. Fitness-Physical shape program List Firming Bio-Pulse firming Sculpting...
  • Page 30 Beauthy-Aestethics Program List Drainage Bio-Pulse drainage Lipolysis Bio-Pulse lipolysis Toning massage Bio-Pulse relaxing massage Vascularization Face capillarization Face lifting effect Total 29 NOTE: the programs are divided between man and woman according to body areas. Rev.10.15...
  • Page 31 Medical currents - Pain Antalgic (Tens) Program List The following programs are medical Antalgic tens Endorphinic tens Contractures Hematomas Sciatica Lumbago Cervical pain Shoulder pain Epicondylitis Total 9 Medical currents - Rehabilitation Program List The following programs are medical Lower limbs atrophy recovery Upper limbs atrophy recovery Total 2 NOTE...
  • Page 32 GENERAL NOTES ON ELECTRODE PLACEMENT The correct positioning of the electrodes and the correct choice of their size are fundamental to guarantee the efficiency of the treatment. The images at the end of the present manual illustrate the different sizes of the electrodes and their positioning.
  • Page 33 ELECTRODE PLACEMENT Biceps brachii muscle Triceps brachii muscle Flexor carpi muscle Extensor carpi muscle Deltoid muscle Pectoral muscle Pectoral muscle Trapezius muscle Trapezius muscle Rev.10.15...
  • Page 34 ELECTRODE PLACEMENT Latissimus dorsi muscle Latissimus dorsi muscle Infraspinatus muscle Lumbar muscles Lumbar/Dorsal muscles Abdominals Abdominals Abdominals Rectus abdominis muscle Rev.10.15...
  • Page 35 ELECTRODE PLACEMENT Gluteus Gluteus Biceps femoris muscle Adductors Rectus femoris muscle Quadriceps Gastrocnemius muscle Gastrocnemius muscle Tibialis anterior muscle Rev.10.15...
  • Page 36 ELECTRODE PLACEMENT FOR TENS TREATMENTS Shoulder pain Elbow pain Cervical pain Lumbar pain Lumbar pain Sciatica Knee pain Knee pain Knee pain Rev.10.15...

  • Page 37: Warranty

    NOTE: Before returning the device for repairs, we recommend reading user’s instructions contained in the manual carefully and visit Globus website. When returning your product for assistance, contact your dealer or contact Globus Customer Care. The manufacturer reserves the right to make changes without prior notice.
  • Page 38 Frequently Asked Questions What kind of electrodes should be used for electrostimulation? Use self-adhesive electrodes, which are practical and improve the quality of stimulation. If used with care, they will last for 25-30 applications. The electrodes should be replaced when they do not adhere to the skin anymore. Where do the electrodes have to be placed? The present manual contains a comprehensive electrode placement guide (it is not necessary to respect the polarities indicated): therefore, it is sufficient to comply with...
  • Page 39 How many sessions can I perform weekly? For physical training, consult the program of weekly training in the Globus Personal Trainer. For fitness and aesthetics programs, the number of sessions depends on the...
  • Page 40 ELITE deve garantire che esso viene usato in tale ambiente. The ELITE is intended for use in the electromagnetic environment specified below. The customer or the user of the ELITE should assure that it is used in such an environment. Prova di emissione Conformità...
  • Page 41 ELITE deve garantire che esso viene usato in tale ambiente. The ELITE is intended for use in the electromagnetic environment specified below. The customer or the user of the ELITE should assure that it is used in such an environment.
  • Page 42 Voltage dips, short rete, si raccomanda di alimentare interruptions and lo ELITE con un gruppo di 40% U 40% U voltage variations on continuità (UPS) o con batterie. power supply input (60% buco in_dip in...
  • Page 43 ELITE è previsto per funzionare nell’ambiente elettromagnetico sotto specificato. Il cliente o l’utilizzatore dello ELITE deve garantire che esso venga usato in tale ambiente. The ELITE is intended for use in the electromagnetic environment specified below. The customer or the user of the ELITE should assure that it is used in such an environment.
  • Page 44 RF condotta 3 Veff_Vrms      da 80 MHz a 800 MHz   Conducted RF 80 MHz to 800 MHz IEC 61000-4-6 da 150 kHz a 80    150 kHz to 80 MHz  ...
  • Page 45 Se l’intensità di campo misurata nel luogo in cui si usa uno ELITE , supera il livello di conformità applicabile di cui sopra, si dovrebbe porre sotto osservazione il funzionamento normale del ELITE . Se si notano prestazioni anormali, possono essere necessarie misure aggiuntive come un diverso orientamento o posizione del ELITE .
  • Page 46 COMMUNICATIONS EQUIPMENT AND THE ELITE FOR EQUIPMENT AND SYSTEM THAT ARE NOT LIFE-SUPPORTING ELITE è previsto per funzionare in un ambiente elettromagnetico in cui sono sotto controllo i disturbi irradiati RF. Il cliente o l’operatore dello ELITE possono contribuire a prevenire...
