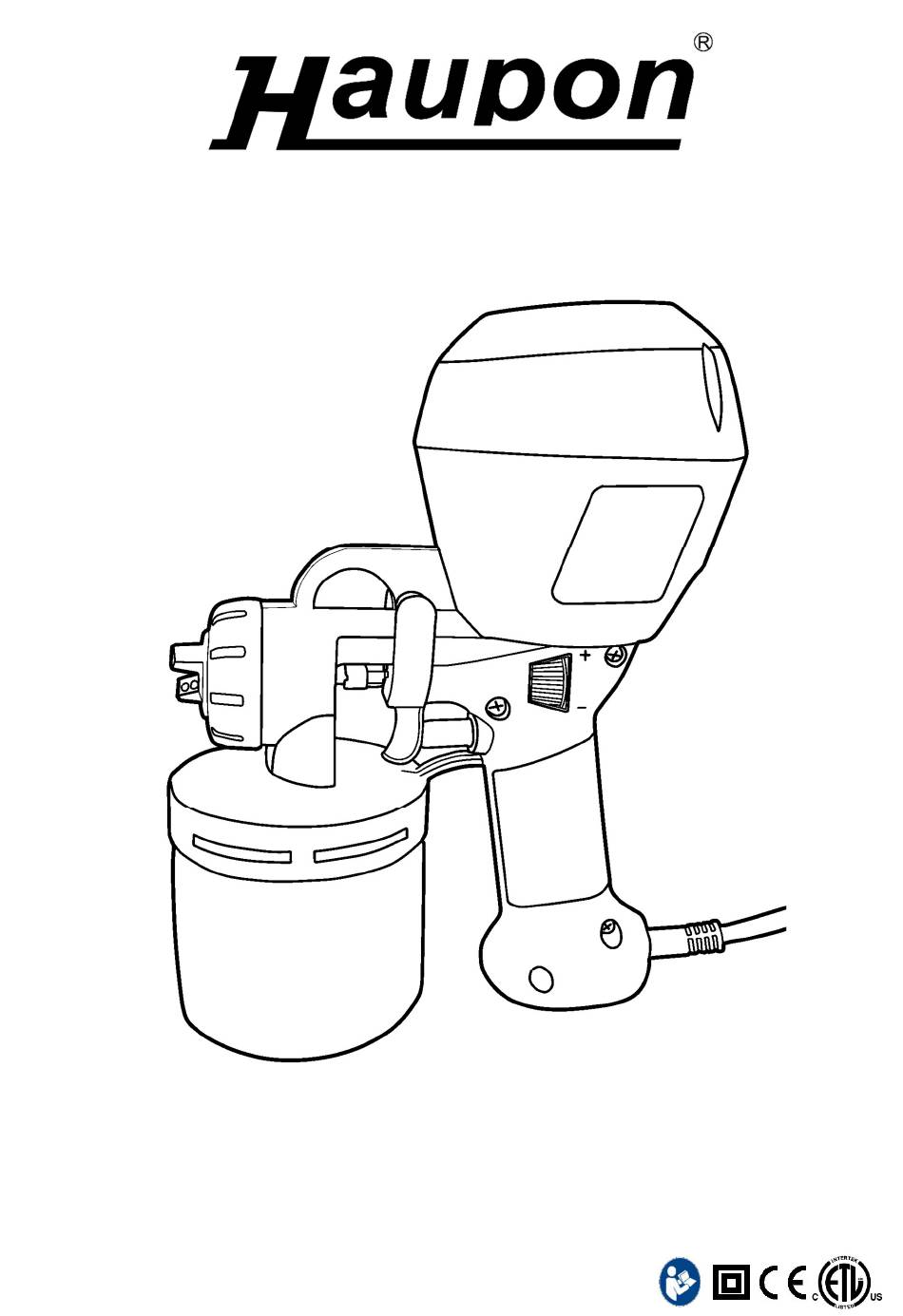

- Page 1 HVLP PAINT SPRAYER TM-73 WARNING TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND INSTRUCTION MANUAL. KEEP CHILDREN AWAY FROM WORKING AREA. MADE IN TAIWAN PLEASE READ AND SAVE THIS INSTRUCTION MANUAL ENGLISH ORIGIONAL INSTRUCTIONS...
-
Page 2: Specifications

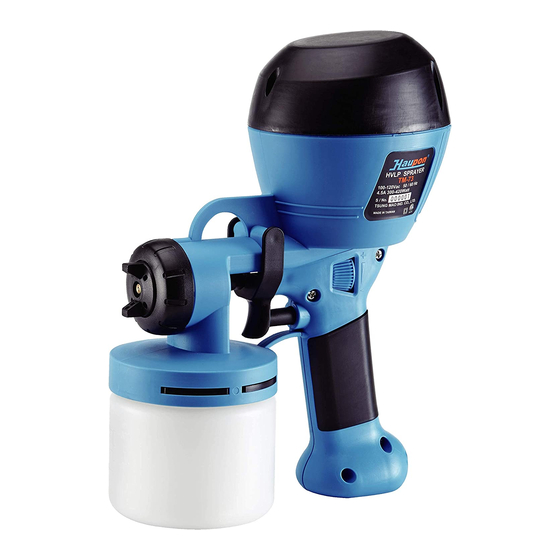

Specifications: Voltage 100V-120V 220V-240V 50 Hz / 60 Hz WATTS 300-420 watts Air supply 67cu.ft./min. (1.9 m3/min.) Container capacity 11 oz (0.3 L) Weight 2.2 lbs. (1kg) Motor speed 34,000 rpm Component Introduction: Motor Lid Air Cap Paint Control Nut Trigger Handle Paint Container... - Page 3 Read instruction manual before operating and observe all warning. WARNING: DO NOT aim sprayer at yourself or anyone else at all times, in the event of an injury occurring seek expert medical consultant immediately. DO NOT allow any part of the body to come in contact with the fluid stream. DO NOT cover the nozzle with any part of your body, high velocity jet could cause accidental injuries.
-
Page 4: For Safe Operations
FOR SAFE OPERATIONS: Keep work area clean Cluttered or dark areas and benches invite accidents. Consider work area environment Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, rain, gases or dust. Keep work area well lit. Avoid working with power tools in damp or wet areas or when perspiring. - Page 5 15. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 16. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
-
Page 6: Noise/Vibration Information
Noise/Vibration Information Measured sound values determined according to EN 60745-1 and EN 50580. Typically, the A-weighted noise levels of the product are: Sound pressure level 86 dB(A); Sound power level 96 dB(A). Uncertainty K=3 dB. Wear hearing protection! Vibration total values (triax vector sum) determined according to EN 60745-1 and EN50580: Vibration emission value ah <1.5 m/s2, Uncertainty K =1.5 m/s2. -
Page 7: Paint Preparation
Ø4.0mm High viscosity paint * Ø 2.0mm is Included with TM-73 Optional Spray Tips: Ø 1.0mm, Ø 1.5mm, Ø 2.0mm, Ø 2.5mm, Ø 3.0mm, Ø 3.5mm, Ø 4.0mm Large spray tip sets are for water-based paint (latex paint); small spray tip sets are for oil-based paint. - Page 8 The choice of needle and spray tip for different paints: Latex paint (All water-based paint): Ø 2.5mm (or larger) needle tip & spray tip. All oil-based paint: Ø 1.5mm (or smaller size) needle tip & spray tip for fine spray pattern. Adjust the paint flow (+) Turn the paint control clockwise for more flow.
- Page 9 HOW TO OPERATE SPRAY GUN PROPERLY? Adjust the Air-Cap Slacken off the air-cap nut, turn the air-cap to the required position to produce a horizontal or vertical or round spray pattern. The horizontal spray is generally VERTICAL SPRAY used when painting up and down, and vertical spray when painting across, and round spray when painting on the strip HORZONTAL...
-
Page 10: Check Valve
HOW TO OPERATE YOUR SPRAY GUN PROPERLY? (CONTINUED) 4. When spraying overhead (e.g. ceilings) or floors, be sure to adjust the angle of paint tube, or the sprayer may fail to get the paints from the container due to tilting. The vertical inclination should be not more than 70°... - Page 11 CLEANING UP After the project has been completed or when you are going to take a longer rest, it is necessary to clean up the sprayer to prevent the paint from dried out and causing damage to the unit. Cleaning steps: Unplug sprayer from electrical outlet.
-
Page 12: Troubleshooting Guide
TROUBLE SHOOTING GUIDE TROUBLE CAUSE REMEDY Turn the adjust nut counterclockwise. Too much paint. Move gun faster. Gun moved too slowly. Add unthinned paint to achieve correct time Paint too thin. through viscosity test cup. Sags or runs ... -
Page 13: Parts List
PARTS LIST ITEM DESCRIPTION ITEM DESCRIPTION ITEM DESCRIPTION RETAINING NUT FILTER HANDLE HOUSING AIR CAP FILTER LID SWITCH AIR PARTITION CAP ADJUST NUT LID WASHER SLIDE PIPE SPRAY TIP THREADED INSERT NEEDLE SPRING GUN BODY PAINT TUBE MOTOR WASHER NEEDLE PAINT CONTAINER MOTOR PARTITION SPRING FOR SLIDE PIPE... - Page 14 CAUTION: DO NOT PLACE THE SPRAYER UPSIDE DOWN. ALWAYS place the sprayer upright to prevent liquid from entering internal wiring or motor and causing electric shock or damage. Use the cleaning brush to clean the inlets, do not allow water flow into motor.
-
Page 15: Weee And Rohs
WEEE and RoHs Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. - Page 16 Tsung Mao Ind. Co., Ltd tsungmao@haupon.com.tw MADE IN TAIWAN Rev B 20191217 YouTube Website...
