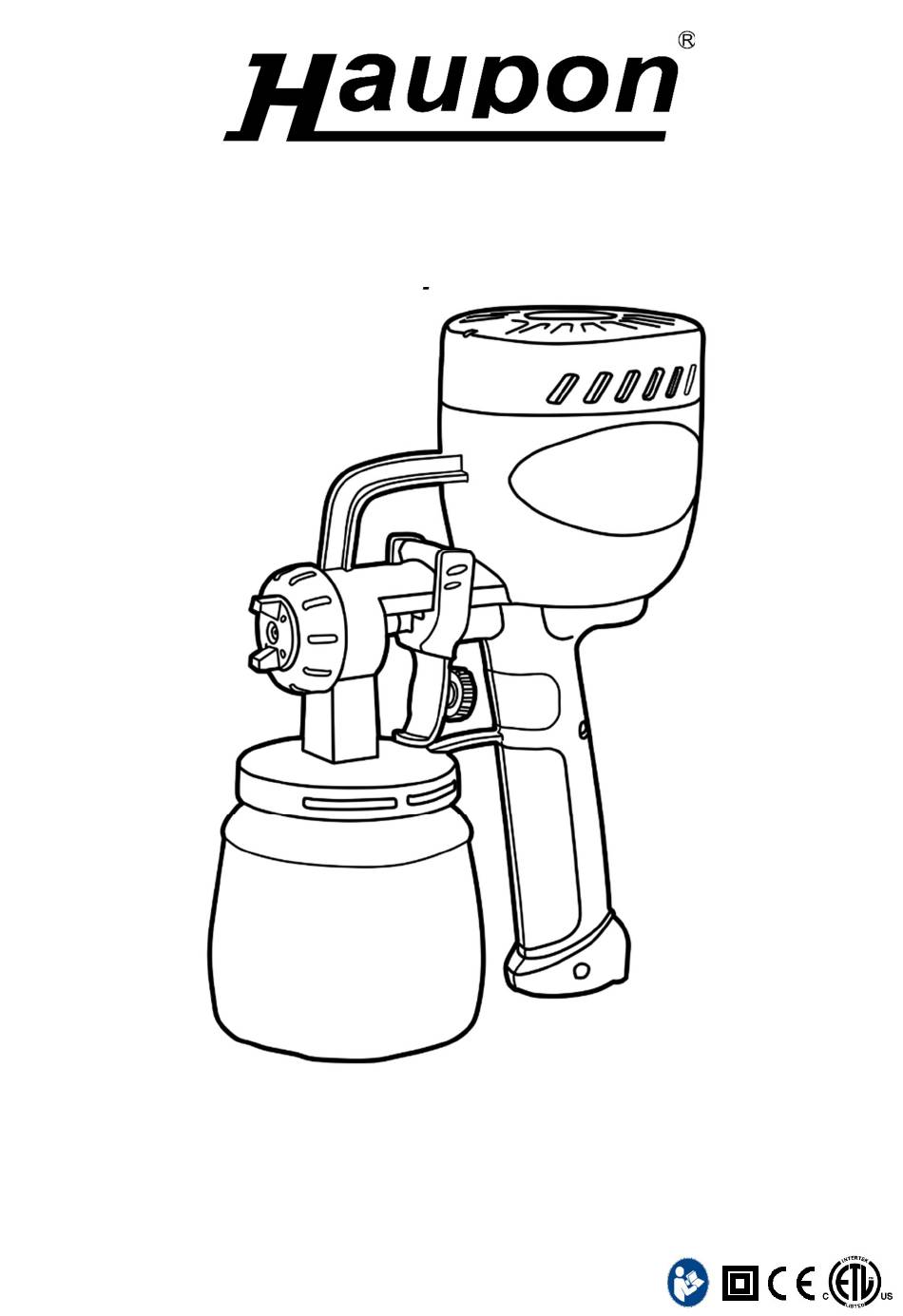

- Page 1 HVLP PAINT SPRAYER TM-500 / TM-663A+ WARNING TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND INSTRUCTION MANUAL. KEEP CHILDREN AWAY FROM WORKING AREA. MADE IN TAIWAN PLEASE READ AND SAVE THIS INSTRUCTION MANUAL ENGLISH...
-
Page 2: Specifications
Specifications : Voltage 100V-120V 220V-240V 50 Hz / 60 Hz WATTS 300-450 watts Air supply 1.5-1.9 m3/min. (67cu.ft./min.) 0.8L (28 oz) Container capacity Weight 2.5 lbs. (1.2 kg) Motor speed 34,000 rpm Component Introduction: MOTOR LID RETAINING AIR CAP SWITCH TRIGGER PAINT CONTROL NUT VISCOSITY CUP PAINT CONTAINER... - Page 3 Read instruction manual before operating and observe all warning. WARNING: DO NOT aim sprayer at yourself or anyone else at all times, in the event of an injury occurring seek expert medical consultant immediately. DO NOT allow any part of the body to come in contact with the fluid stream. DO NOT cover the nozzle with any part of your body, high velocity jet could cause accidental injuries.
-
Page 4: For Safe Operations
FOR SAFE OPERATIONS: Keep work area clean Cluttered or dark areas and benches invite accidents. Consider work area environment Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, rain, gases or dust. Keep work area well lit. Avoid working with power tools in damp or wet areas or when perspiring. - Page 5 14. Do not clean guns with flammable solvents. 15. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
-
Page 6: Paint Preparation
SERVICING OF A DOUBLE-INSULATED PRODUCT: In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing of a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. - Page 7 OPERATING: Adjust the Air-Cap Slacken off the air-cap nut, turn the air-cap VERTICAL to the required position to produce a SPRAY horizontal or vertical or round spray pattern. The horizontal spray is generally used when painting up and down, and vertical spray when painting across, and round spray when painting on the strip.
- Page 8 HOW TO OPERATE YOUR SPRAY GUN PROPERLY? 1. Practice before painting- Test your sprayer on cardboard or scrap wood especially when you operate the sprayer first time. 15 – 20 cm (6 – 8 inches) is about the best distance for spraying.
- Page 9 CLEANING UP After the project has been completed or when you are going to take a longer rest, it is all necessary to clean up the gun to prevent the paint from dried out and causing damage to the gun. Cleaning steps 1.
-
Page 10: Troubleshooting
TROUBLE SHOOTING TROUBLE CAUSE REMEDY Turn the adjust nut counterclockwise. Too much paint. Move gun faster. Gun moved too slowly. Add unthinned paint to achieve correct time Paint too thin. through viscosity test cup. Sags or runs ... -
Page 11: Parts List
PARTS LIST ITEM DESCRIPTION ITEM DESCRIPTION ITEM DESCRIPTION RETAINING NUT NEEDLE SCREW FOR WIRE FIXING AIR CAP NEEDLE SPRING WIRE FIXING AIR PARTITION CAP SLIDE PIPE LID WASHER SPRAY TIP SPRING FOR SLIDE PIPE PAINT TUBE GUN BODY TRIGGER LID SCREW NUT MOTOR LID SPRING FOR ADJUST NUT PAINT CONTAINER... - Page 12 Recycle paint, Faux stone paint, High viscosity paint Blue Ø 2.0mm is Included with TM-663A+ Large spray tip sets are for water-based paint (latex paint); small spray tip sets are for oil-based paint. Tsung Mao Ind. Co., Ltd tsungmao@haupon.com.tw MADE IN TAIWAN Rev B 20190322 YouTube Website...
