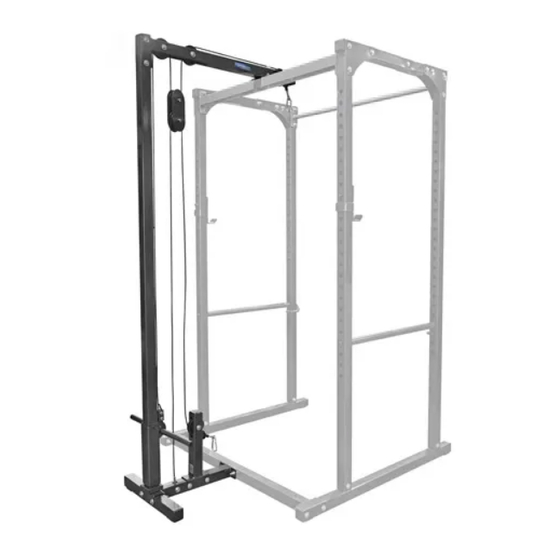

IRON FACTORY POWER RACK LAT OPTION
IRON FACTORY POWER RACK LAT OPTION
IRPOWRLAT
OVERALL DIMENSIONS: 37"L X 20.5"W X 83.19"H
23 JANUARY 2017
ASSEMBLY INSTRUCTIONS
Keep This For Warranty
IRPOWRLAT
LOT:
1-866-420-4560
Northern Lights Fitness
Products Inc.
MADE IN CANADA
Specification
Weight=39.5 lbs
Packed in 1 Box
:84"x6.25"x6"
Box 1
:1.82 ft³
Advertisement
Table of Contents
Related Manuals for Northern Lights Fitness IRPOWRLAT
Summary of Contents for Northern Lights Fitness IRPOWRLAT
- Page 1 IRON FACTORY POWER RACK LAT OPTION ASSEMBLY INSTRUCTIONS Keep This For Warranty IRPOWRLAT LOT: 1-866-420-4560 Northern Lights Fitness Products Inc. MADE IN CANADA Specification IRON FACTORY POWER RACK LAT OPTION Weight=39.5 lbs Packed in 1 Box IRPOWRLAT :84"x6.25"x6" OVERALL DIMENSIONS: 37"L X 20.5"W X 83.19"H Box 1 :1.82 ft³...
- Page 2 Bolt base support(2) to the power rack rear base using two 3" bolts(D) with washers. Bolt base rear(1) and rear upright(4) to base support(2) using two 3-1/4" bolts(E) with washers. Bolt pulley support(3) to base support(2) using two 3" bolts(D) with washers. ATTENTION THE WEIGHT LIMIT ON IRPOWRLAT IS 200LBS. Page:-2 of 5...
- Page 3 Slide slider tube(6), down onto rear upright(4) from top, bolt topbeam(5) to rear upright(4) using two 2-1/2" bolts(B) with washers. Attach lat option top beam(5) to power rack using two 3" bolts(D)with washers. Power Rack Note: For smoother operation, lubricate Rear Upright(10) with a silicone spray or liquid.
- Page 4 Position cables as shown: * Loosen nuts, insert cable and position Item 7, re-tighten nuts. Run lat pulldown cable(AB) prior to pulley(AC) installation. Lat Pulldown Cable Low Row Cable Position low row cable(AA) in place prior to bottom pulley(AC) installation. After running low row cable(AA) through pulley support(3), proceed to install pulley(AC) into pulley support(3) using one 2-3/4"...
- Page 5 WARRANTY Garantie à Vie Limitée du Fabricant Manufacturer’s Limited Lifetime Warranty Northern Lights Fitness Products Inc. offre à ses Northern Lights Fitness Products Inc. offers its clients une garantie à vie contre toutes soudures customers a lifetime warranty against broken casées et contre tout défaut de matériau et de...
