NORTHERN LIGHTS DECLINE OLYMPIC

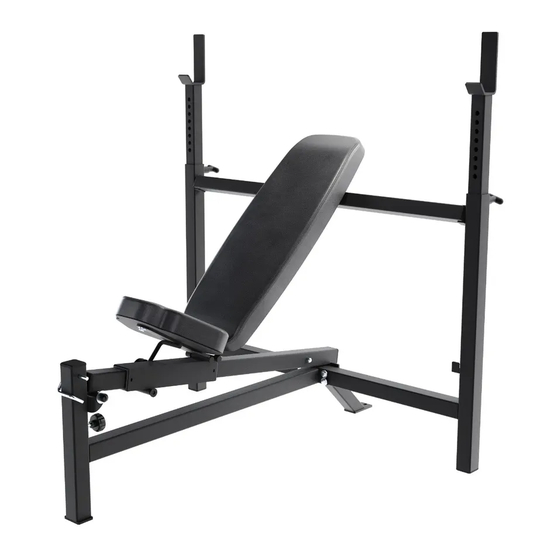

NORTHERN LIGHTS DECLINE OLYMPIC WORKOUT CENTER BENCH
NL-DOWB
OVERALL DIMENSIONS: 52"L X 48"W X 66"H
24 AUGUST 2012
WORKOUT CENTER BENCH
ASSEMBLY INSTRUCTIONS
Keep This For Warranty
NL-DOWB
LOT:
1-866-420-4560
Northern Lights Fitness
Products Inc.
MADE IN CANADA
Specification
Weight=92.6 lbs
Packed in 1 Box
:49"x34.5"x5.25"
Box 1
:5.14 ft³
