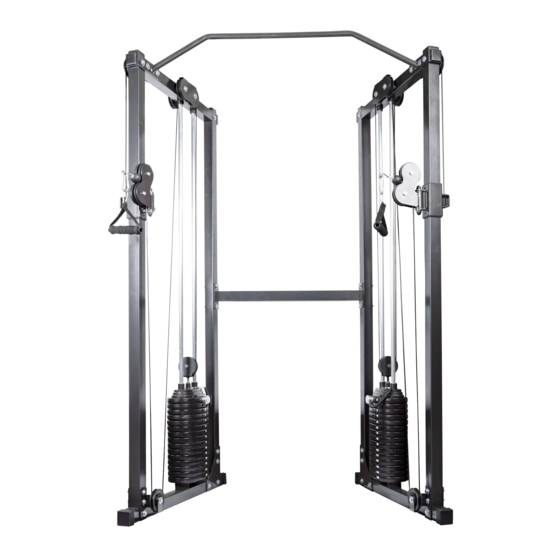

IRON FACTORY FUNCTIONAL TRAINER, 2X150LB
IRON FACTORY FUNCTIONAL TRAINER, 2X150LB
IRFT150
OVERALL DIMENSIONS: 34.5"L X 53"W X 81"H
11 OCTOBER 2018
ASSEMBLY INSTRUCTIONS
Keep This For Warranty
Keep This For Warranty
IRFT150
IRFT150
LOT:
LOT:
1-866-420-4560
1-866-420-4560
Northern Lights Fitness
Northern Lights Fitness
Products Inc.
Products Inc.
MADE IN CANADA
MADE IN CANADA
Specification
Specification
Weight=426.9 lbs
Weight=426.9 lbs
Packed in 8 Boxes
Packed in 8 Boxes
:74"x7"x5-1/2"
:74"x7"x5-1/2"
Box 1
Box 1
:1.65 ft³
:1.65 ft³
:59.3 Lbs
:59.3 Lbs
:48-1/4"x10"x7-3/4"
:48-1/4"x10"x7-3/4"
Box 2
Box 2
:2.164 ft³
:2.164 ft³
:67.6 Lbs
:67.6 Lbs
:12.5"x5"x6.25"
:12.5"x5"x6.25"
Box 3,4,5,6,7&8
Box 3,4,5,6,7&8
:0.226 ft³
:0.226 ft³
:Each 50 Lbs
:Each 50 Lbs
Advertisement
Related Manuals for Northern Lights Fitness IRFT150
Summary of Contents for Northern Lights Fitness IRFT150
- Page 1 IRON FACTORY FUNCTIONAL TRAINER, 2X150LB ASSEMBLY INSTRUCTIONS Keep This For Warranty Keep This For Warranty IRFT150 IRFT150 LOT: LOT: 1-866-420-4560 1-866-420-4560 Northern Lights Fitness Northern Lights Fitness Products Inc. Products Inc. MADE IN CANADA MADE IN CANADA Specification Specification Weight=426.9 lbs Weight=426.9 lbs...
-
Page 2: Parts List

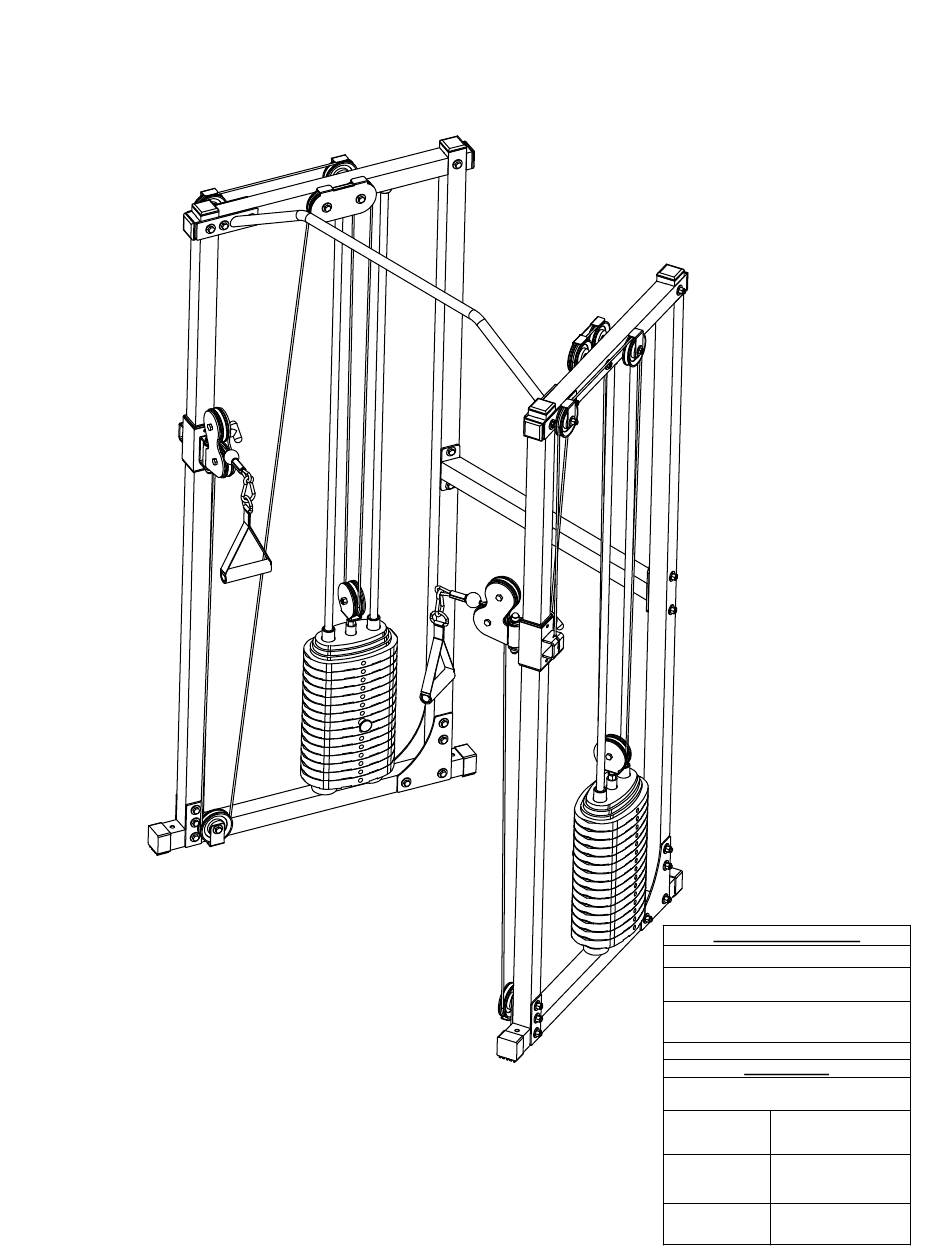

Parts List Item Part QTY. Box/Bag# Base Box#1 Base Rear Brace Box#2 3.1 Base Front Pulley Brace-Left Box#2 BOLT SIZE 3.2 Base Front Pulley Brace-Right Box#2 Base Front Brace Box#2 5.1 Front upright-Left Box#1 5.2 Front upright-Right Box#1 Rear Upright Box#1 Rear Connector Box#2... - Page 3 Left Right 15 Plates Makes One Stack Right Left Right Left Page:-3 of 7...
- Page 4 RIGHT LEFT RIGHT LEFT Note: Right side of the assembly shown in detail, Left side is opposite of it. 1. Bolt Base (1) and Rear Upright (6) using the Base Rear Brace (2) and bolting as shown. 2. Bolt Base (1) and Front Upright-Right ((5.2) - Make sure the orientation of the part is as shown in the figure) using the Base Front Brace (4), Base Front Pulley Brace-Right ((3.2) - Make sure the orientation of the part is as shown in the figure) and bolting as shown.
- Page 5 4. Like the same way, make the left side assembly using Base (1), Base Rear Brace (2), Rear Upright (6), Front Upright-Left (5.1), Base Front Brace (4), Base Front Pulley Brace-Left (3.1) and Adjustable Pulley Assembly – (Adjustable Pulley Bracket (11) and Dual Swivel Pulley Bracket (12) Assembly) as shown in the figure. 5.
- Page 6 START FINISH START FINISH 13. Install the pulleys (P) and Cable (AU) with the Double Pulley Cable Retainer(9), Single Pulley Cable Retainer (10), and Nylon Spacers (N & O) using the bolting as shown. Start the installation from Start 1 to Finish 8 , take care to keep the cable in the pulley groove.
-
Page 7: Warranty
WARRANTY Garantie à Vie Limitée du Fabricant Manufacturer’s Limited Lifetime Warranty Northern Lights Fitness Products Inc. offre à ses Northern Lights Fitness Products Inc. offers its clients une garantie à vie contre toutes soudures customers a lifetime warranty against broken casées et contre tout défaut de matériau et de...
