POLE SAW
HYPS5200X
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYPS5200X and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HYPS5200X

Summary of Contents for Hyundai power products HYPS5200X

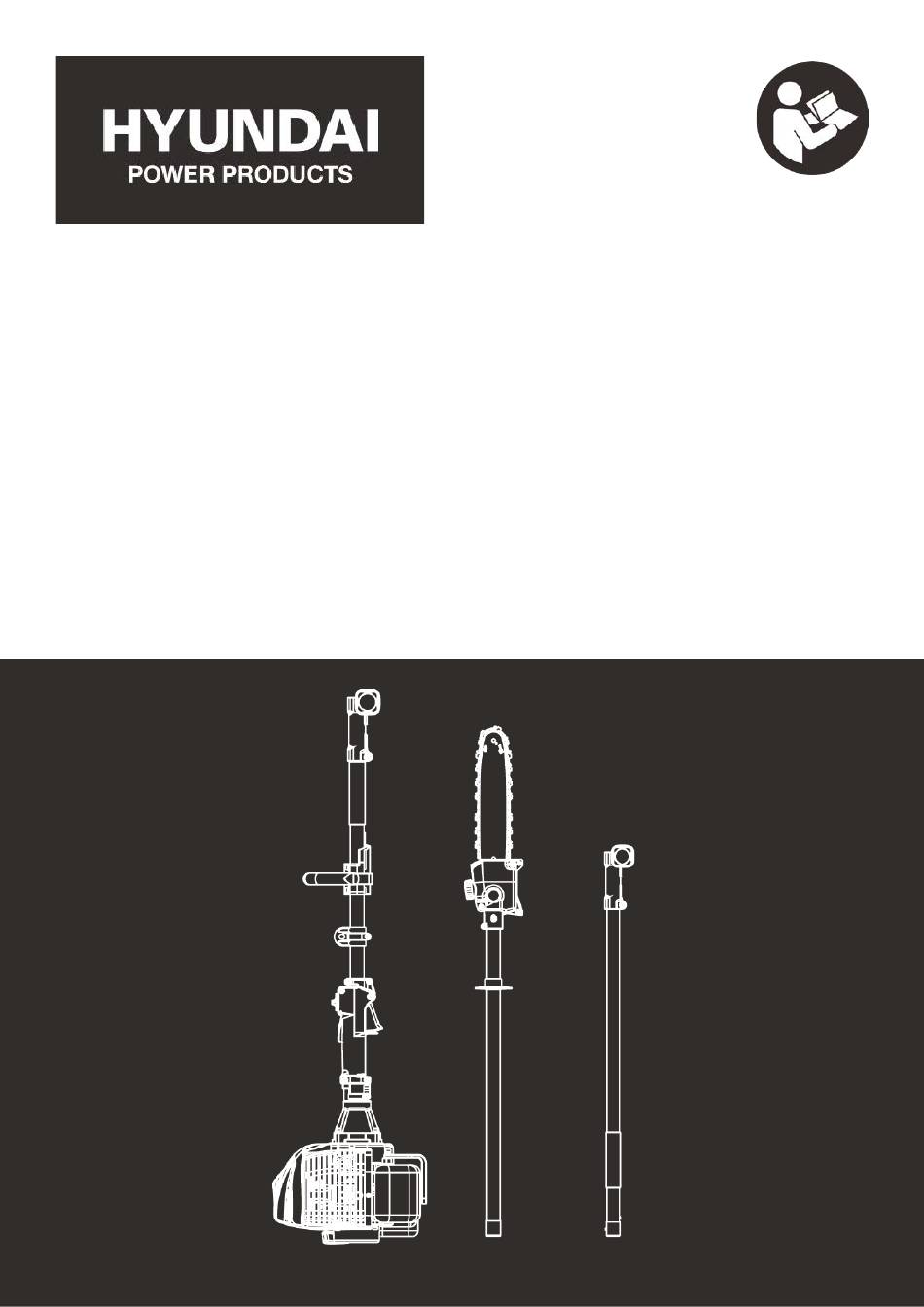

  • Page 1 POLE SAW HYPS5200X Instruction Manual...
  • Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
  • Page 3 Contents www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...

  • Page 4: Safety Information

    Safety Information Safety No list of safety guidelines can be complete. Every environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious injury, damage to equipment, or poor work results.

  • Page 5: Personal Safety

    Safety Information Personal Safety • WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator. • Keep children, pets, and other people not using the unit away from the work area (at least 15m).
  • Page 6 Safety Information Inspect Your Machine • You must check the general condition of the machine before use. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened. • Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using it.
  • Page 7 Safety Information Work Area • Make sure you thoroughly inspect the entire work area and remove all objects and anything that could be thrown by the machine or could damage the engine or machine (branches, stones, wire, toys, etc). Attempting to clear the work area whilst using the machine will reduce your concentration and creates a trip hazard.

  • Page 8: During Use

    Safety Information During Use • Always hold the unit with both hands when operating. Keep a firm grip on the handlebars • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. •...
  • Page 9 Safety Information During Use (Continued) • Be aware of your environment and all possible hazards that you may be unable to hear while using the machine. • Keep an eye not only on the branches being cut, but also on fallen material, to avoid tripping. •...
  • Page 10 Safety Information Pole Saw Safety • To avoid injuries due to falling branches, do not stand under the branches that you want to cut off. Be aware of branches that may spring back and cause injuries. Work at an angle of approximately 60°.
  • Page 11 Safety Information Engine Safety • This machine is equipped with an internal combustion engine. Do not use on, or near, forest-covered or brush-covered land unless the exhaust system is equipped with a spark arrester meeting applicable local, state, or federal laws. •...

  • Page 12: Carbon Monoxide

    Safety Information Carbon Monoxide DANGER! Engine exhaust fumes contain Carbon Monoxide. This is a poisonous gas and can kill in minutes. NEVER use inside a building or in an area with poor ventilation. NEVER use inside a confined space, such as but not limited to a house, garage, vehicle, boat or tent. ONLY use outside and far away from windows, doors and vents.
  • Page 13 Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form. Should you come in to contact with electrolyte you should;...

  • Page 14: Fuel Safety

    Safety Information Fuel Safety CAUTION! ALL FUELS ARE HIGHLY FLAMMABLE AND PETROL VAPOUR IS EXPLOSIVE. TAKE EXTREME CARE WHEN HANDLING FUEL. KEEP FUEL OUT OF REACH OF CHILDREN. General Safety General Safety • Do not smoke each time fuel is handled. •...
  • Page 15 Safety Information Fueling / De-Fueling • ALWAYS fuel and de-fuel in a well ventilated area outside of buildings. Use a funnel to add fuel, only outdoors. Do not smoke during this and each time fuel is handled. • Add fuel before igniting the engine, never remove the fuel tank cap or add fuel whilst the engine is running or when it is hot.
  • Page 16 Safety Information Electrical Safety (Where Applicable) DANGER! ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;...
  • Page 17 Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.

  • Page 18: Personal Protective Equipment

    Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g.

  • Page 19: Intended Use

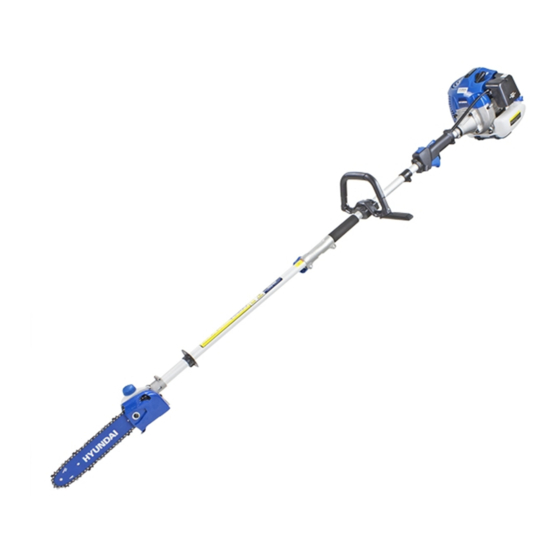

    Safety Information Intended Use The HYPS5200X is a petrol powered pole saw from HYUNDAI and is powered by a 52cc 4-stroke OHV petrol engine. The multi-tool is manufactured according to the latest safety requirements. Every precaution is only effective when it is followed exactly.

  • Page 20: Symbols On The Machine

    Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment.
  • Page 21 Safety Information Symbols On The Machine (Continued) CE SYMBOL WARNING This product complies with the Petrol is highly flammable! applicable European directives Explosion hazard! Do not spill fuel! and an evaluation method of conformity for these directives was done. WARNING WARNING The cutting tool continues running Turn the appliance off and...
  • Page 22 Features HYPS5200X Features *NOT TO SCALE www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...
  • Page 23 Features HYPS5200X Features Engine Handle Hedge Trimmer Extension Pole Tool Kit Hex Key 4mm Hex Key 5mm 8mm/10mm Spanner Spark Plug Box Spanner/ Screwdriver Harness Hedge Trimmer Protector Pole Pruner Protector Mixing Bottle www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...

  • Page 24: Box Contents

    Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired.

  • Page 25: Assembly Safety

    Assembly Assembly Safety CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI machine. We always advise reading the manual in full before operation. CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – poisonous, colourless and odourless gas that can cause serious injury or death.
  • Page 26 Assembly Step 1 : Engine Unit Handle You will need 5mm hex key. Remove four bolts from handle. Put rubber bush around boom and line up the hole with a hole on the underside of boom. See image 1. Place handle clamp over bush and insert peg on clamp into one of the holes. See image 2. Place the handle on to the bottom clamp and evenly tighten the four hex bolts.
  • Page 27 Assembly Step 2 : Harness Attach harness using quick release mechanism. See image 1. The black clamp can be loosened with 4mm hex key and adjusted back and forth to get the required balance of the machine. The white buckle goes to the front of your body. See image 2. Always use the harness when working with the machine.
  • Page 28 Assembly Pole Saw Attachment Using 10mm spanner, remove nut from the cover (anticlockwise). Wearing thick gloves, fit the cutting chain over the drive sprocket, as shown. Fit the bar and feed the inner teeth of the chain into the slot which runs around the bar. Make sure the adjustment peg sits in the hole on the bar as indicated.
  • Page 29 Assembly Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 aftersales@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk 01646 687 880...

  • Page 30: Before Each Use

    Preparation Before Each Use YOU MUST read and understand the full safety instruction manual before starting the machine. CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – poisonous, colourless and odourless gas that can cause serious injury or death. Petrol is highly flammable, always handle with extreme care and in a well ventilated area.

  • Page 31: Fuel And Oil

    Preparation Fuel And Oil This is a 2-stroke stroke engine and will need 2 stroke oil mixed with the unleaded petrol. The mix is 40 parts petrol to 1 part oil. (40:1). i.e. 1 litre of petrol requires 25ml of (semi-synthetic) 2 stroke oil.

  • Page 32: Operation

    Operation Connecting Attachments To Motor Unit Loosen off the blue hand screw. Slide in attachment, it will only go in one way, so do not force it. Slide it in to the red line as shown. Firmly tighten blue hand screw. Connecting Extension Boom The extension boom is attached between the motor unit and the tool being used to increase the height you can reach.

  • Page 33: Preventing Kickback

    Operation Using The Pruning Saw CAUTION: Use extreme care whilst using this attachment, especially around children and pets. CAUTION: Be aware of overhead power/telephone wires Always check the tension of the cutting chain before use. This tool is only for pruning trees. Do not cut wood lying on the ground. Hold the saw firmly in two hands and make sure you have secure footing.

  • Page 34: Cold Start

    Starting / Stopping NOTE - This machine is shipped without fuel and oil and MUST be filled before use. Failure to do so may cause damage to the engine that will not be covered by warranty. Cold Start Pump the primer bulb under the carburetor 6 times. Slide the on/off switch back to (I).
  • Page 35 Starting / Stopping Image 1 Image 2 Image 3 Image 4 Image 5 www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...

  • Page 36: Maintenance Safety

    Maintenance Maintenance Safety IMPORTANT - Routine and accurate maintenance is essential for maintaining original machine safety and performance levels. WARNING - Before cleaning or doing maintenance work, you need to stop the engine, disconnect the spark plug cable and read the relevant instructions. You need to wear proper clothing and protective gloves whenever your hands are at risk.

  • Page 37: General Cleaning

    Maintenance Cleaning CAUTION - DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the fuel system. NOTE Engine must be switched off and spark plug lead disconnected. General Cleaning •...

  • Page 38: Short-Term Storage

    Maintenance Storage Where To Store Store in a cool, dry place away from sources of ignition and varying changes in temperature. DO NOT stack other items on top of the machine when in storage. The protectors must be fitted for transport and storage Store the machine in a safe place, out of the reach of children or anyone who is not familiar with operation.
  • Page 39 Maintenance Preparation To Re-Use Remove the spark plug. Pull the starter pull cord quickly in order to remove any excess oil from the combustion chamber. Clean the spark plug and observe the correct electrode gap on the spark plug. Fill the fuel tank. Transportation Whenever the machine is to be handled, lifted, transported or tilted, you must: Wear sturdy work gloves.
  • Page 40 Maintenance Pole Saw Oil You can adjust the amount of oil that is applied to the chain by turning this screw. It has 3 positions. The middle is the factory set position. Push and click anticlockwise for more oil. Push and click clockwise for less oil. Check the oiling system is working by holding and running the saw blade close to a surface.

  • Page 41: Air Filter

    Maintenance Air Filter CAUTION - A dirty air filter will restrict the air flow to the carburettor, which will reduce engine efficiency. When using the machine in very dusty areas you must clean or replace the air filter more often. Never operate the machine without the air filter being fitted it can cause damage to the engine which is not covered by warranty.

  • Page 42: Lubricating The Chain

    Maintenance Lubricating The Chain Remove the oil filler cap. Fill oil tank with organic chain oil. The chain lubrication can be increased or decreased using the oil adjusting screw. Press and then turn the oil adjusting screw clockwise to decrease the chain lubrication. Press and then turn the oil adjusting screw anticlockwise to increase the chain lubrication.

  • Page 43: Maintenance Schedule

    Maintenance The figures given here are based on normal operating conditions. In the event of more difficult conditions, such as strong dust generation and longer daily operating hours, the given intervals are to be reduced correspondingly. Where necessary, all corrective actions should be carried out by a suitably qualified person. Maintenance Schedule Appliance Before...

  • Page 44: Technical Data

    Technical Data Engine Specifications Engine Type 2-Stroke Engine, Air-Cooled Engine Output (Max.) 1.45kW / 2.0hp Engine Size 51.7cc Engine Idle Speed 3000rpm Engine Speed (Max.) With Chainsaw : 9200rpm With Hedge Trimmer : 9200rpm Max. Cutting Speed With Chainsaw : 20m/s With Hedge Trimmer : 1550rpm Ignition Electronic...

  • Page 45: Noise Information

    Technical Data Noise Information Hedge Trimmer Pole Pruner Sound Pressure Level LpA 99.47dB(A) 99.5 Uncertainty KWA 2.5dB Sound Power Level LWA 110.05dB(A) 111.54 Guaranteed Sound Power 114dB(A) Level LWA Uncertainty KWA 2.5dB Vibration Information Pole Pruner Vibration On Front Handle Vibration Emission Value a = 7.41m/s²...

  • Page 46: Recycling And Disposal

    Recycling And Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 47: Declaration Of Conformity

    Declaration Of Conformity www.hyundaipowerproducts.co.uk 01646 687 880 aftersales@hyundaipowerproducts.co.uk...

  • Page 48: Useful Information

    Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated.
  • Page 49 Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps...

  • Page 50: Product Information

    Product Information Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. The model number and serial number can be found on the grey specification sticker on your machine.
  • Page 51 Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.
  • Page 52 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
