Echoflex Installation Guide
Multi-Button Interface Switch Station
Overview

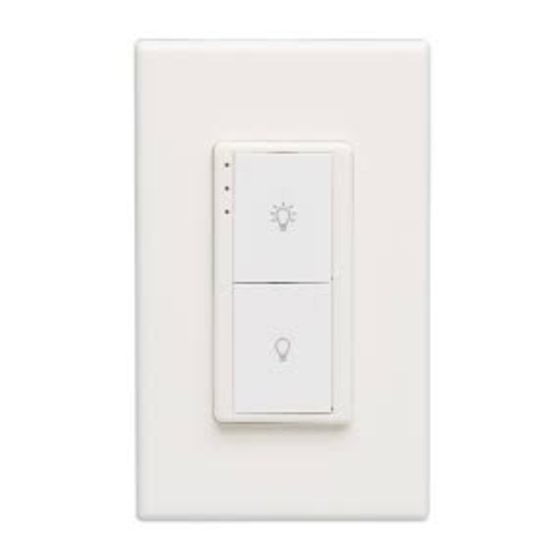

The Multi-Button Interface switch station (MBI) uses wireless technology to
communicate with compatible Echoflex controllers to manage lighting and
dimming commands. The MBI Switch is available in different button

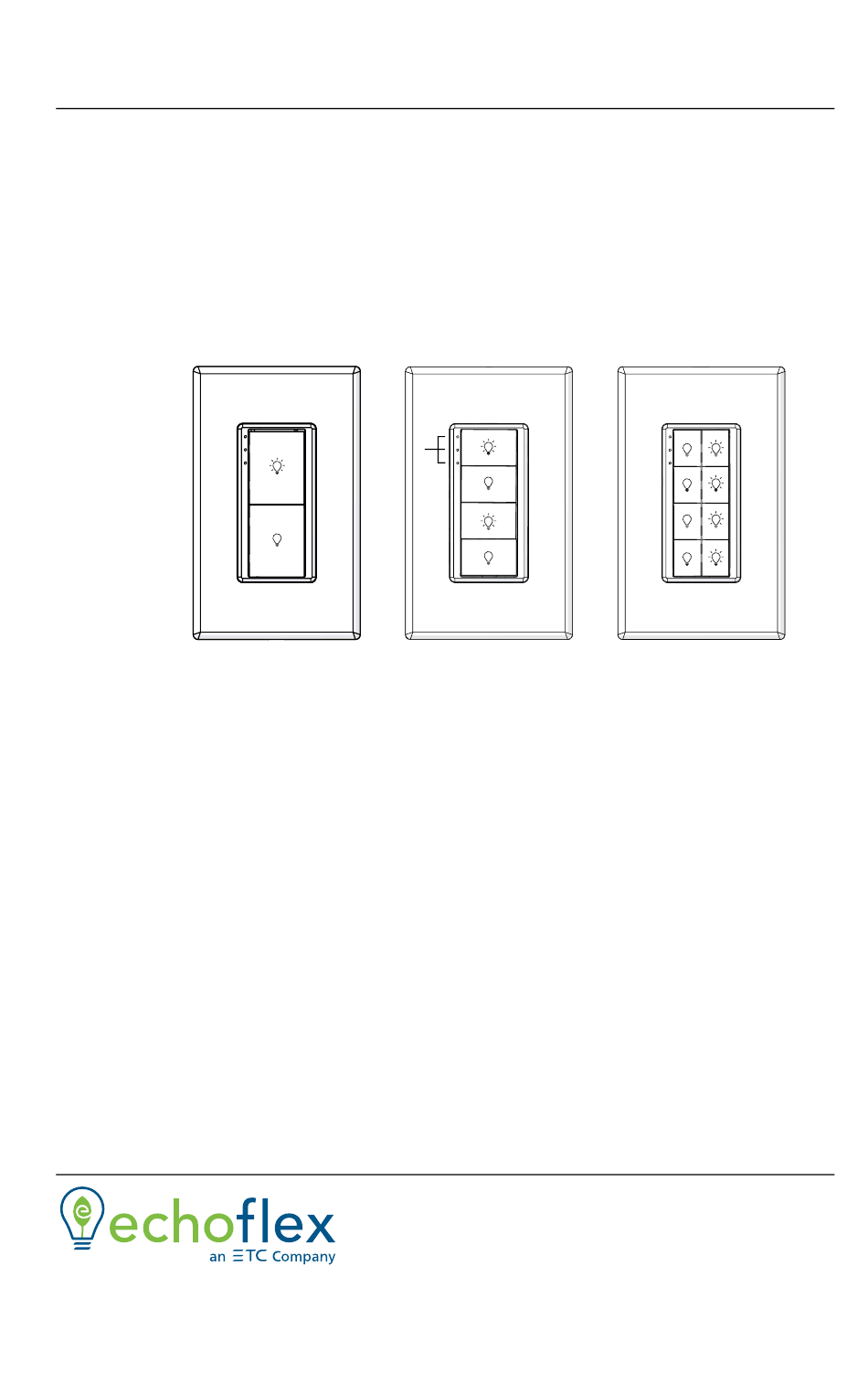

configurations, radio frequencies, and colors. Each pair of buttons can be
linked to different controllers to manage multiple circuits from one station.
Each button is labelled for its function and color LEDs indicate working
status.
This document guides you through the installation process and basic setup
for all MBI Switch models.
Prepare for Installation
Echoflex recommends paying special attention to the installation
environment:
• For indoor use only. Operating temperature -10°C to 45°C (14°F to
113°F), 5% to 92% relative humidity (non-condensing).
• The switch should be installed in the same space as the device that
controls its light fixtures or circuits.
• High density construction materials and large metal appliances or
fixtures in the space may disrupt wireless transmissions.
• CR2032 coin cell battery is supplied with the switch. Install the battery
or activate it if factory-installed by removing the protective plastic tab
in the battery housing. See
Main Office Squamish, BC, Canada Phone +1 778 733 0111
Email
info@echoflexsolutions.com
© 2021 Echoflex Solutions, Inc. Trademark and patent info:
Echoflex intends this document to be provided in its entirety.
Product information and specifications subject to change.
8188M2130 Rev A Released 2021-03
LEDs
Web
echoflexsolutions.com
echoflexsolutions.com/ip
on
page
3.
