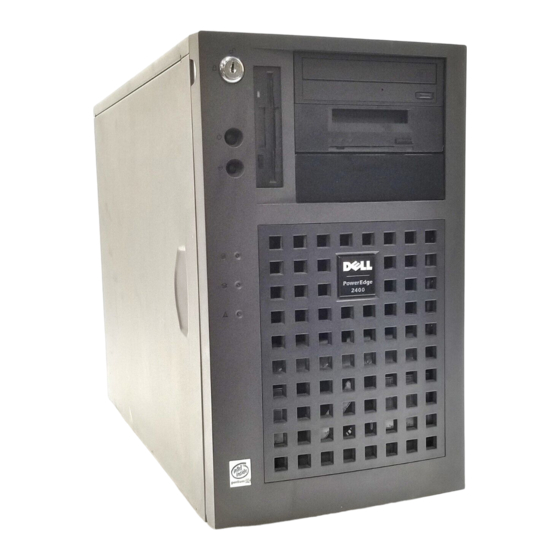

Summary of Contents for Dell 2400
- Page 1 'HOOΠ3RZHU(GJHΠDQG 6\VWHPV 0,&52352&(6625 83*5$'( ,167$//$7,21 *8,'( ZZZGHOOFRP VXSSRUWGHOOFRP...
- Page 2 Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden. Trademarks used in this text: Dell, the DELL E COM logo, and PowerEdge are trademarks of Dell Computer Corporation; Intel and Pentium are registered trademarks of Intel Corporation.
- Page 3 PowerEdge 2400 ........
- Page 4 Figure 1-7. Figure 1-8. DELL CONFIDENTIAL - Preliminary Removing the SEC Cartridge and Heat Sink From the PowerEdge 2450 ........1-10 Installing the SEC Cartridge and Heat Sink Into the PowerEdge 2450 .
- Page 5 DQG 6\VWHPV ³ 0LFURSURFHV VRU 8SJUDGH ,QVWDOODWLRQ *XLGH This document provides information on upgrading and installing microprocessors in Dell PowerEdge 2400, 2450, and 4400 systems. 3UHFDXWLRQDU\ 0HDVXUHV Before you perform any of the procedures in this document, take a few moments to read the following warning for your personal safety and to prevent damage to the sys- tem from electrostatic discharge (ESD).
- Page 6 The upgrade procedure requires a #2 Phillips screwdriver. In addition, use a wrist- grounding strap for ESD protection. 5HFRUGLQJ WKH 6\VWHP &RQILJXUDWLRQ View the system configuration screens in the System Setup program and make a record of the settings. DELL CONFIDENTIAL - Preliminary Microprocessor Upgrade Installation Guide Š Š 9/11/00...
- Page 7 If an ESM firmware diskette is included with the upgrade kit, update your ESM firm- ware with the version contained on that diskette by performing the following steps. The latest version of the ESM firmware is available at http://support.dell.com. Insert the ESM firmware diskette into the diskette drive.
- Page 8 See your system Installation and Troubleshooting Guide for specific instructions, if needed. Remove the cooling shroud as follows: DELL CONFIDENTIAL - Preliminary Microprocessor Upgrade Installation Guide Unscrew and remove the two retention pins (see Figure 1-1). Remove the shroud by lifting the end of the shroud closest to the micropro- cessor(s) until the opposite end of the shroud disengages from the cooling fan on the system’s back panel (see Figure 1-1).
- Page 9 (2) )LJXUH 5HPRYLQJ WKH &RROLQJ 6KURXG )URP WKH 3RZHU(GJH Remove the SEC cartridge and heat sink as follows. DELL CONFIDENTIAL - Preliminary support.dell.com Pull the tab on one side of the guide-bracket assembly away from the end of the heat sink and pull up slightly on the SEC cartridge and heat sink (see Figure 1-2).
- Page 10 Lower the other end of the shroud into place over the microprocessor(s). Secure the shroud by reinstalling the two retention pins. DELL CONFIDENTIAL - Preliminary Microprocessor Upgrade Installation Guide guide-bracket...
- Page 11 "Using the System Setup Program" in your User's Guide for accessing and modi- fying entries in the System Setup screens. Reset the chassis intrusion detector while in the System Setup program by changing Chassis Intrusion to Not Detected. DELL CONFIDENTIAL - Preliminary support.dell.com guide-bracket assembly...
- Page 12 NOTE: If a setup password has been assigned by someone else, contact your network administrator for information on resetting the chassis intrusion detector. Run the Dell Diagnostics to verify that the new microprocessor is operating correctly. See your User’s Guide and your Installation and Troubleshooting Guide for additional information on running the Dell Diagnostics and troubleshooting any problems that may occur.
- Page 13 )LJXUH 5HPRYLQJ WKH $LU %ORZHU Remove the SEC cartridge and heat sink as follows. DELL CONFIDENTIAL - Preliminary support.dell.com air blower power supply enclosure Pull the tab on one side of the guide-bracket assembly away from the end of the heat sink and pull up slightly on the SEC cartridge and heat sink (see Figure 1-5).
- Page 14 )LJXUH 5HPRYLQJ WKH 6(& &DUWULGJH DQG +HDW 6LQN )URP WKH 3RZHU(GJH DELL CONFIDENTIAL - Preliminary 1-10 Microprocessor Upgrade Installation Guide guide-bracket assembly SEC cartridge 9/11/00...
- Page 15 Replace the air blower housing assembly, if it was removed in step 3 of the previous procedure. Replace the system cover. Reconnect your system and peripherals to their power sources. DELL CONFIDENTIAL - Preliminary support.dell.com SEC cartridge tabs (2) 9/11/00...
- Page 16 *XLGH Remove the computer cover. Remove the cooling shroud. Lift the latches on each end of the guide-bracket assembly (see Figure 1-7). DELL CONFIDENTIAL - Preliminary 1-12 Microprocessor Upgrade Installation Guide 'HOO 3RZHU(GJH 6\VWHPV ,QVWDOODWLRQ DQG 7URXEOHVKRRWLQJ...
- Page 17 (Rev. 11/3/98) FILE LOCATION: S:\SYSTEMS\SlimFast\ts\ProcUpgrade\028WD\028wdeb0.fm terminator card retention clips (2) latches (2) guide-bracket assembly )LJXUH 5HPRYLQJ D 7HUPLQDWRU &DUG DELL CONFIDENTIAL - Preliminary 9/11/00 support.dell.com Microprocessor Upgrade Installation Guide 1-13...
- Page 18 Lift the latches on each end of the guide-bracket assembly. Pivot the retention clips away from the guide-bracket assembly. Slide the SEC cartridge and heat sink assembly out of the guide-bracket assembly. DELL CONFIDENTIAL - Preliminary 1-14 Microprocessor Upgrade Installation Guide 'HOO 3RZHU(GJH 6\VWHPV...
- Page 19 Replace the cooling shroud and computer cover. guide bracket assembly )LJXUH 5HSODFLQJ DQ 6(& &DUWULGJH DQG +HDW 6LQN $VVHPEO\ DELL CONFIDENTIAL - Preliminary support.dell.com heat sink SEC cartridge retention clips (2)
- Page 20 (Rev. 11/3/98) FILE LOCATION: S:\SYSTEMS\SlimFast\ts\ProcUpgrade\028WD\028wdeb0.fm DELL CONFIDENTIAL - Preliminary 9/11/00 1-16 Microprocessor Upgrade Installation Guide...
