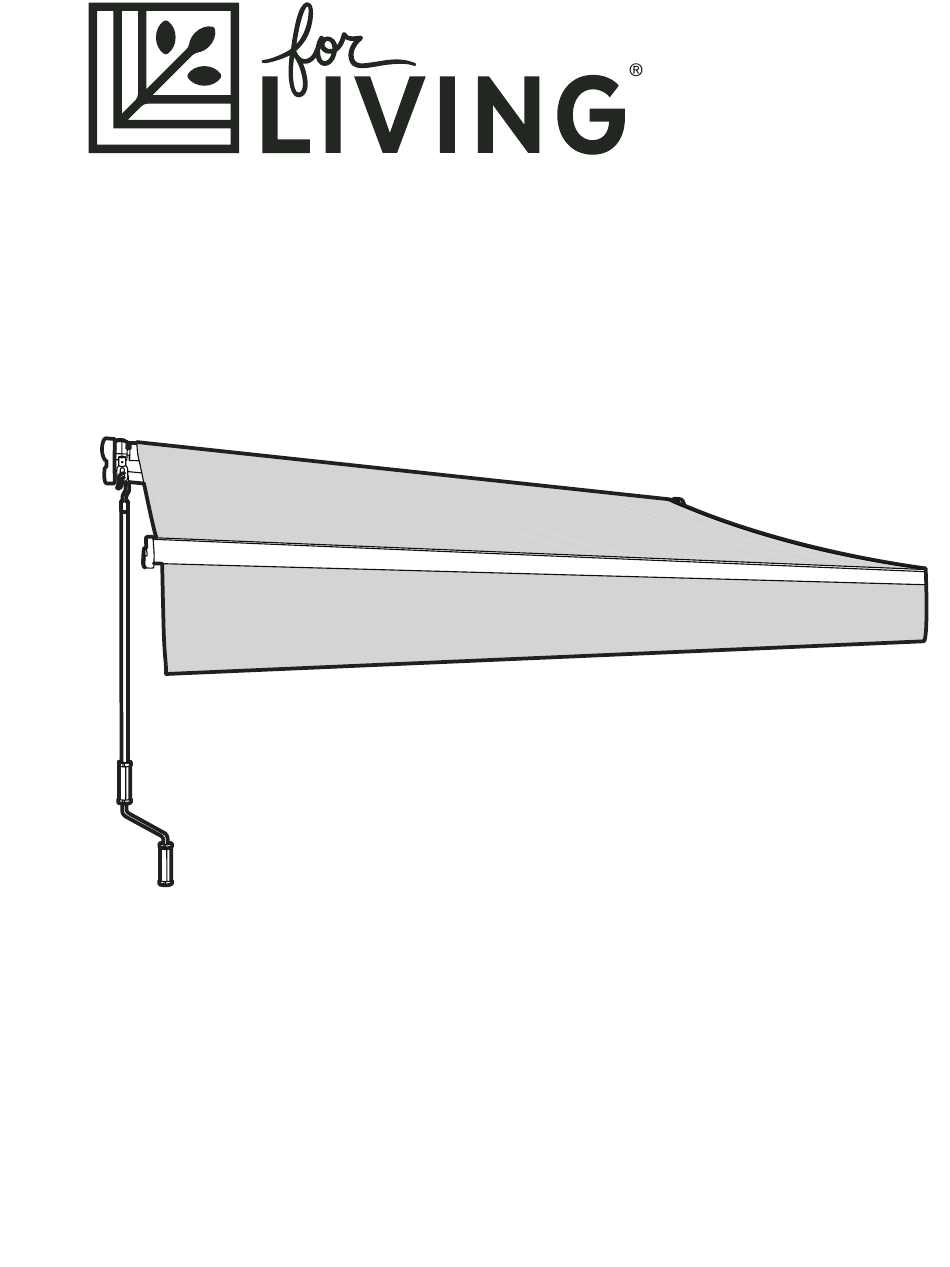

MANUAL AWNING
12 x 10' (3.6 x 3 m)
Product No. 088-2182-6
Assembly Instructions
Toll-free: 1-877-483-6759
Please read and understand this manual before any assembly or use of this product.
Before beginning assembly of product, make sure all parts are present.
Questions?
If you have any questions or need replacement parts, please call our toll-free helpline.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 088-2182-6 and is the answer not in the manual?

Questions and answers

Related Manuals for for Living 088-2182-6

Summary of Contents for for Living 088-2182-6

  • Page 1 MANUAL AWNING 12 x 10' (3.6 x 3 m) Product No. 088-2182-6 Assembly Instructions Toll-free: 1-877-483-6759 Please read and understand this manual before any assembly or use of this product. Before beginning assembly of product, make sure all parts are present.
  • Page 2 Product No. 088-2182-6 Table of Contents Features Technical Data Important Safety Instructions Package Contents Parts Location Before Installation Installation Operation Cleaning and Maintenance Warranty Manual operation with crank handle ● 10’ (3 m) projection with angle adjustment ● Weather-resistant polyester fabric ●...
  • Page 3 Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the awning. CAUTION! Always keep children under close supervision when they are playing near the awning. Never leave children unattended. Keep children and pets away while setting up the awning. CAUTION! Check your municipal by-laws prior to setting up the awning.
  • Page 4 Product No. 088-2182-6 Name Illustration Qty. Wall bracket Crank wand Awning frame Expanding bolt Flat washer Spring washer M12 Nut Lead sleeve Fastening bolt set (with M10 nut) Drill bit...
  • Page 5 Name Qty. Wall bracket Crank wand Awning frame Supporting bar Fabric Right arm Valance Level Front bar Left arm Easy angle system Jack bolt Locking nut...

  • Page 6: Unpacking Instructions

    Product No. 088-2182-6 WARNING! Read the instructions carefully before beginning any assembly and make sure you ● understand each step. Keep children and pets away during assembly. This product contains small parts that ● can be swallowed by children. While assembling the awning, keep your fingers away from areas where they can be ●...
  • Page 7 Choosing a Location for the Awning 1. Choose an appropriate place on the wall at least 10’ (3 m) above the ground. 2. Mark the chosen height and draw a 12’ (3.7 m) horizontal line matching the awning frame. Mark the left and right endpoints of the line. See figure below. ≥...

  • Page 8: Mounting The Wall Brackets

    Product No. 088-2182-6 1. Installing the expanding bolts CAUTION! Before drilling, ensure that there are no electrical wires or water pipes behind the drill spots. ● Wear protective goggles, mask, and hearing protection while drilling the holes. ● Install all wall brackets supplied with your awning for secure mounting.

  • Page 9: Installing The Awning

    3. Installing the awning Lift the awning and insert the supporting bar (4) into the wall brackets (1). ● Make sure that the middle bracket is located at the centre of the supporting bar of the awning frame. ● CAUTION! When placing the awning on the wall, the crank loop should be facing downward, perpendicular to the ground.
  • Page 10 Product No. 088-2182-6 5. Inserting the crank wand Hook the crank wand (2) into the crank loop. The awning is installed and ready to use. ● ● 1. Opening and closing the awning Turn the crank wand (2) clockwise to retract the fabric.
  • Page 11 Note: Make sure the crank handle is parallel to the wall. If the handle is angled, the awning will ● not open or close. Always remove the crank wand from the crank loop and store it in a safe place when ●...

  • Page 12: Maintenance

    Product No. 088-2182-6 Cleaning the awning frame Use a mild detergent and warm water to clean the frame. Do not use abrasive cleansers, chemicals, ● bleach, or solvents. Rinse the frame with clean water. ● Dry the frame thoroughly. ●...
  • Page 13 This product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
