Summary of Contents for Hans Grohe Talis M51 200 2jet 72813007

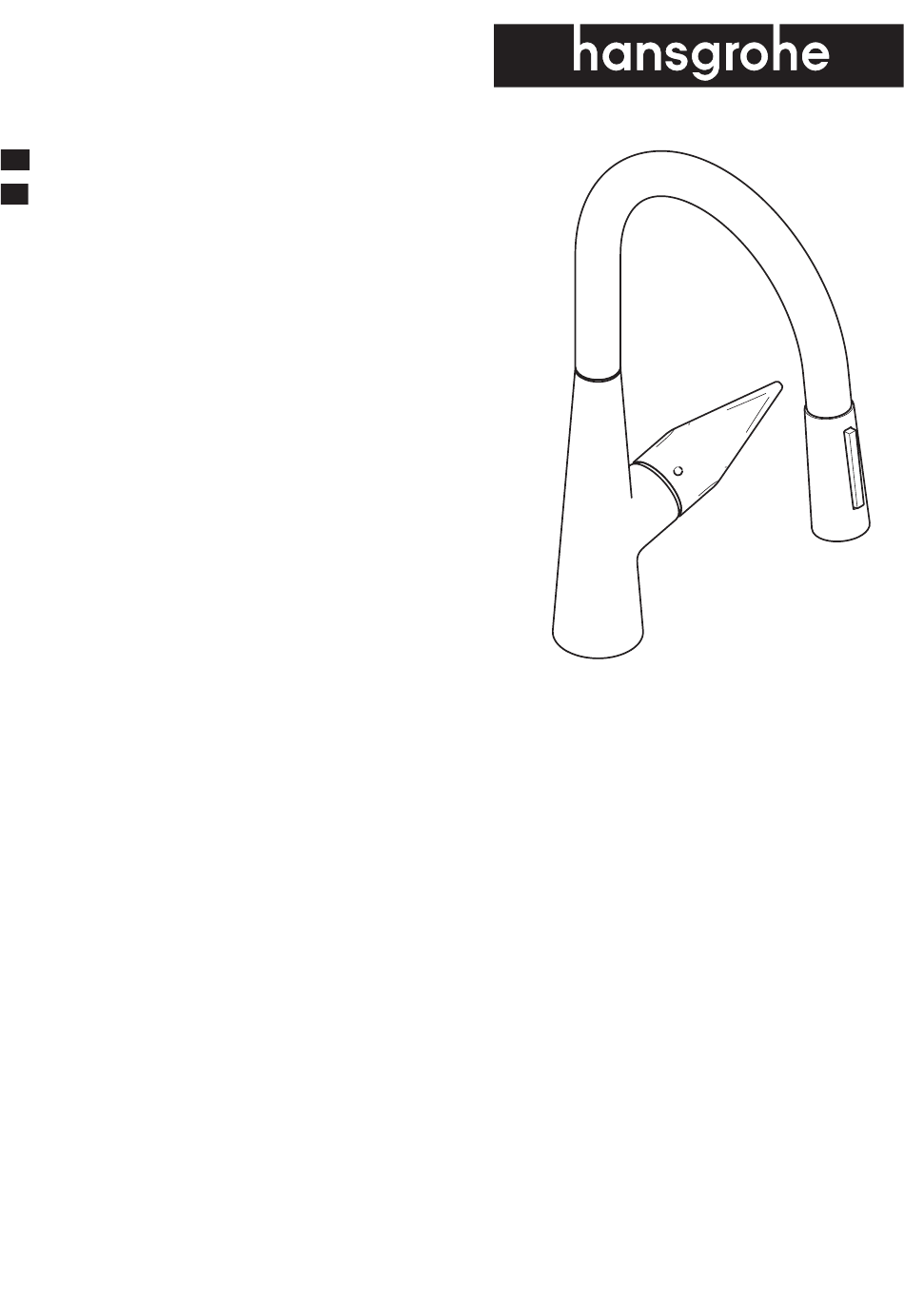

- Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / assembly instructions Talis M51 200 2jet 72813007...
- Page 2 中文 符号说明 安全技巧 请勿使用含有乙酸的硅胶！ 装配时为避免挤压和切割受伤，必须戴上手 套。 调节 (参见第页 8) 冷热水管间过大的压力差必须予以平衡。 热水温度调节。如果使用即热式喷头，则不建议 安装提示 安装热水阀门。 • 安装前必须检查产品是否受到运输损害。 安装 清洗 (参见第页 10) 后将不认可运输损害或表面损伤。 • 管道和阀门必须根据通用标准进行安装、冲洗 保养 (参见第页 12) 和检查。 • 请遵守当地国家现行的安装规定。 单向阀必须在符合国家或当地的法律的情况下按 照EN 806-5定期检查 (至少一年一次) 。 技术参数 大小 (参见第页 13) 1 MPa 工作压强： 最大 0,1 - 0,5 MPa 推荐工作压强： 流量示意图 (参见第页 13) 1,6 MPa 测试压强： (1 MPa = 10 bar = 147 PSI) 备用零件 (参见第页 14) 70°C 热水温度： 最大...
-
Page 3: Safety Notes
English Symbol description Safety Notes Do not use silicone containing acetic acid! Gloves should be worn during installation to prevent crushing and cutting injuries. Adjustment (see page 8) The hot and cold supplies must be of equal To adjust the hot water limiter. Using a hot water limiter pressures. in combination with a continuous flow water heater is Installation Instructions not recommended. • Prior to installation, inspect the product for transport Cleaning (see page 10) damages. After it has been installed, no transport or surface damage will be honoured. Maintenance (see page 12) • The pipes and the fixture must be installed, flushed The check valves must be checked regularly according and tested as per the applicable standards. to EN 806-5 in accordance with national or regional • The plumbing codes applicable in the respective regulations (at least once a year). countries must be observed. Dimensions (see page 13) Technical Data Operating pressure: max. 1 MPa Flow diagram (see page 13) Recommended operating pressure: 0,1 - 0,5 MPa Test pressure:... - Page 4 (3 Nm) 150° SW 10 mm SW 24 mm (4 Nm) 110°...
- Page 5 150° 75° 75° 24 x 15° 105° 45° 105° 45°...
- Page 6 110° 110° 55° 55° 24 x 15° 85° 25° 85° 25°...
- Page 7 CLICK (1 Nm) > 2 min...
- Page 8 60 °C 10 °C 0,3 MPa 36°C 38°C 50°C 60°C 43°C 55°C 17 x...
- Page 9 开 / open 关 / close 热 / hot 冷 / cold...
- Page 10 • • • • Hansgrohe • Hansgrohe • www.hansgrohe-int.com/guarantee • • QuickClean • QuickClean • • QUICK CLEAN...
-
Page 11: Warranty
English Cleaning Recommendation for Hans- • After cleaning rinse thoroughly with clean water to remove any cleaner residue. grohe Products • The use of steam cleaners is not permitted. The high Today, modern sanitary and kitchen tapware, showers, temperatures can damage the products. accessories, washstands, tubs and radiators consist of Important very different materials to comply with the needs of the... - Page 13 Talis M51 200 2jet 72813007 Ø Ø Ø Ø 34 G 1/2 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 Q = l/min 9 12 15 18 21 24 27 30 Q = l/sec...
- Page 14 Talis M51 200 2jet 72813007 92731000 (110°/150°) 98127000 97735000 (11x2) 98193000 98365000 92691000 (32x2) 98211000 (21x2,5) 96338000 95498000 92730000 97209000 94074000 98422000 (7x1,5) 95008000 95140000 92732000 95909000 98140000 92582000 (20x1) 95910000 97489000 (900 mm) 97523000 97827000 (8x1,75) 95561000 (600 mm) 97548000 95049000 95507000 (1,50 m) 98551000...
- Page 16 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
