QUICK
INSTALLATION

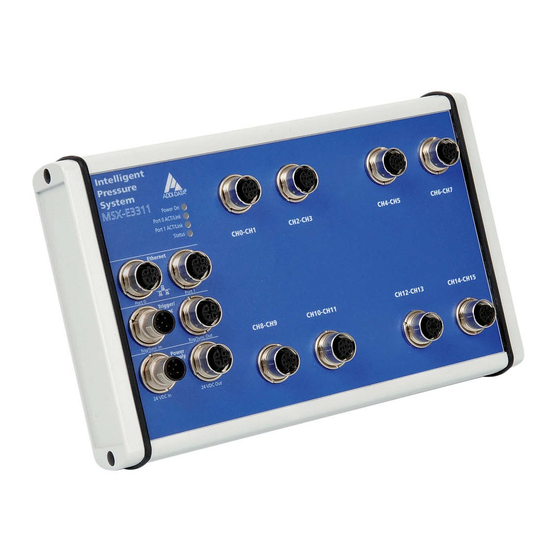

MSX-E3311
Ethernet system for pressure and force
measurement
02.06 - 01/2016
Addi-dAtA GmbH · Airpark Business Center · Airport Boulevard B210 · 77836 Rheinmünster · Germany
Phone: +49 7229 1847-0 · Fax: +49 7229 1847-222 · info
addi-data.com · www.addi-data.com
@
Advertisement
Related Manuals for Addi-Data MSX-E3311
Summary of Contents for Addi-Data MSX-E3311
- Page 1 MSX-E3311 Ethernet system for pressure and force measurement 02.06 - 01/2016 Addi-dAtA GmbH · Airpark Business Center · Airport Boulevard B210 · 77836 Rheinmünster · Germany Phone: +49 7229 1847-0 · Fax: +49 7229 1847-222 · info addi-data.com · www.addi-data.com...
- Page 2 As soon as the “Status” LED lights green, you can install the software (see page 5). (B) Sensor inputs (0 to 15) (E) LED display Intelligent Pressure System CH0-CH1 CH2-CH3 CH4-CH5 CH6-CH7 Ethernet ports Trigger/ Synchro CH8-CH9 CH10-CH11 CH12-CH13 CH14-CH15 Power supply CMX-20: Power supply cable www.addi-data.com...
-
Page 3: Pin Assignment
Female connector, Lead Lead Pin No. 5-pin, M12 5-pin, M12 colour pair Trigger input - Trigger input - blue Trigger input + Trigger input + white Synchro input + Synchro output + Synchro input - Synchro output - black www.addi-data.com... -
Page 4: Power Supply
24 V 24 V brown 24 V 24 V white blue black not connected not connected grey DMS inputs Cable (black) Female connector, Pin No. 8-pin, M12 Lead colour DMS1+ white DMS1- brown green yellow DMS2+ grey DMS2- pink blue www.addi-data.com... - Page 5 MSX-E system, you have to click on the green icon in the top right of the ConfigTools Explorer area. Below the “Product Information” area, there are buttons that enable you to perform various actions and to access the web interface of your MSX-E system. www.addi-data.com...
- Page 6 - Transducer Monitoring: Select the channels to be acquired and start the acquisition with monitoring. For each channel, each acquired value is immediately displayed in a diagram. NOTICE! Depending on the Ethernet system, a different number of buttons and accordingly, different types of actions are available. www.addi-data.com...
- Page 7 To open the web interface of your MSX-E system, proceed as follows: - Open a web browser (such as Mozilla Firefox, Internet Explorer, etc.) and enter the following address: http://IP address of the Ethernet system. A login window is displayed. - Enter “mxadmin” as the user name and password. www.addi-data.com...
- Page 8 Do you have any questions? Please find further information on our website: www.addi-data.com. Do not hesitate to call us or to send us an e-mail (see front page for contact data). www.addi-data.com...
