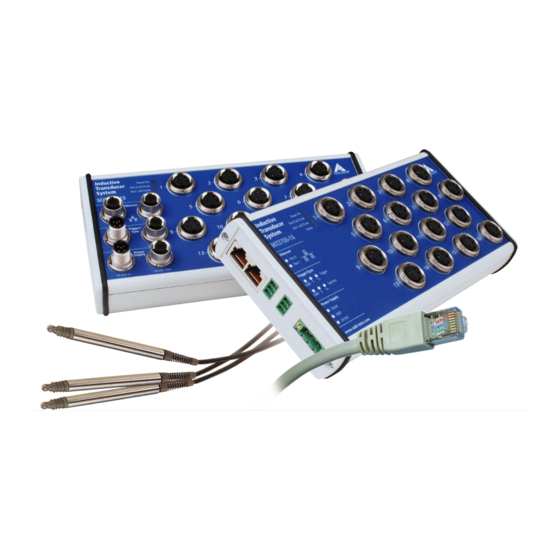

- Page 1 MSX-E3701 and MSX-E3700 Ethernet system for length measurement 02.04 - 08/2014 Addi-dAtA GmbH · Airpark Business Center · Airport Boulevard B210 · 77836 Rheinmünster · Germany tel: +49 7229 1847-0 · Fax: +49 7229 1847-200 · info addi-data.com · www.addi-data.com...
- Page 2 = Error during booting As soon as the “Status” LED lights green, you can install the software (see page 6). (B) Transducer inputs (1 to 16) (E) LED display Inductive Transducer System Ethernet ports Trigger/ Synchro Power supply CMX-20: Power supply cable www.addi-data.com...
-
Page 3: Pin Assignment
Lead Lead Pin No. 5-pin, M12 5-pin, M12 colour pair Trigger input - Trigger input - blue Trigger input + Trigger input + white Synchro input + Synchro output + Synchro input - Synchro output - black Ground Ground www.addi-data.com... -
Page 4: Power Supply
Ethernet Ethernet Port 0 Ethernet Port 1 Pin No. RJ45 connector Pin No. RJ45 connector TD0+ TD1+ TD0- TD1- RD0+ RD1+ not connected not connected not connected not connected RD0- RD1- not connected not connected not connected not connected www.addi-data.com... - Page 5 Synchro In Twisted pair Trigger input - Synchro Out Ground Ground Power supply Power Supply In Power Supply Out 3-pin terminal, 3-pin terminal, Pin No. 5.08 mm grid 5.08 mm grid 24 V 24 V Ground Ground Shield Shield www.addi-data.com...
-
Page 6: Transducer Inputs
“MSX-E Systems”. As soon as you have started the installed software tool from your computer, the connected MSX-E systems are scanned. Main window structure After scanning, all connected MSX-E systems are listed in the ConfigTools Explorer (on the left): www.addi-data.com... - Page 7 - Load General Configuration: Load a file containing the general configuration of the MSX-E system. - Save I/O Configuration: Save all function-specific settings defined on the web interface under “I/O Configuration” - Load I/O Configuration: Load a function-specific configuration www.addi-data.com...
- Page 8 - Firmware Update: Update the firmware of the MSX-E system. The required firmware file is available on the ADDI-DATA website under “Download / Driver download”. The name of the downloaded file corresponds to the firmware version. - Transducer Calibration: Calibrate transducers connected to one or more channels.
