User Manual
P860

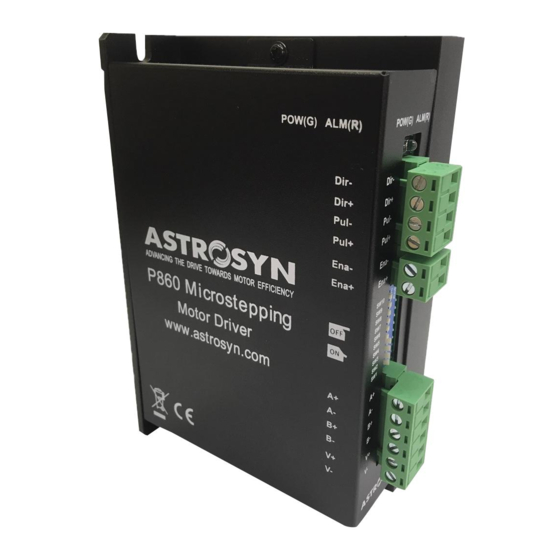

High Performance Microstepping Driver
Thank you for purchasing the Astrosyn P860 drive.
Please read this manual thoroughly before installing
and operating the driver and always keep the manual
where it is readily accessible.
Astrosyn International Technology Ltd
The Old Courthouse, New Road Avenue, Chatham, Kent ME4 6BE England
Telephone: +44 (0) 1634 815175 Fax: +44 (0) 1634 826552
Email: sales@astrosyn.com Web: www.astrosyn.com
Registered office: Montague Place, Quayside, Chatham Maritime, Kent. ME4 4QU Registered in England No. 1188550
04.06.2020 V2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Astrosyn P860
Summary of Contents for Astrosyn P860
- Page 1 User Manual P860 High Performance Microstepping Driver Thank you for purchasing the Astrosyn P860 drive. Please read this manual thoroughly before installing and operating the driver and always keep the manual where it is readily accessible. Astrosyn International Technology Ltd...
- Page 2 Table of Contents Page General Features of the Driver Applications of the Driver Specifications and Operating Environment Electrical Specifications Operating Environment and Parameters Driver Connectors, P1, P2 and P3 Control Signal Connector P1 Pins Power Connector P2 Pins Power Connector P3 Pins Power Supply Selection Maximum Voltage Input Regulated or Unregulated Power Supply...
- Page 3 1. GENERAL The P860 is a fully digital high performance microstepping driver based on the latest DSP technology. It is suitable for driving 2-phase and 4-phase hybrid stepping motors. Features of this Driver ➢ High Performance at low cost ➢ Supply voltage 24V dc to 110V dc ➢...
- Page 4 2. SPECIFICATIONS AND OPERATING ENVIRONMENT Electrical Specifications (T = 25C) Parameters Typical Remark Peak Output Current 2.8A By User 8.5A By DIP Switch Supply Voltage (DC) +24Vdc +36Vdc +110Vdc Supply Voltage (AC) 18Vac 80Vac Logic Signal Current 10mA 30mA Pulse Input Frequency 0 Hz By User 200 kHz...
- Page 5 4. POWER SUPPLY SECTION It is important to choose the appropriate power supply to make the driver operate properly Maximum Voltage Input: The internal power supply can operate from 24Vdc to 110Vdc, including power input fluctuation and back EMF voltage generated by motor coils during motor shaft deceleration, or from 18Vac to 80Vac via a transformer.
- Page 6 5. DRIVER VOLTAGE AND CURRENT SELECTION Selecting Supply Voltage: Higher supply voltage can increase motor torque at higher speeds. However, higher voltage may cause more motor vibration at lower speeds. It may also cause over-voltage protection and even damage the drive. Therefore, it is suggested to choose only sufficiently high supply voltage for intended applications.
- Page 7 On, self-tests at 30rpm. 7. DRIVER CONNECTION TO MOTOR Series Connection: P860 driver can drive any 4, 6 or 8 lead hybrid stepper motors. Series Connection: A series configuration would typically be used in applications where a higher torque at lower speeds is required.
