User Manual
P542
High Performance Microstepping Driver

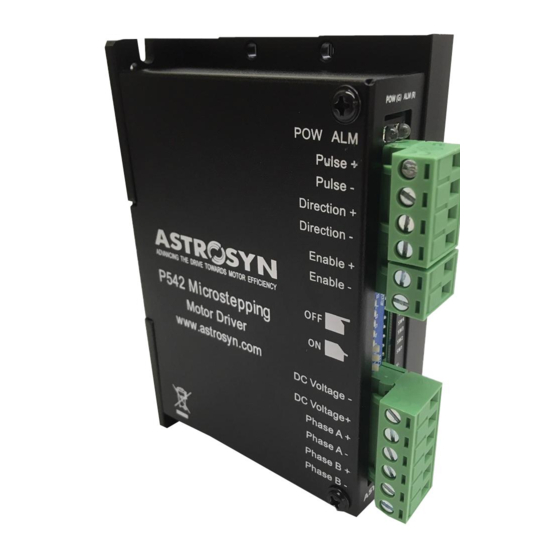

Thank you for purchasing the Astrosyn P542 drive.
Please read this manual thoroughly before installing
and operating the driver and always keep the manual
where it is readily accessible.
Astrosyn International Technology Ltd
The Old Courthouse, New Road Avenue, Chatham, Kent ME4 6BE England
Telephone: +44 (0) 1634 815175 Fax: +44 (0) 1634 826552
Email: sales@astrosyn.com Web: www.astrosyn.com
Registered office: Montague Place, Quayside, Chatham Maritime, Kent. ME4 4QU Registered in England No. 1188550
01.03.2020 v3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P542 and is the answer not in the manual?

Questions and answers

Summary of Contents for Astrosyn P542

  • Page 1 User Manual P542 High Performance Microstepping Driver Thank you for purchasing the Astrosyn P542 drive. Please read this manual thoroughly before installing and operating the driver and always keep the manual where it is readily accessible. Astrosyn International Technology Ltd...
  • Page 2 Table of Contents Page General Features of the Driver Applications of the Driver Specifications and Operating Environment Electrical Specifications Operating Environment and Parameters Driver Connectors, P1, P2 and P3 Control Signal Connector P1 Pins Power Connector P2 Pins Power Connector P3 Pins Power Supply Selection Maximum Voltage Input Regulated or Unregulated Power Supply...
  • Page 3 1. GENERAL The P542 is a fully digital high performance microstepping driver based on the latest DSP technology. It is suitable for driving 2-phase and 4-phase hybrid stepping motors. Features of this Driver ➢ High Performance at low cost ➢ Supply voltage 20V dc to 50V dc ➢...
  • Page 4 2. SPECIFICATIONS AND OPERATING ENVIRONMENT Electrical Specifications (T = 25C) Parameters Typical Remark Peak Output Current 1.0A By User 4.0A By DIP Switch Supply Voltage (DC) +20V +36V +50V Logic Signal Current 10mA 30mA Pulse Input Frequency By User 200 kHz Minimum Pulse Rate 2.5µs Operating Environment and Parameters...
  • Page 5 4. POWER SUPPLY SECTION It is important to choose the appropriate power supply to make the driver operate properly Maximum Voltage Input: The internal power supply can operate from 20V to 50V dc, including power input fluctuation and back EMF voltage generated by motor coils during motor shaft deceleration.
  • Page 6 5. DRIVER VOLTAGE AND CURRENT SELECTION Selecting Supply Voltage: Higher supply voltage can increase motor torque at higher speeds. However, higher voltage may cause more motor vibration at lower speeds. It may also cause over-voltage protection and even damage the drive. Therefore, it is suggested to choose only sufficiently high supply voltage for intended applications.
  • Page 7 7. DRIVER CONNECTION TO MOTOR Series Connection P542 drive can drive any 4, 6 or 8 lead hybrid stepper motors. Series Connection: A series configuration would typically be used in applications where a higher torque at lower speeds is required. Because this configuration has the most inductance, the performance will start to degrade at higher speeds.
