Multi-application - LiFePO4 Power
UE-24Li10BL
Issued Date
Issued Version
1. General Information
This specification defines the performance of rechargeable LiFePO4 battery pack
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack. The battery pack support Bluetooth communication function. Through Android and IOS APP, can read the
battery status and information. Especially due to the Android system's openness, different smart phone manufactu-
rer will have their own different Bluetooth hardware version and customized feature Android systems.
So the APP may not work well on some smart phones (with Android system) due to compatible issue.
It is necessary for the customer to confirm whether the phone is compatible for the APP.
2. Specification (@Battery initial Temp25±5°C)
NO.
Items
Rated Capacity
1
Minimum Capacity
2
Energy
3
Nominal Voltage
4
Outgoing Voltage
5
Internal resistance
6
Series parallel application
7
Limited charge voltage
8
Floating charge voltage
9
Standard charge current
10
Maximum charge current
Standard discharge current
11
>
2017-07-27
>
V00
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
info@upowerbatteries.com

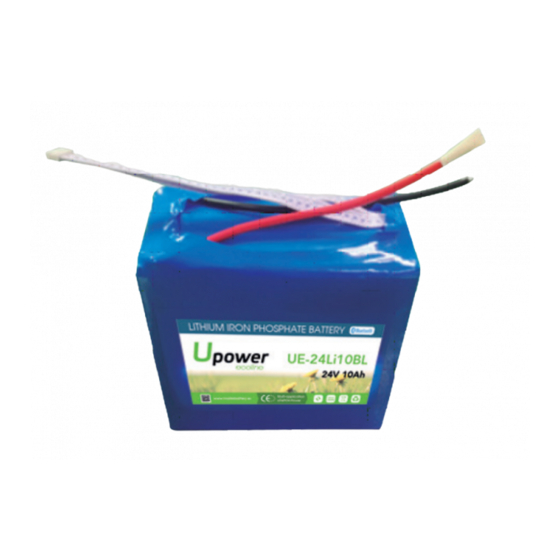

LITHIUM IRON PHOSPHATE BATTERY
UE-24Li10BL
Criteria
10Ah
9.5Ah
0.256KWh
25.6V
≥25.6V
≤60mΩ
Series connection is prohibited
29.2±0.2V
27.6±0.2V
5A
10A@Battery initial Temp 25±5°C
10A
www.upowerbatteries.com
manufactured by
01
Advertisement
Table of Contents
Related Manuals for UPOWER Ecoline UE-24Li10BL
Summary of Contents for UPOWER Ecoline UE-24Li10BL
- Page 1 LITHIUM IRON PHOSPHATE BATTERY Multi-application - LiFePO4 Power UE-24Li10BL Issued Date > 2017-07-27 Issued Version > 1. General Information This specification defines the performance of rechargeable LiFePO4 battery pack UE-24Li10BL manufactured by UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery pack.
- Page 2 UE-24Li10BL www.upowerbatteries.com Items Description Maximum discharge current 15A @Battery initial Temp 25±5°C Pulse discharge current Withstand the 30A/3s Discharge cut-off voltage Length: 150±2mm Dimension Width: 68±2mm Height: 135±2mm Weight Approx: 2.6±0.5Kg Charging: 0~45°C Operating Temperature Discharging: -20~60°C Recommended operating temperature: 15°C~35°C Residual capacity: ≤3%/month; ≤15%/years Self-discharge rate Reversible capacity: ≤1.5%/month;...
- Page 3 UE-24Li10BL www.upowerbatteries.com 4. Product Performance Items Criterion Testing method 50% battery SOC state frequency of 1 KHZ ac Internal resistance ≤130mΩ resistance tester. Discharge with the current of 0.33C until it can’t discharge, and then rest it for 1h. Charge the battery following CC (0.33C)/CV (14.6V) mode to full capacity,...
- Page 4 UE-24Li10BL www.upowerbatteries.com 6. Transportation • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery. • Battery should be stayed in the warehouse 15ºC 〜 35ºC where it’s dry, clean, shade and well-ventilated.
- Page 5 UE-24Li10BL www.upowerbatteries.com 8. Battery Operation Instruction 8.1 Charge and discharge 8.1.1 Charging current: Do not surpass the largest charging current that specification stipulated. 8.1.2 Charging voltage: Do not surpass the highest limited voltage that specification stipulated. 8.1.3 Charging temperature: within temperature scope that specification stipulated.
