Page 1
MYAMPLIFIERS.COM PHONE SIGNAL BOOSTER Nikrans LCD-1200GD SPECIFICATION Indoor coverage: 1200 m² Up-link freq: 890-915MHz & 1710-1785MHz Down-link freq: 935-960MHz & 1805-1880MHz MHz Up-link Gain: 75 dB Down-link Gain: 80 dB Power Output: Input AC90~264V,output DC5V/2A Working t °C: -25/+55 Humidity: 5 - 95 %...
Page 2

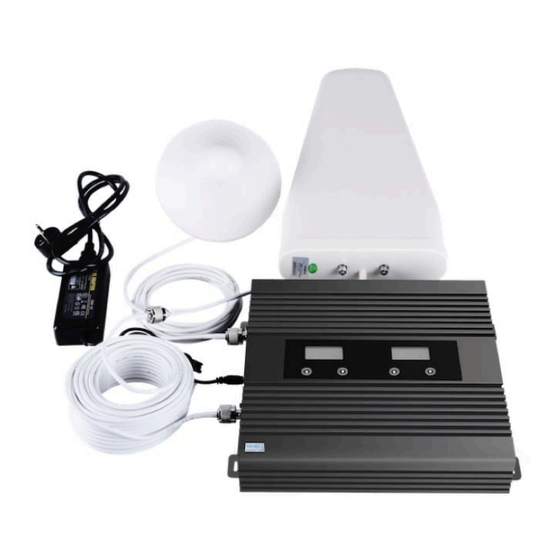

PRODUCT DESCRIPTION GSM network booster Nikrans LCD-1200GD is one of the most advanced signal boosters for improving mobile connection. The device has informative LCD screens, can save energy in stand-by mode and adjusts most important parameters automatically. LCD-1200 GD functions at 900 MHz and 1800MHz frequency bands which are GSM standards for mobile operators in all European countries and practically all over the world.
Page 3
INSTALLATION GUIDE Fix an outdoor antenna (outside the window, on the roof or wall of the building) and connect it to the booster box using a cable. Fix an indoor antenna on the ceiling and connect it to the booster box using a cable. Connect the power supply to the booster box and plug it into a power socket.
