WWW.MOBILE-SIGNAL-BOOSTERS.SHOP
PHONE SIGNAL BOOSTER
Nikrans LCD-1200GD
Calls/GSM / 3G / 4G/LTE
Indoor coverage: 13000 ft²
Frequency bandwidth of 900, 1800 MHz
https://www.mobile-signal-boosters.shop/
repeater-11/

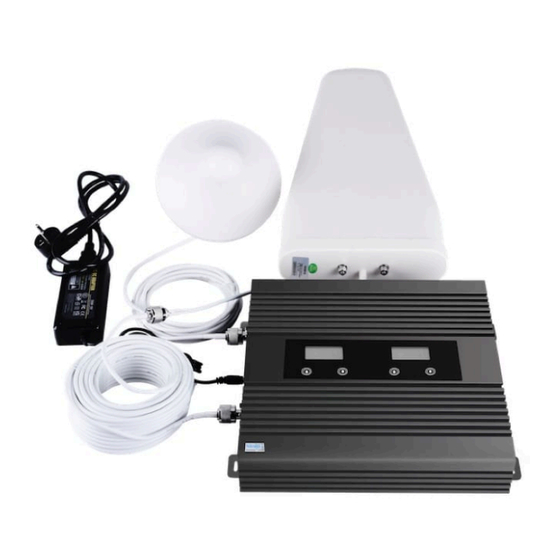

Nikrans LCD-1200GD
Free Support
3-YEAR warranty & service
30-DAY return policy
3-7 business day delivery
Chat with us
info@mobile-signal-boosters.shop
+448000698689
Indoor Antennas /
Outdoor Antennas
Safety for Human Health
Conformity to CE and RoHS standarts
Full kit ready to use
Full duplex mode (improvement of outcoming and incoming signal)
(Sales)
SPECIFICATION
Indoor coverage: 13000 ft²
Up-link freq: 890-915MHz & 1710-1785MHz MHz
Down-link freq: 935-960MHz & 1805-1880MHz MHz
Up-link Gain: 75 dB
Down-link Gain: 80 dB
Power supply: Input AC90~264V,output DC5V/2A
Working t °C: -25/+55
IP-Code: IP50
Humidity: 5 - 95 %
Size (mm): 274*265*58
Booster Weight: 4.2 kg
dBm: 27 dBm
PACKAGE
Cables
Power supply
User Manual
Advertisement
Related Manuals for Nikrans LCD-1200GD
Summary of Contents for Nikrans LCD-1200GD
- Page 1 WWW.MOBILE-SIGNAL-BOOSTERS.SHOP PHONE SIGNAL BOOSTER Nikrans LCD-1200GD SPECIFICATION Indoor coverage: 13000 ft² Up-link freq: 890-915MHz & 1710-1785MHz MHz Down-link freq: 935-960MHz & 1805-1880MHz MHz Up-link Gain: 75 dB Down-link Gain: 80 dB Power supply: Input AC90~264V,output DC5V/2A Working t °C: -25/+55...
- Page 2 PRODUCT DESCRIPTION Nikrans LCD-1200GD is one of the most advanced signal boosters for improving wireless voice communication. The device has several features, such as LCD screens, energy-saving mode, stand-by mode and auto-adjustment mode. LCD-1200 GD functions at 900 MHz and 1800MHz frequency bands which are commonly used for data transmission in the EU and other parts of the world.
- Page 3 INSTALLATION SCHEME 1. Find the best position of an outdoor antenna (on the roof/ outside the window where your mobile phone displays 2-3 bars of mobile coverage). Choose the best direction of the antenna – it’s recommended to direct it towards the nearest GSM base station.
