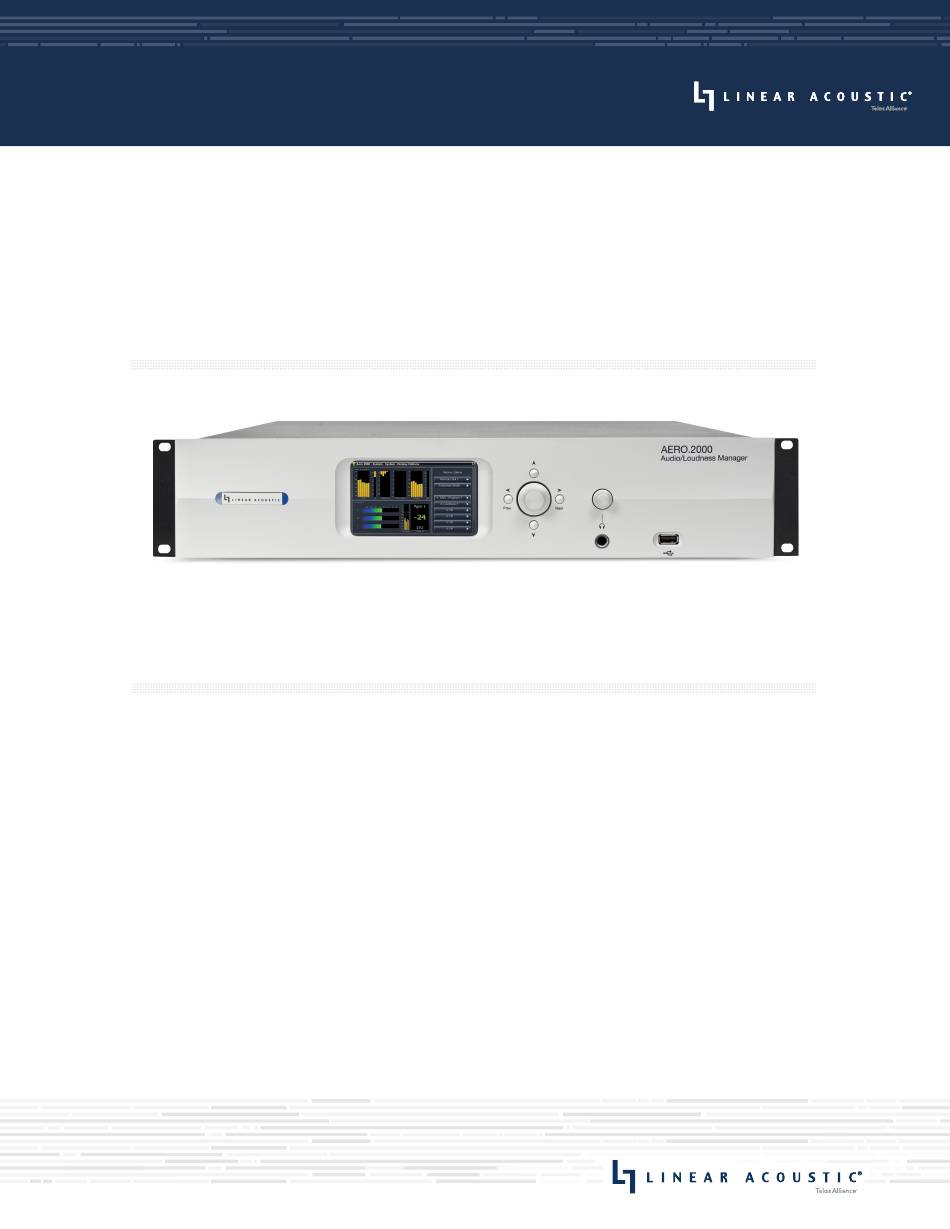

QUICK-START INSTALLATION GUIDE
LINEAR ACOUSTIC
AERO.2000
®
Audio/Loudness Manager
Quick Start Guide
(V3.19.85)
INTRODUCTION
Congratulations on your purchase of the Linear Acoustic AERO.2000.
AERO.2000 delivers the high-quality television loudness control, 2-channel to 5-channel upmixing, and
flexible signal routing expected in a Linear Acoustic processor for both PCM and Dolby®-coded audio with
available Nielsen® watermark encoding.
Like all other AERO-series products, it uses the industry-standard AEROMAX® and UPMAX®-II algorithms
to ensure a consistent and compliant output level for main channel and SAP audio without compromising
audio quality. LKFS/LUFS loudness metering and logging is provided for each program.
Advertisement
Table of Contents
Related Manuals for Telos Alliance LINEAR ACOUSTIC AERO.2000
Summary of Contents for Telos Alliance LINEAR ACOUSTIC AERO.2000
- Page 1 Quick Start Guide (V3.19.85) INTRODUCTION Congratulations on your purchase of the Linear Acoustic AERO.2000. AERO.2000 delivers the high-quality television loudness control, 2-channel to 5-channel upmixing, and flexible signal routing expected in a Linear Acoustic processor for both PCM and Dolby®-coded audio with available Nielsen®...
- Page 2 INTRODUCTION AERO.2000 is available with one or two AMX processing instances. Each instance can be of one of the following configurations: • AMX5.1 (5.1+2+2) - 5.1-channel processing for main program audio with upmixing, 2-channel processing for SAP audio and/or a downmix of the main program audio, and a second 2-channel processor for an additional program and/or main program downmix •...
- Page 3 THIS PAGE INTENTIONALLY BLANK...

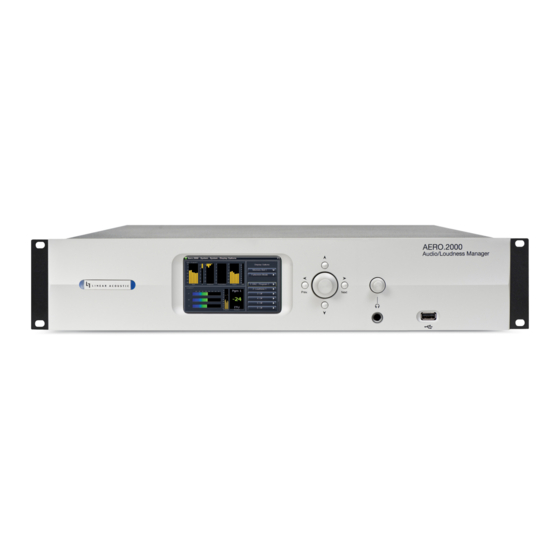

- Page 4 HARDWARE AERO.2000 Front Panel Figure 1: Front panel AERO.2000 front panel features include: • Power LED (A) behind the Linear Acoustic logo indicating the unit is receiving power from one or both power supplies • Customizable color front panel display (B) showing input and output meters, processing activity, loudness meters, and other available parameters along with the various menus •...
- Page 5 HARDWARE AERO.2000 Rear Panel Figure 2: Rear panel The rear panel of the AERO.2000 contains the following connections: • Analog I/O DB-9 connector (A), not currently used • Metadata DB-9 connector (B), not currently used • Reserved Ethernet port (C), not currently used •...
-
Page 6: Installation And Initial Setup
INSTALLATION AND INITIAL SETUP Installation AERO.2000 is a 2RU product intended to be permanently installed in a standard 19 ½” equipment rack and secured with four standard rack screws. It is fan cooled with air intakes and exhausts located on the side of the unit just behind the front panel, but whenever possible, it is recommended to leave 1RU of empty space above and below the unit. -
Page 7: Setting An Ip Address
INSTALLATION AND INITIAL SETUP Once the unit is unlocked, the main screen will be displayed. By default, most of the display is devoted to various meters and a relatively small portion is reserved for the menus. For normal operation, this layout works well but for the initial setup process, making the menu section larger will make navigating the menu easier. -
Page 8: Connecting Inputs And Outputs
INSTALLATION AND INITIAL SETUP Connecting Inputs and Outputs Connect inputs and outputs as required for your particular installation. AERO.2000 can access any of the eight audio pairs carried on an incoming HD- or SD-SDI stream and provide de-embedding and pair shuffling at its input. -
Page 9: Remote Connection
AERO.2000 if you do so. NfRemote can be used to connect to any Telos Alliance product that utilizes the client, and an almost infinite number of connections can be stored within a single NfRemote installation. -
Page 10: Specifications
• Europe – Complies with European Union Directive 2002/95/EC on the restriction of use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by Commission Decisions 2005/618/EC, 2005/717/EC, 2005/747/EC (RoHS directive), and WEEE Warranty • Standard Telos Alliance 2-year limited parts and labor... - Page 11 THIS PAGE INTENTIONALLY BLANK...
-
Page 12: Quick Links
Radio: +1 (216) 622-0247 TV: +1 (717) 735-3611 Radio: support@telosalliance.com TV: support@linearacoustic.com TelosAlliance.com/Linear 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com © 2020 TLS Corp. The Telos Alliance®. All Rights Reserved. L20/18196 · 1490-00235-001 · Quick Start Guide: AERO.2000...
