- Page 1 HSW208/HSW210/HSW212 HYPER 200 SERIES...
- Page 2 Today, the new Alphasonik is committed to pushing the envelope with regards to technology, quality and value. Our electronics feature audiophile parts and circuit topology designed to let the full musical experience come through, loud and clear.
- Page 3 With proper care and installation, your new product will provide you with many years of high performance listening enjoyment. We recommend having an Authorized Alphasonik Dealer install your new product for optimal performance and to take advantage of our warranty program. Before installing your new product, please read through the manual to fully understand the application.

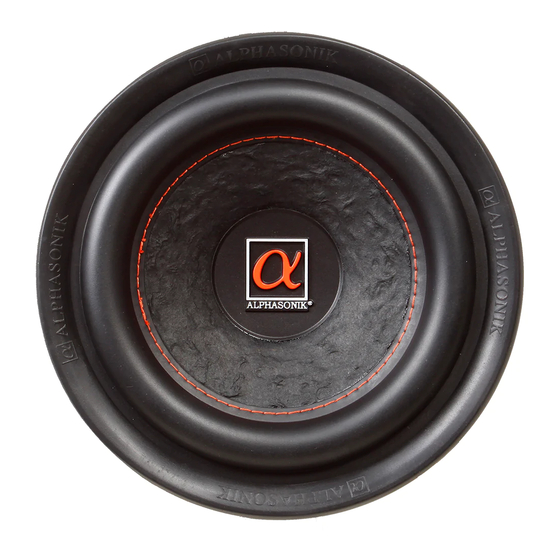

- Page 4 HSW208 8” HYPER 200 SERIES SUBWOOFER Proprietary Heavy Gauge Stamped Steel “Alpha” Basket Laminated non-pressed pulp paper cone EPDM surround for Enhanced Control at Extreme Temperatures Rated at 200 watts RMS / 600 watts MAX 86 dB @ 1w/1m 38 oz Magnet Frequency Response: 35 - 500 Hz Single 4Ω...
- Page 5 Now that you know about subwoofer specifications it’s time to learn about building subwoofer boxes. If you’ve done any woodworking you shouldn’t have much trouble when building a subwoofer enclosure. One of the main differences will probably be the material used in building subwoofer boxes as compared to other woodworking projects.
- Page 6 If you’re planning to build your own enclosure and are confused in what type of enclosure best suits your needs this page will help you choose what enclosure best fits your needs. There are many different types of enclosures. The two most common used enclosures are sealed and vented enclosure.
- Page 7 Calculating a sealed speaker enclosure volume is a six step process. Step One: Measure Height Step Two: Measure Width Step Three: Measure Depth Step Four: Subtract Thickness of Wood Step Five: Multiply Height * Width * Depth = Step Six: Divide the results from step four by 1728a EXAMPLE: 12”...
- Page 8 Calculating a speaker enclosure volume with a port is a seven step process. The First six steps are the same as the sealed enclosure. The only difference is calculating the port displacement. Step One - Six: Follow the first six steps on the sealed enclosure. (ILLUSTRATED EXAMPLE ONLY) If measured internal dimensions you will skip step four.
- Page 9 Converting a round port to a slot port. Calculate the are of the round port(s) being used, then use the square root function of your calculator to get the interior dimensions of the equivalent square port. The length (or depth) of the slot port will be the same as that of the round port To calculate area: (Area is a two dimensional measurement) Area = π...
-
Page 10: Mounting Dimensions
HYPER SERIES Model # HSW208 HSW210 HSW212 0.488 0.512 0.572 0.529 0.558 0.643 6.34 6.23 5.18 Vas (liters) 11.31 33.57 69.08 Vas (Cu. Ft.) 0.399 1.19 2.43 3.33 3.58 3.55 2.725 3.346 4.479 Xmax +/- (mm) 1.189 1.554 1.657 201.06 330.06 490.87 88.74... - Page 11 Parallel 1 ohm 2 ohms Series - Parallel 4 ohm Series 8 ohms...
- Page 13 IMPORTANT: Never cut any metal that is an integral part of the vehicle’s safety or structural support system. If you are unsure, it is best to have the product professionally installed by an Authorized Alphasonik Dealer. Never sacrifice your safety for sound.
- Page 14 4. This warranty does not cover car static, electrical interference, adjustments or labor costs for the removal or reinstallation of the unit for repair. 5. The sole responsibility of Alphasonik under this warranty shall be limited to the repair or replacement thereof, at the sole discretion of Alphasonik.
- Page 15 YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. 10. Should you have any difficulties with the performance of this product during warranty or with any Alphasonik authorized service center, you may contact Alphasonik by emailing us at support@alphasonik.com.
