Summary of Contents for Alphasonik APP122

  • Page 1 ALPHASONIK...
  • Page 2 Today, the new Alphasonik is committed to pushing the envelope with regard to technology, quality and value. Our electronics feature audiophile parts and circuit topology designed to let the full musical experience come through, loud and clear.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction___________________________________________________ Contents of Carton_____________________________________________ Mounting & Hi-Level Inputs_______________________________________ Controls and Functions__________________________________________ 6 - 9 Specifications__________________________________________________ Troubleshooting________________________________________________ Warning and Disclaimer__________________________________________ Warranty______________________________________________________ 13-14...
  • Page 4: Introduction

    With proper care and installation, your new product will provide you with many years of high performance listening enjoyment. We recommend having an Authorized Alphasonik Dealer install your new product for optimal performance and to take advantage of our warranty program. Before installing your new product, please read through the manual to fully understand the application.
  • Page 5: Contents Of Carton

    Contents of Carton • Amplifier • Enclosure • Amplifier Wiring Kit • Remote Bass Knob • Sticker • Operations Manual 1. Make sure to carefully read and understand the instructions before attempting to install your new Bass System. 2. Before making any electrical connection, make sure that you disconnect the battery’s ground cable to prevent the possibility of short circuit or damage to your electronic equipment.
  • Page 6: Mounting & Hi-Level Inputs

    Mounting & HI LEVEL INPUTS The mounting position of your Bass System will have a great effect on the sound performance produced. TRUNK MOUNTING Mounting the enclosure in the trunk provides a good overall performance. PASSENGER COMPARTMENT MOUNTING Mounting the enclosure in the passenger compartment provides optimum sound, but reduces the area for passenger seating.
  • Page 7: Controls And Functions

    Controls And Functions...
  • Page 8 Controls And Functions 1. Speaker Terminals SPEAKER These chrome plated connectors can accept wire gauges from 16 - 8 gauge. Be careful to observe proper polarity when connecting the cables. 2. B - Terminal (Chassis ground) POWER BAT T To avoid unwanted ignition noise caused by ground loops, it is essential that the amplifier be grounded to a clean bare metal surface of the vehicles chassis.
  • Page 9 Controls And Functions 5. Input Sensitivity Adjustment This control adjusts the amplifier’s sensitivity to match the signal strength coming from the source unit. Input sensitivity is variable from 200 Millivolts to 8 volts. Clockwise increases sensitivity. Counterclockwise decreases sensitivity. THE KNOB IS NOT A VOLUME CONTROL.
  • Page 10 Controls & Functions 9. Low Pass Filter Control Adjust the variable crossover frequency with control knob as desired. The amplifier input circuit filters out everything above 40Hz - 200Hz (dependent on the adjustment of the frequency control), so only the lowest bass notes are amplified. 10.
  • Page 11: Specifications

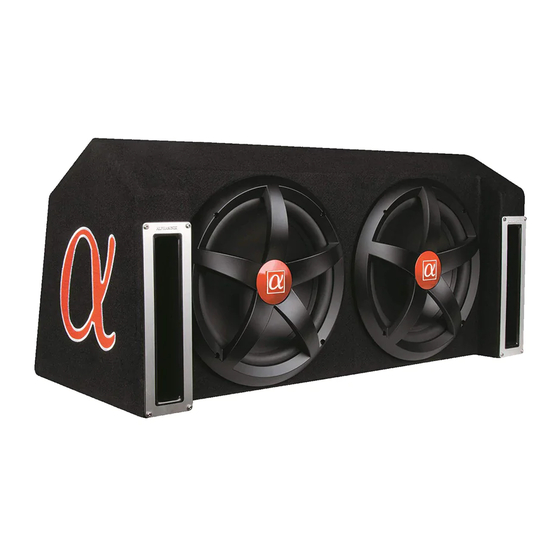

    Specifications Model Number APP122 Power RMS 500 Watts Max Power 1500 Watts Frequency Response: 26Hz-1kHz Enclosure Dual 12” Enclosure Dimensions: - MDF (Medium-density fiberboard) Construction w/ Black Carpet Height: 13.75” Width: 29.50” Length: 13.50” Bottom / 9” Top Amplifier Features Installation Kit - 17’...
  • Page 12: Troubleshooting

    Troubleshooting...
  • Page 13: Warning And Disclaimer

    Make absolutely sure that the terminals for the products are connected to the proper inputs and outputs from the audio source. Disclaimer Specifications are subject to change without notice. For the most updated Specifications check the Alphasonik website. www.alphasonik.com...
  • Page 14: Warranty

    5. This warranty does not cover car static, electrical interference, ad- justments or labor costs for the removal or reinstallation of the unit for repair. 6. The sole responsibility of Alphasonik under this warranty shall be limited to the repair or replacement thereof, at the sole discretion of Alphasonik.
  • Page 15 MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. 11. Should you have any difficulties with the performance of this product during warranty or with any Alphasonik authorized service center, you may contact Alphasonik by emailing us at support@alphasonik.com.
  • Page 16 Copyright Alphasonik All rights reserved. Any unauthorized reproduction or use of any Alphasonik logos, images or design elements...
