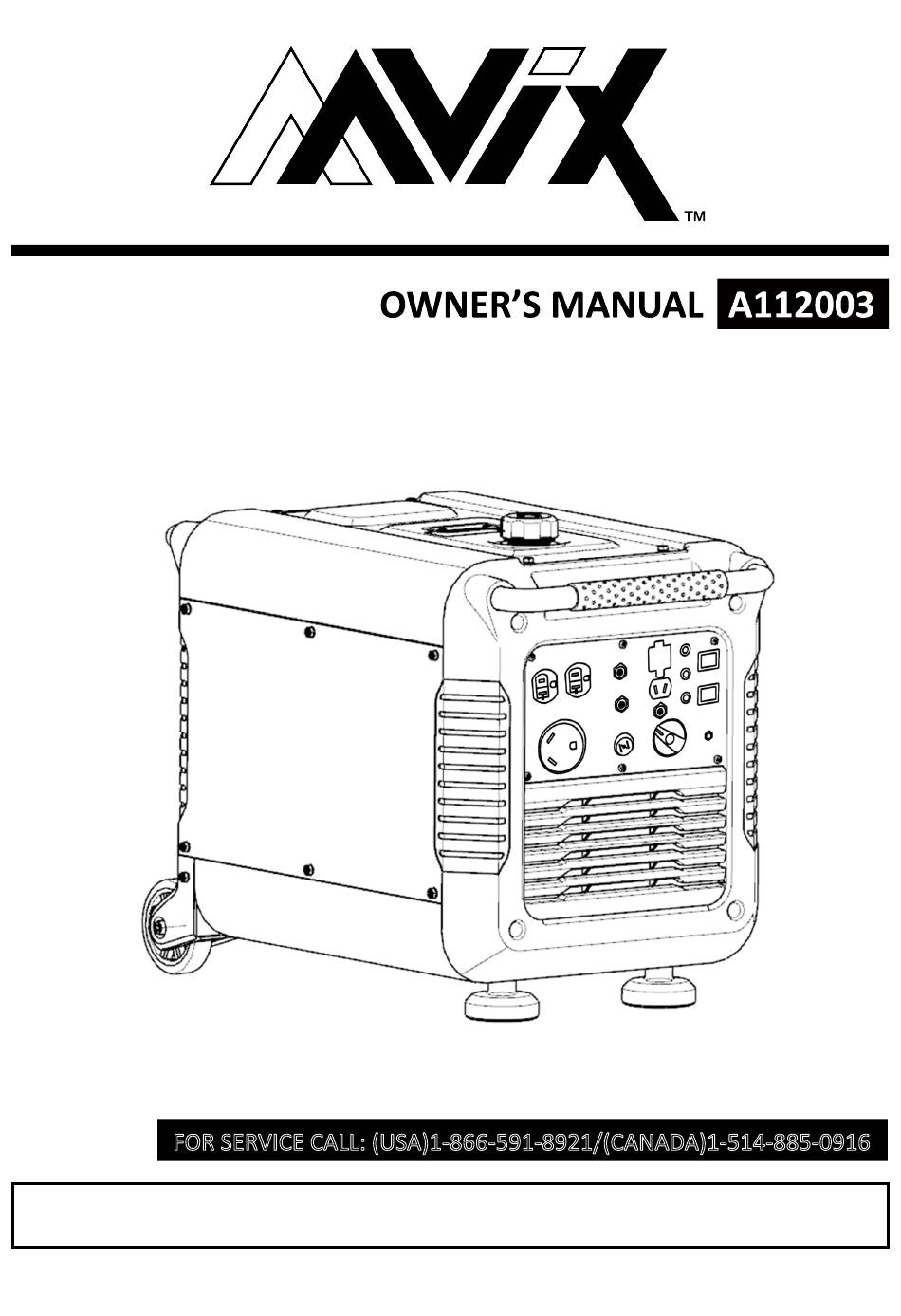

AAVIX A112003 Owner's Manual

3000w digital inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A A V I X
O U T D O O R S
3000W DIGITAL INVERTER GENERATOR
FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916
WARNING : To reduce the risk of injury, user must read this manual before assembling, operating
and maintaining this unit, You are responsible for operating the product properly & safely.
Version: V1.20171123

Advertisement

Table of Contents
loading

Related Manuals for AAVIX A112003

Summary of Contents for AAVIX A112003

  • Page 1 A A V I X O U T D O O R S 3000W DIGITAL INVERTER GENERATOR FOR SERVICE CALL: (USA)1-866-591-8921/(CANADA)1-514-885-0916 WARNING : To reduce the risk of injury, user must read this manual before assembling, operating and maintaining this unit, You are responsible for operating the product properly & safely. Version: V1.20171123...

  • Page 2: Table Of Contents

    Subsequent starting of the generator……………………………………………………….….18 Using the generator.…………………………………..……………………………………….……...20 Maintenance……………….……………………………………………………………………………...26 Storage&Transportation…………………………………………………………………..………..33 Troubleshooting …………………….………………………………………………………….….…….35 Wiring diagram……………….…….………………………………………………………………...…37 A112003 Exploded View & Part List……………………………………………….………..38 SAFETY RULES observe all warnings, Read and This safety alert symbol is used to cautions, and instructions on the identify safety information about generator and in this owner’s manual...
  • Page 3 fresh air. DANGER indicates a hazard, which, if not avoided, will result in death or ONLY use a generator outdoors and far serious injury. away from open windows, doors, and WARNING Failure to follow vents. These openings can pull in WARNING instructions could result in generator exhaust.
  • Page 4 water and change your clothes. extension cords. When operating or transporting the Do not use in rainy conditions.   machine, be sure it is kept upright. If it Do not touch bare wires or  tilts, fuel may leak from the receptacles (outlets).
  • Page 5 OR NEAR WATER. SAVE THESE INSTRUCTIONS - This KEEP THIS UNIT DRY AT ALL TIMES. manual contains important instructions for the AAVIX 3000W inverter generator that should be followed during installation and maintenance of the generator. Generators vibrate in normal use.
  • Page 6 Never directly connect it to a house power system. Stop engine when fueling. CONNECTION TO A HOUSE POWER SUPPLY CONNECTION NOTES Avoid connecting the generator to • commercial power outlet. Keep it at least 1m(3ft) away from Avoid connecting the generator in •...
  • Page 7 WARNING: If this generator is used as a supply for a building’s wiring system as a standby, the generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with the National Electrical Code, NFPA 70.
  • Page 8 conductor. CAUTION: Make sure the control panel, louver and the inverter bottom side cooling well and without chips, mud and water come in. it may damage the engine, inverter or alternator if the cooling vent blocked. Do not mix the generator with other stuff. If moving, storing or running the unit, it may cause the generator damage or property safety issue when the generator...

  • Page 9: Product Specifications

    PRODUCT SPECIFICATIONS Model A112003 Type Inverter Generator Rated Frequency (Hz) Rated Voltage (V) Rated Output Power (KW) Max Output Power (KW) Power Factor Charging Voltage (DC)(V) Charging Current (DC)(A) Overload Protect (DC) Non-fuse Protector USB Port 5V, 1 A&2.1A Phase...

  • Page 10: Know Your Generator

    KNOW YOUR GENERATOR Fuel gauge Air intake Fuel tank cap Recoil starter Draw handle Louver Control panel Muffler Accessories Socket Wrench Oil funnel Screw driver 12V DC Battery charging cable Spark plug wrench 1pc RV Adapter 1pcs...
  • Page 11 Control Panel 1 AC receptacle Engine switch 2 AC protector Ground (earth) terminal 3 DC receptacle 10 Overload indicator LED (red) 4 USB Port 11 Fuel cock knob 5 Low oil warning LED (yellow) 12 DC protector 6 Economy control switch 13 Choke knob 7 AC pilot LED (green) The diagrams and pictograms herewith enclosed in this manual are a guide but...
  • Page 12 device below the specified rated output of Oil warning light (Yellow) the generator if the DC protector turns off. When the oil level falls below the lower If the DC protector turns off again, stop level, the oil warning light (yellow) comes using the device immediately and consult on and then the engine stops customer service center.

  • Page 13: Generator Preparation

    counterclockwise. must add the proper amount of oil before operating the generator for the first time. Fuel Cock Knob The oil capacity of the engine crankcase is The fuel cock knob is used to supply fuel 0.41qts (0.45 liters). from the fuel tank to the carburetor. Engine Oil Recommendations Ground (Earth) terminal Select good quality detergent oil bearing...
  • Page 14 areas and will cause damage. Keep firmly before closing the access panel. generator level! 2. Loosen the screw and remove the small panel. Step 2-ADD GASOLINE DANGER: This generator may emit highly flammable and explosive gasoline vapors, which can cause severe burns or even death 3.

  • Page 15: Starting The Generator

    over during use when the fuel warms up in electrocution. even with the fuel cap in place. Ground the generator by tightening the 4. After refueling, make sure the tank cap grounding nut on the front control panel is tightened securely. against a grounding wire.
  • Page 16 change temperature, altitude (lower air pressure at higher altitude) and humidity. WARNING: This generator produces powerful voltage, which can The output of the generator is reduced result in electrocution. when the temperature, the humidity and the altitude are higher than standard ALWAYS ground the generator before atmospheric conditions.
  • Page 17 2. Check that the generator is properly NOTE: Grasp the carrying handle firmly grounded (Refer to “Ground the to prevent the generator from falling Generator”). over when pulling the recoil starter. 3. Check the oil and fuel levels. 4. Turn the ECS switch (Black) to “OFF” position.

  • Page 18: Stopping The Generator

    up the engine. • The ESC unit operates normally after the above time period, while the ECS switch (Black) is “ON” position. ECONOMY CONTROL SWITCH This generator is equipped with an Economy Control Switch. Engaging the 3. Turn the engine switch “...
  • Page 19 ensure that the engine crankcase contains THE GENERATOR sufficient lubricant. PRE-OPERATION CHECK To check or add oil, follow these steps: NOTE: 1. Place the generator on a level Pre-operation checks should be made surface. each time the generator is used. 2.

  • Page 20: Using The Generator

    to explosion even if not direcdy in copper wire. This grounding wire should be connected at the other end to a contact with fuel. copper, brass, or steel-grounding rod  Do not operate near open flame. that is driven into the earth. Wire and ...
  • Page 21 Item (Running) Wattage the generator. This can trip the circuit Wattage protectors (circuit breakers). A112003 2800 3000 NOTE: Check the wattage on the electrical device. Once the electrical devices that will be powered by the Generator Wattage...
  • Page 22 indicator light. If the overload light *NR = Not Recommended (RED) is on and the inner electronic - Maximum Extension Cord Lengths by breaker cut power to the receptacles. Power Requirement. To recover the power, shut down the If an overload occurs, shut down the engine, wait until the light turns off, generator.
  • Page 23 on when total wattage exceeds the  Be sure all electric devices application range. (See “CONTROL including the lines and plug FUNCTION” section for more details.) connections are in good condition CAUTION: Be sure the total before connection to the generator. load is within generator rated ...
  • Page 24 The overload indicator light (Red) comes as a compressor or a submergible on when an overload of a connected pump. However, this is not a electrical device is detected, the inverter malfunction. control unit overheats, or the AC output The ECS switch (Black) must be turned to ...
  • Page 25 connections at the battery while charging. Sparks may ignite the battery gas.  Battery electrolyte is poisonous and dangerous, causing severe burns, etc. contains sulfuric (sulphuric) acid. Avoid contact with skin, eyes or clothing. Antidote EXTERNAL-Flush with water 3. Make sure that the DC protector is turned on.

  • Page 26: Maintenance

    battery charging. Beforing restarting to charge the battery, press to resetthe DC protector. If the DC protector turns off again, stop charging the battery immediately and consult our service center. 5. Disconnect the plug from the receptacle, and remove the charge lead after fully charged.
  • Page 27 ation Fittings/ Check all fittings and √ Fasteners fasteners correct if necessary Idle Check/adjust engine √ speed** idle speed √ Crankcase Check breather hose √* breather for cracks or damage system** Muffler Check /Clean/replace √* screen** <225cc, every 125hrs Cylinder Clean up head, piston Carbon **...
  • Page 28 1. Make sure the generator is on a level Step 1: drain the engine oil surface. 1. Place the machine on a level surface 2. Open access panel. Clean around oil fill. and warm up the engine for several Remove dipstick and wipe the dipstick minutes.
  • Page 29 above. To inspect the spark plug: CAUTION: Never dispose of 1. Loosen bolts and the access panel. used motor oil in the trash or down a drain. Please call a local recycling center or auto garage to arrange oil disposal. Step 2 refill engine oil CAUTION 2.
  • Page 30 6. If re-using the spark plug, use a wire brush to clean any dirt from around the WARNING spark plug base then re-gap the spark The carburetor is a vital part of the plug. engine. Adjusting should be left to our 7.
  • Page 31 8. Reinstall the air filter element, replace the air filter cover in its original position. 9. Reinstall the access panel and tighten the screw. 1) put the screw #1 & 4 in the access panel, but donot tighten it fully. 2) put the screw #3 &...
  • Page 32 the engine has been run. Avoid to avoid damaging or scratching of touching the engine and muffler while muffler screen and spark arrester. they are still hot with any part of your body or clothing during inspection or repair. 1. Remove the screws ① 8pcs, and then pull outward on the areas of the black cover ②.

  • Page 33: Storage&Transportation

    remove the access panel ②. STORAGE To store the machine for more than 30 days will require some preventive procedures to guard against deterioration. DRAINING THE FUEL TANK Clean fuel tank each year or before 6. Insert the fuel drain hose of the storing the generator for extended carburettor into the fuel container.
  • Page 34 2. Pull the Choke knob to out OFF position. Recoil start the engine by turning over several times (with ignition off) to coat the cylinder walls with oil. 3. Pull the recoil starter until you feel compression. Then stop pulling. (This prevents the cylinder and valves from rusting).

  • Page 35: Troubleshooting

    TROUBLESHOOTING IMPORTANT: If trouble persists, please call our customer service center. Problem Cause Solution Engine switch in “OFF” Set engine switch to “ON” position. position Fuel cock knob in “OFF” Set Fuel cock knob to “ON” position. position Pull the Choke knob fully out Press the choke knob full in when warm start Engine is filled with...
  • Page 36 Blue smoke Generator inclined, oil Move generator to a level position in exhaust entered combustion Too much oil was added to Drain excessive oil. the crankcase. Generator Bad connecting wires/cables. If using an extension cord, try a different one. runs but Bad electrical device Try connecting a different device does not...

  • Page 37: Wiring Diagram

    WIRING DIAGRAM...

  • Page 38: A112003 Exploded View & Part List

    A112003 EXPLODED VIEW AND PART LIST FIG.1 Control Panel Refe# Description Qty/pc Stock# tapping screw-fuel switch rod A112003-1-1 cross screw M4X14 A112003-1-2 stop switch(black), smart switch A112003-1-3 pilot light A112003-1-4 earth point A112003-1-5 panel A112003-1-6 30A socket A112003-1-7 20A socket...
  • Page 39 FIG.2 Muffler Cover Refe# Description Qty/pc Stock# M3 Tapping Screw A112003-2-1 M4 Tapping Screw A112003-2-2 Muffler Cover A112003-2-3 Wheel A112003-2-4 Cross Screw M6X30 A112003-2-5 M10x70 Flange Bolt A112003-2-6 Bushing A112003-2-7 Wheel Support A112003-2-8 Hexagonal Nut M10 A112003-2-9 2-10 Muffler Housing...
  • Page 40 FIG.3 Frame Cover Parts Refe# Description Qty/pc Stock# Flange Bolt M6X45 A112003-3-1 A112003-3-2 Groud Foot A112003-3-3 Bottom Cover A112003-3-4 Flange Nut M8 A112003-3-5 Shock Absorption Base A112003-3-6 Shock Absorption Foot A112003-3-7 Hexagonal Flange Bolt A112003-3-8 Limit Speed Part A112003-3-9 3-10...
  • Page 41 3-24 Left Panel A112003-3-24 3-25 Tank Support Base A112003-3-25 3-26 Rear Panel A112003-3-26 3-27 Oil Panel A112003-3-27 3-28 Front Panel A112003-3-28 3-29 Push Handel Part A112003-3-29 3-30 Push Handel Box A112003-3-30 3-31 Right Panel A112003-3-31 3-32 Top Cover A112003-3-32 3-33...
  • Page 42 11# Rubber Parts A112003-4-9 4-10 Bushing Φ9.1XΦ7X7.1 A112003-4-10 4-11 Shim Φ18XΦ6.5X1 A112003-4-11 4-12 Flange Bolt M6x12 A112003-4-12 4-13 Cross Screw M4X14 A112003-4-13 FIG.5 Motor Components Refe# Description Qty/pc Stock# Tapping Crew A112003-5-1 Hexagonal Flange Bolt M6x12 A112003-5-2 A112003-5-3 Hexagonal Flange Nut M14...
