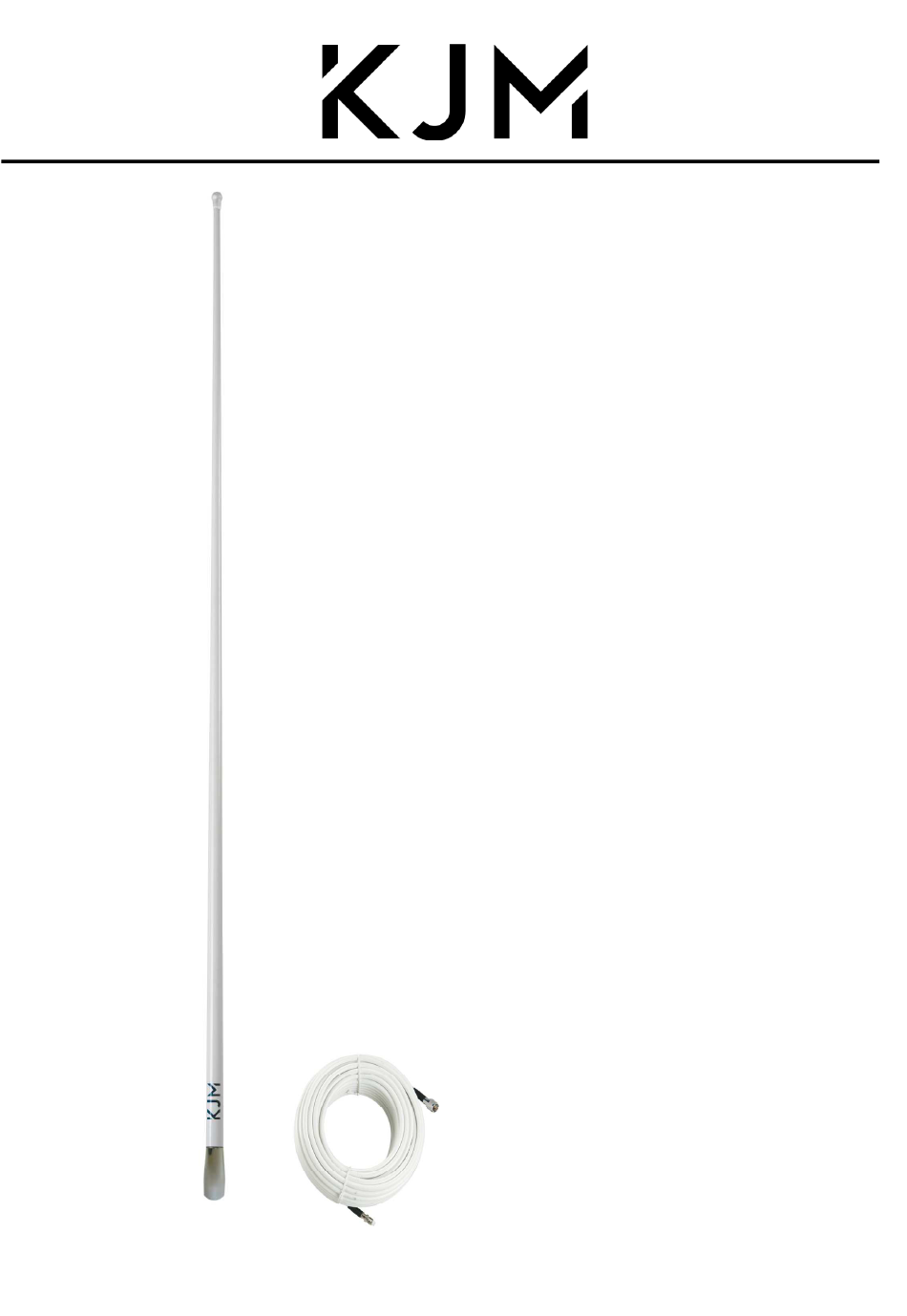

- Page 1 A430-V 4 FOOT VHF MARINE ANTENNA Installation Guide Supplied with 20’ RG-8X and pre-installed FME connectors...
- Page 2 Please read the following pages before attempting installation to ensure complete understanding of the A430-V VHF Antenna. A430-V antenna is a high performance 4 foot antenna designed to transmit and receive on Marine VHF channels. Supplied with 20’ of low loss RG-8X and terminated with FME (mini UHF) connectors make the A430-V antenna easy to install as there is no soldering needed.
- Page 3 1. Remove the chrome-plated brass ferrule from the antenna base IMPORTANT: install the cable and the antenna on the mount before installing the mount on the place chosen for the antenna installation 2. Pass one end of the RG-8X cable through the hole of the M100 ratchet mount, or compatible mount.
- Page 4 5. Screw the chrome-plated brass ferrule on the antenna base (A) and place it on the mount 6. Screw the mount on the antenna ferrule. IMPORTANT: WHEN SCREWING THE MOUNT, THE CABLE MUST NOT TURN; TO DO THAT YOU MUST MOVE THE CABLE EVERY TIME YOU GIVES A RIDE TO THE MOUNT, this avoid the cable damage...
- Page 5 KJM, whether used in accordance with instructions or not. All shipping costs on returned material are the responsibility of the purchaser. KJM is not liable for repair or replacement of any product damaged by lightening, other natural phenomenon’s or incorrect installation including reverse polarity connections.
