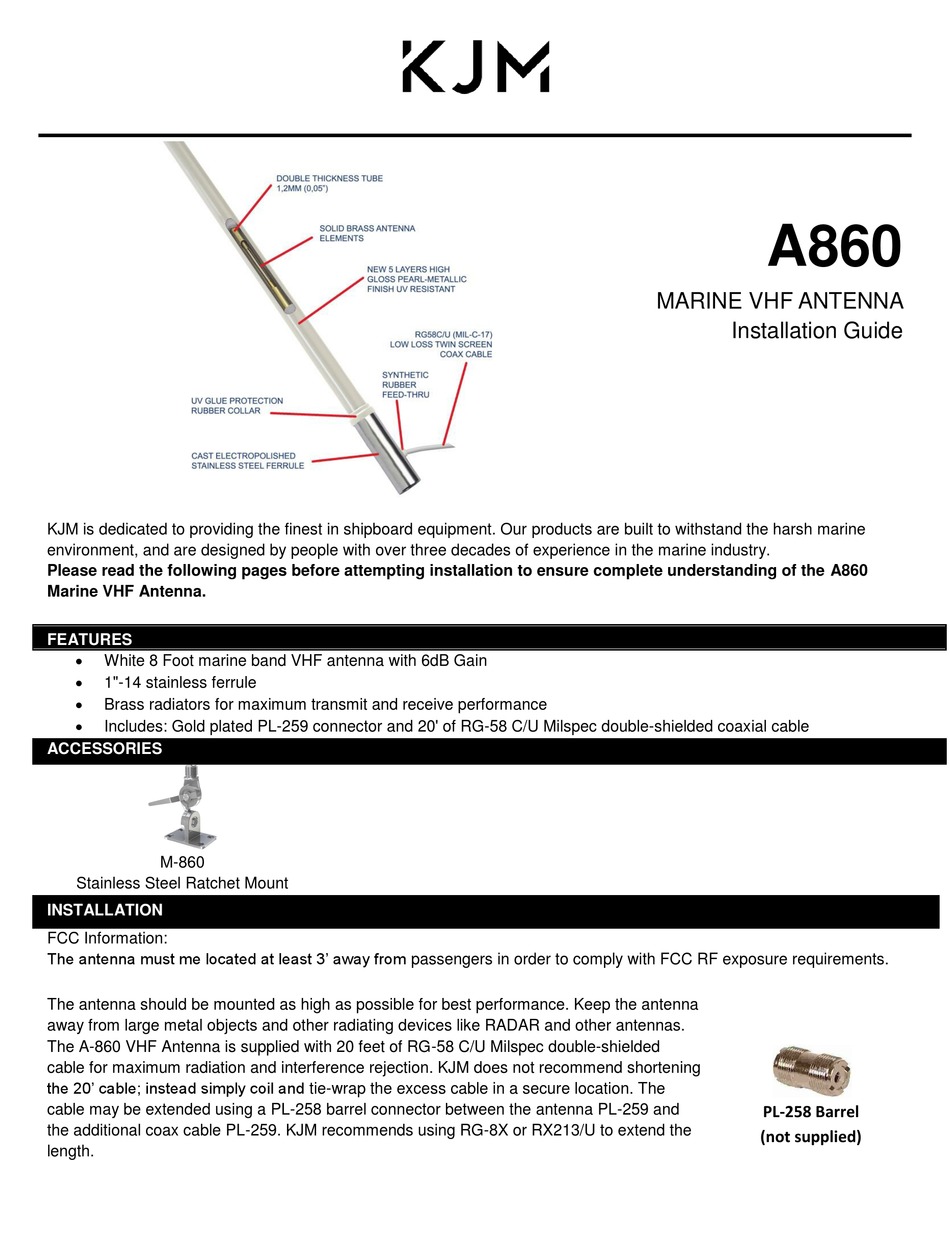

KJM A860 Installation Manual

Marine vhf antenna

KJM is dedicated to providing the finest in shipboard equipment. Our products are built to withstand the harsh marine

environment, and are designed by people with over three decades of experience in the marine industry.

Please read the following pages before attempting installation to ensure complete understanding of the A860

Marine VHF Antenna.

FEATURES



White 8 Foot marine band VHF antenna with 6dB Gain



1"-14 stainless ferrule



Brass radiators for maximum transmit and receive performance



Includes: Gold plated PL-259 connector and 20' of RG-58 C/U Milspec double-shielded coaxial cable

ACCESSORIES

M-860

Stainless Steel Ratchet Mount

INSTALLATION

FCC Information:

The antenna must me located at least 3' away from passengers in order to comply with FCC RF exposure requirements.

The antenna should be mounted as high as possible for best performance. Keep the antenna

away from large metal objects and other radiating devices like RADAR and other antennas.

The A-860 VHF Antenna is supplied with 20 feet of RG-58 C/U Milspec double-shielded

cable for maximum radiation and interference rejection. KJM does not recommend shortening

the 20' cable; instead simply coil and tie-wrap the excess cable in a secure location. The

cable may be extended using a PL-258 barrel connector between the antenna PL-259 and

the additional coax cable PL-259. KJM recommends using RG-8X or RX213/U to extend the

length.

A860

MARINE VHF ANTENNA

Installation Guide

PL-258 Barrel

(not supplied)
