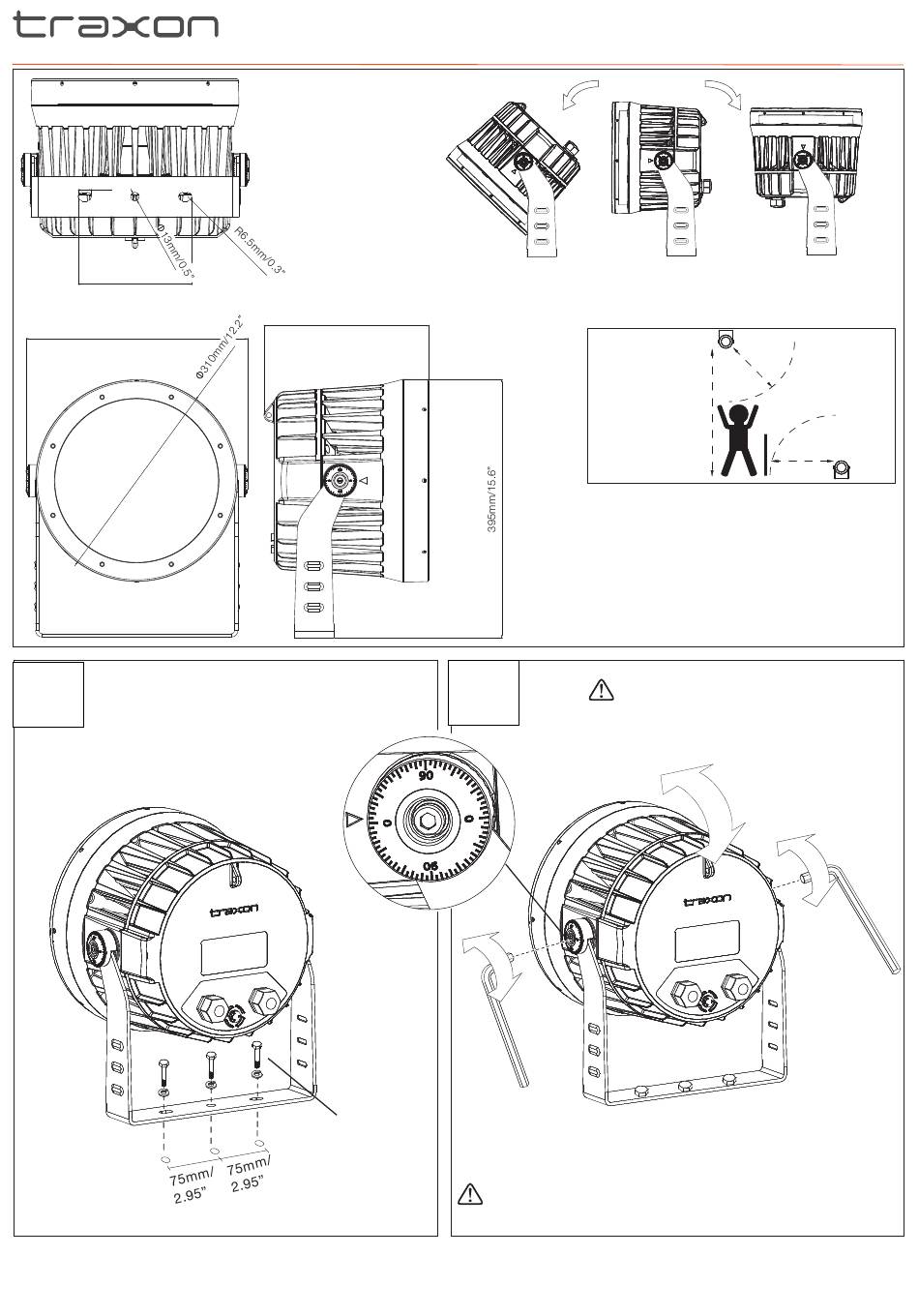

Traxon Allegro Washer AC 100W Mounting Manual

20mm/0.8"
170mm/6.7"
340mm/13.4"
1
www.traxontechnologies.com
©2019 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Mounting Guide
252mm/9.92"
Unlock
12mm screw (X3)
6mm Hex Key
(not included)
Tightening Torque 3.5Nm
09/19 V0.3
A l l eg r o Wa sh e r A C 1 0 0W
2
1. Tilt the head slightly to mount the bracket.
Only turn enough to unlock.
2. Do not unscrew the hex screw from fixture.
Adjust Position
Lock
Only turn enough to unlock
Do not unscrew the hex screw
from fixture
M o u n ti n g Gu id e
> 1.25m
> 2.5m
obstacle
> 1.25m
Lock
Unlock
1 of 4
