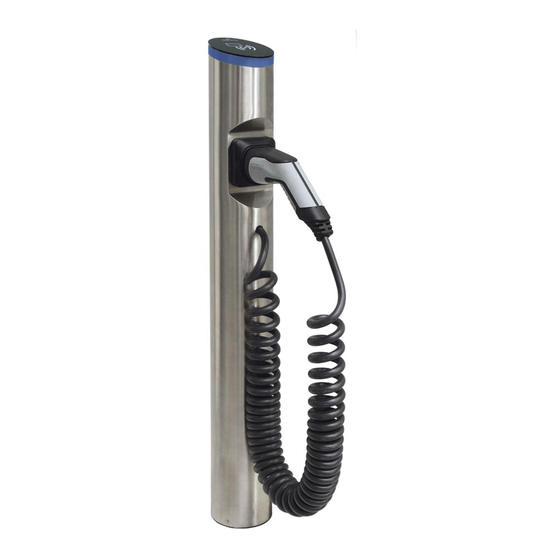

hesotec electrify eSat r20 Installation And Operating Instruction

Charging station for electric & hybrid vehicles
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

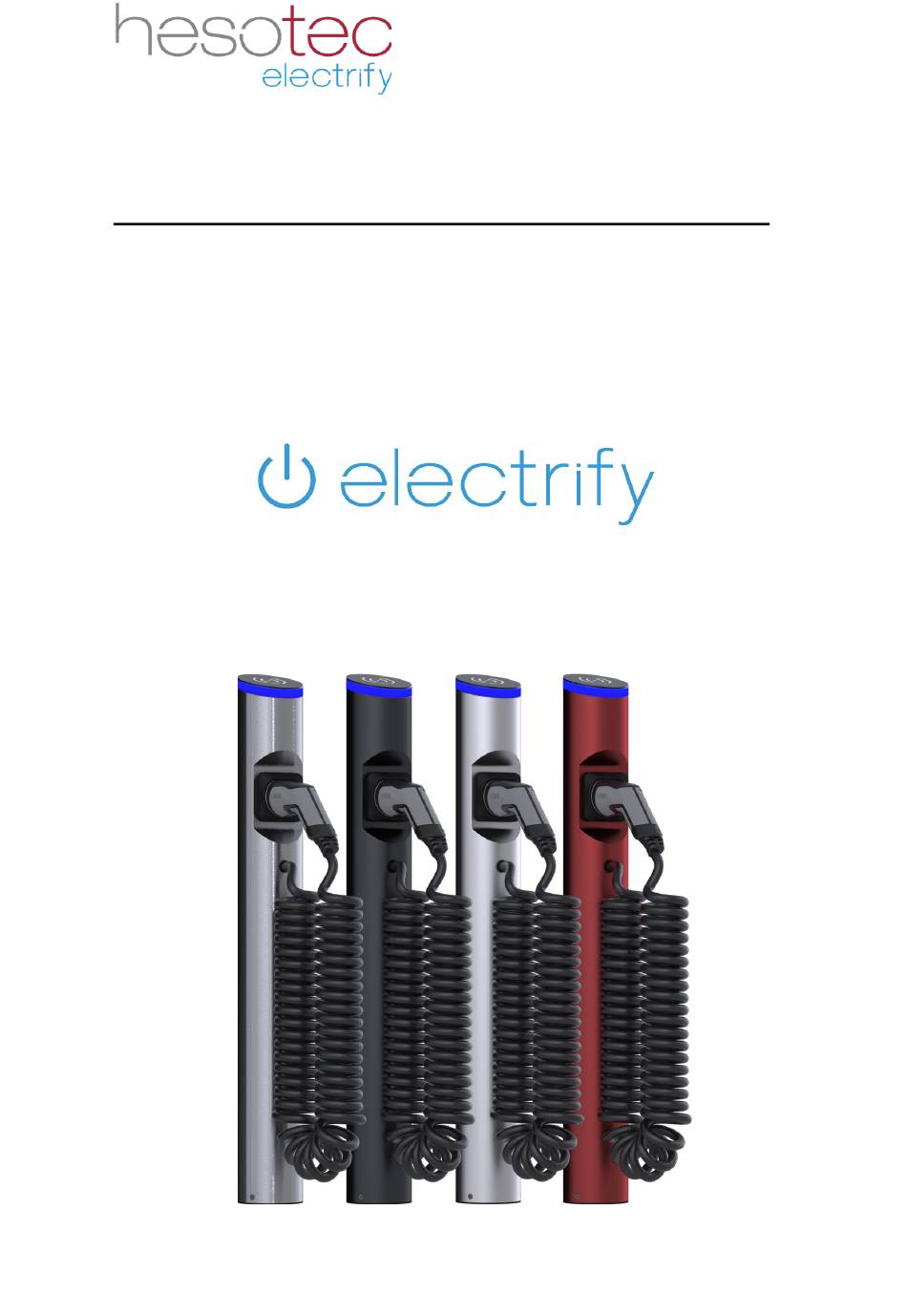

Ins tal la ti on a nd o per ati ng ins tructi on
C h a r g i n g s t a t i o n e l e c t r i f y e S a t
f o r e l e c t r i c & h y b r i d v e h i c l e s
T y p e : r 2 0
V e r s i o n : 0 2 . 2 0 2 0 - 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eSat r20 and is the answer not in the manual?

Questions and answers

Related Manuals for hesotec electrify eSat r20

Summary of Contents for hesotec electrify eSat r20

  • Page 1 Ins tal la ti on a nd o per ati ng ins tructi on C h a r g i n g s t a t i o n e l e c t r i f y e S a t f o r e l e c t r i c &...
  • Page 2 Rubbertskath 34 46539 Dinslaken / GER HR - Nr. HRB 31112 AG Duisburg St. - Nr. 101 / 5707 / 2333 UID - Nr. DE320783037 Phone +49(0) 2064 / 60 105 - 60 +49(0) 2064 / 60 105 - 50 electrify.hesotec.de...

  • Page 3: Table Of Contents

    Contents Important Information and safety instructions............. 1 Foreword ......................1 General safety instructions ................1 Safety instructions in this manual ..............2 Product overview and dimensions ................ 3 Type plate ....................... 3 Charging Station ..................... 3 Foundation Frame (accessory) Art. 00010033..........4 Technical Data ....................

  • Page 4: Important Information And Safety Instructions

    1 Important Information and safety instructions 1.1 Foreword We are pleased that you have chosen the electrify eSat charging station of hesotec electrify. With hesotec electrify, e-mobility is no longer a dream of the future but a reality. With the electrify eSat you invest in an innovative technology, connected with a sophisticated design and robust compactness.

  • Page 5: Safety Instructions In This Manual

    Important Information and safety instructions hesotec electrify assumes no liability for the following cases in the event of personal injury or property damage: Disregard of the installation and operating instructions • Installation of unqualified technical personnel • Structural alterations to the charging station •...

  • Page 6: Product Overview And Dimensions

    It is only a secured supply line between the house sub-distribution and the charging station needed. The respective requirements for the power connection can be found in the technical data. electrify eSat r20 charging station, left: 3D model; right: dimensions (measuring unit mm)

  • Page 7: Foundation Frame (Accessory) Art. 00010033

    For the creation of the ground foundation for safe and stable attachment of the charging station, hesotec electrify optionally offers a foundation frame, which is poured in with concrete. With the help of prefabricated bolting points the assembly of the charging column is facilitated.

  • Page 8: Technical Data

    Product overview and dimensions 2.4 Technical Data eSat r20 Base 11kW / 22kW Vehicle connection (output) 1 x Charging plug Typ 2 with spiral cable 20 A* / 32 A, length about 4 m Output voltage 230 / 400 V...
  • Page 9 Product overview and dimensions eSat r20 Smart 11kW / 22kW Vehicle connection (output) 1 x Charging plug Typ 2 with spiral cable 20 A* / 32 A, length about 4 m Output voltage 230 / 400 V Maximum charging current...

  • Page 10: Installation

    Installation 3 Installation 3.1 Demands on Location of Charging Stations Location DANGER ! Safety note on a hazard with electrical voltage Pay attention to a proper installation. Non-observance of the require- ments leads to a danger with electric voltage. The electrify eSat charging station is for outdoor and indoor use designed. For the installation of the loading unit, regulations regarding the location of installation must be ensured.

  • Page 11: Creation Of The Charging Stations Foundation

    NOTE ! Important information and special features For safe and stable mounting of the charging station, we recommend the accessory "Foundation Frame" by hesotec electrify. DANGER ! Safety note on a hazard with electrical voltage Make sure that the supply line is de-energized at the time of the creation of the foundation.

  • Page 12: Assembly Of Charging Station

    Installation 3.3 Assembly of Charging Station DANGER ! Safety note on a hazard with electrical voltage Make sure that the supply line is de-energized at the time of installation. Failure to observe the safety instructions can lead to a risk of death due to electrical voltage.

  • Page 13: Assembly On An Alternative Ground

    Installation 3. Feed the supply cable through the cable gland of the base and screw the base to the foundation frame, which has already been set in concrete, using the screws supplied. (DIN 912 M8x25 A2) 4. Before screwing the charging station to the base, read the chapter "3.4.1 Electric in- stallation of the Charging Station".
  • Page 14 Installation 5. Drill the previously marked holes (ø 10 mm). Use the included mounting kit for mounting. Make sure that the fixing dowels are sunk into the foundation and do not protrude above. 6. Feed the supply cable through the cable gland of the base and screw the base with the screws provided.

  • Page 15: Electrical Installation

    Neutral conductor blue Neutral conductor green/yellow Protective conductor green/yellow Protective conductor Connection diagram terminal strip electrify eSat r20 NOTE ! Important information and special features Please take the requirements of the power connection from the technical data sheet in chapter 2.4.

  • Page 16: Electrical Installation Of The Charging Station

    Installation 3.4.1 Electrical Installation of the Charging Station The electrify eSat charging station is already preassembled in the factory and wired electron- ically. All you have to do is connect the supply line to the connection socket. For the electrical installation of the charging station, proceed as follows: 1.

  • Page 17: Connection Of The Digital Inputs

    Installation 3.4.2 Connection of the digital inputs The electrify eSat charging unit is equipped with an interface for digital inputs. With the digital inputs, you have the option of reducing the charging power to 75%, 50%, 25% or issuing an external charging release.

  • Page 18: Operation

    Charge Control App (eCC) or the electrify Charge Management System (eLMS) you can make further settings and evaluations. 4.1 Control Element The following graphic shows the main operating elements of the electrify eSat r20 charging station: 1. RFID – Card Reader 2.
  • Page 19 Operation The electrify eSat charging station is preconfigured with a color combination to indicate the operating status. The default color scheme, with the associated operating status, is shown in the following table: Graphic Operating Status State A: Charging Station is ready for operation. Green State B: Electric vehicle is plugged in.

  • Page 20: Charging Process

    Operation 4.3 Charging Process The charging process of the electrify charging stations is the same for all product variants. No matter if you decide for the base, smart or other. Only the approval of the charging pro- cess is different among each other. 4.3.1 Charging station without authorization (Plug and Charge) Process Step Information...

  • Page 21: Charging Station With Rfid Authorization

    Operation 4.3.2 Charging station with RFID authorization Process Step Information Graphic 1. First check the operating eSat charging station is status of the eSat charging ready for operation with station. green LED indicator. 2. Connect the charging plug After the charging plug is to the vehicle to be charged.

  • Page 22: Charging Station With App Authorization (Electrify Control Center)

    Operation 4.3.3 Charging Station with App Authorization (electrify Control Center) Process Step Information Graphic 1. First check the operating eSat charging station is status of the eSat charging ready for operation with station. green LED indicator. 2. Connect the charging plug After the charging plug is to the vehicle to be charged.

  • Page 23: Troubleshooting

    Troubleshooting 5 Troubleshooting With the purchase of your eSat charging station, you have chosen a robust and compact design with maximum safety in operation and reliable charging for your electric and hybrid vehicle. With intelligent control, the eSat detects a fault and stops the operation immediately. Should a malfunction occur in the application, you will be informed via the LED indicator.

  • Page 24: Repair Work

    Repairs to the charging station may only be carried out by a qualified specialist. It should be noted that only spare parts released by hesotec electrify are permissible. If necessary, contact the manufacturer.

  • Page 25: Maintenance / Disposal

    Non-observance of the safety instructions can lead to a risk of mortal danger due to electrical voltage. The eSat charging stations from hesotec electrify are designed so that they are generally maintenance-free. Nevertheless, visual inspections should be carried out at regular intervals.

  • Page 26: Appendix

    7 Appendix 7.1 CE-Label and Declaration of Conformity The electrify eSat charging station of hesotec electrify is marked with a CE label. A copy of the Declaration of Conformity will be presented later. On request, this is available from hesotec electrify gmbh.

  • Page 27: Notes

    Notes Notes...
  • Page 28 Rubbertskath 34 46539 Dinslaken / GER Phone +49(0) 2064 / 60 105 – 60 +49(0) 2064 / 60 105 - 50 Mail electrify@hesotec.de electrify.hesotec.de...
