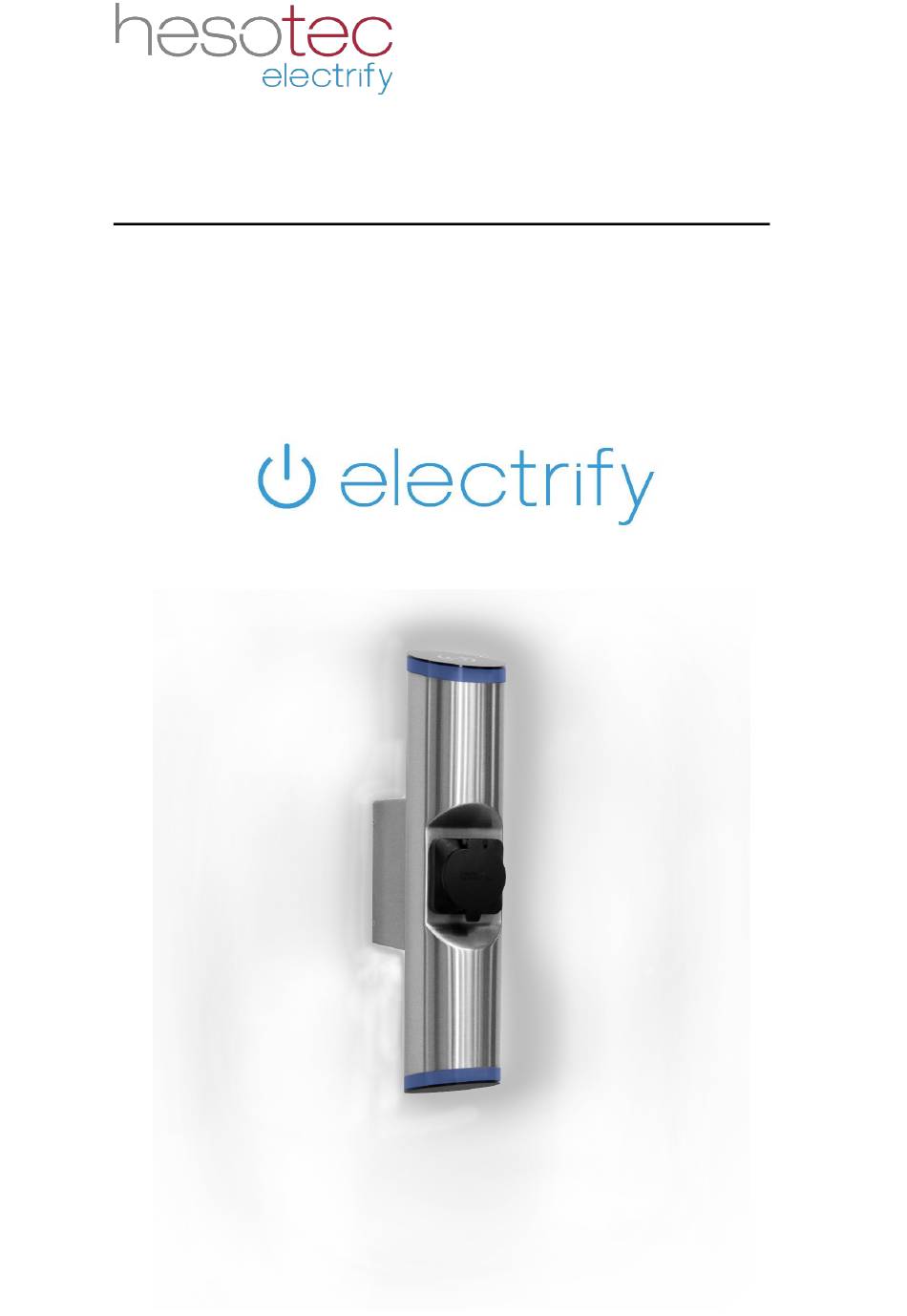

- Page 1 Ins talla tion a nd o per ati ng ins tructi on W a l l b o x e l e c t r i f y e B o x f o r e l e c t r i c & h y b r i d v e h i c l e s T y p e : s r 1 0 V e r s i o n : 0 2 .
- Page 2 Manufacturer hesotec electrify gmbh Rubbertskath 34 46539 Dinslaken / GER HR - No. HRB 31112 AG Duisburg St. - No. 101 / 5707 / 2333 UID - No. DE320783037 Telefon Phone +49(0) 2064 / 60 105 - 60 Telefax +49(0) 2064 / 60 105 - 50 electrify.hesotec.de...
-
Page 3: Table Of Contents
Charging Unit ................. 3 eBox Wall Adapter (Accessory) Art. 00010122 ..........4 Technical Data ....................5 Installation ......................8 Demands on Location of electrify eBox sr10 ........... 8 Installation the electrify eBox sr10 ..............9 3.2.1 Mounting on the wall ................9 Mounting with “Wall Adapter Accessory“... -
Page 4: Important Information And Safety Instructions
1 Important Information and safety instructions 1.1 Foreword We are pleased that you have chosen the electrify eBox sr10 of hesotec electrify. With hesotec electrify, e-mobility is no longer a dream of the future but a reality. With the electrify eBox you invest in an innovative technology, connected with a sophisticated design and robust compactness. -
Page 5: Safety Instructions In This Manual
Important Information and safety instructions hesotec electrify assumes no liability for the following cases in the event of personal injury or property damage: • Disregard of the installation and operating instructions • Installation of unqualified technical personnel • Structural alterations to the charging station •... -
Page 6: Product Overview And Dimensions
The purchased electrify eBox is already fully assembled and delivered after successful quality control. The eBox sr10 can be mounted directly on the wall when the cable is under plaster. With a line lying on plaster, the installation is carried out with the aid of the adapter, which can optionally be purchased as an accessory. -
Page 7: Ebox Wall Adapter (Accessory) Art. 00010122
Product overview and dimensions 2.3 eBox Wall Adapter (Accessory) Art. 00010122 For the installation of the electrify eBox sr10, with cables on the wall, hesotec electrify op- tionally offers a wall adapter as an accessory. This adapter is designed so that the assembly can be rotated by 180 °. -
Page 8: Technical Data
Product overview and dimensions 2.4 Technical Data eBox sr10 Base 11kW / 22kW Vehicle connection (output) 1 x Charging socket type 2 20 A* / 32 A, with lock acc. IEC62196-2 Output voltage 230 / 400 V Maximum charging current... - Page 9 Product overview and dimensions eBox sr10 Smart 11kW / 22kW Vehicle connection (output) 1 x Charging socket type 2 20 A* / 32 A, with lock acc. IEC62196-2 Output voltage 230 / 400 V Maximum charging current 16 A* / 32 A...
- Page 10 Product overview and dimensions eBox sr10 Business 11kW / 22kW Vehicle connection (output) 1 x Charging socket type 2 20 A* / 32 A, with lock acc. IEC62196-2 Output voltage 230 / 400 V Maximum charging current 16 A* / 32 A...
-
Page 11: Installation
Installation 3 Installation 3.1 Demands on Location of electrify eBox sr10 DANGER ! Safety note on a hazard with electrical voltage Pay attention to a proper installation. Non-observance of the require- ments leads to a danger with electric voltage. The electrify eBox charging station is for outdoor and indoor use designed. For the install- lation of the loading unit, regulations regarding the location of installation must be ensured. -
Page 12: Installation The Electrify Ebox Sr10
Failure to observe the safety instructions can lead to a risk of mortal danger due to electrical voltage. The installation of the electrify eBox sr10 can be done indoors as well as outdoors and should be carried out by qualified personnel. The respective dimensions can be found in the respective subchapters. - Page 13 (DIN 912 M8x55 A2) 7. Before screwing the charging unit to the base, read the chapter "3.3.1 Electric instal- lation of the eBox sr10". 8. After the successful electrical installation, place the charging unit on the base and...
-
Page 14: Mounting With "Wall Adapter Accessory
This is not included in delivery and must be ordered as an option. Follow the steps below to install the wall adapter: Mounting charging unit with eBox sr10 wall adapter 1. Position the wall adapter in the desired location and mark the positions of the holes. -
Page 15: Electrical Installation
Failure to follow the instructions may result in damage to the device itself or other consumers. Execution with special care! The electrical installation of the charging unit electrify eBox sr10 may only be carried out by qualified personnel. When installing the electrical system, make sure that the cables are not damaged or crushed. -
Page 16: Electrical Installation Of The Ebox Sr10
Installation 3.3.1 Electrical Installation of the eBox sr10 The electrify eBox sr10 is already preassembled in the factory and wired electronically. All you have to do is connect the supply line to the connection socket. For the electrical installation of the charging station, proceed as follows: 1. -
Page 17: Connection Of The Digital Inputs
Installation 3.3.2 Connection of the digital inputs The electrify eBox charging unit is equipped with an interface for digital inputs. With the digi- tal inputs, you have the option of reducing the charging power to 75%, 50%, 25% or issuing an external charging release. -
Page 18: Operation
Charge Control App (eCC) or the electrify Charge Management System (eLMS) you can make further settings and evaluations. 4.1 Control Element The following graphic shows the main operating elements of the electrify eBox sr10 charging unit: 1. RFID – Card Reader 2. - Page 19 Operation The electrify eBox charging unit is preconfigured with a color combination to indicate the operating status. The default color scheme, with the associated operating status, is shown in the following table: Graphic Operating Status State A: Charging Station is ready for operation. Green State B: Electric vehicle is plugged in.
-
Page 20: Charging Process
Operation 4.3 Charging Process The charging process of the electrify charging units is the same for all product variants. No matter if you decide for the base, smart or business. Only the approval of the charging process is different among each other. 4.3.1 Charging unit without authorization (Plug and Charge) Process Step Information... -
Page 21: Charging Station With Rfid Authorization
Operation 4.3.2 Charging station with RFID authorization Process Step Information Graphic 1. First check the operating eBox charging station is status of the eBox charging ready for operation with station. green LED indicator. 2. Connect the charging plug After the charging plug is to the vehicle to be charged. -
Page 22: Charging Station With App Authorization (Electrify Control Center)
Operation 4.3.3 Charging Station with App Authorization (electrify Control Center) Process Step Information Graphic 1. First check the operating eBox charging station is status of the eBox charging ready for operation with station. green LED indicator. 2. Connect the charging plug After the charging plug is to the vehicle to be charged. -
Page 23: Troubleshooting
Troubleshooting 5 Troubleshooting With the purchase of your eBox charging station, you have chosen a robust and compact design with maximum safety in operation and reliable charging for your electric and hybrid vehicle. With intelligent control, the eBox detects a fault and stops the operation immediately. Should a malfunction occur in the application, you will be informed via the LED indicator. -
Page 24: Repair Work
Repairs to the charging station may only be carried out by a qualified specialist. It should be noted that only spare parts released by hesotec electrify are permissible. If necessary, contact the manufacturer. -
Page 25: Maintenance / Disposal
Non-observance of the safety instructions can lead to a risk of mortal danger due to electrical voltage. The eBox charging stations from hesotec electrify are designed so that they are generally maintenance-free. Nevertheless, visual inspections should be carried out at regular intervals. -
Page 26: Appendix
7 Appendix 7.1 CE-Label and Declaration of Conformity The electrify eBox charging station of hesotec electrify is marked with a CE label. A copy of the Declaration of Conformity will be presented later. On request, this is available from hesotec electrify gmbh. -
Page 27: Notes
Notes 8 Notes... - Page 28 Rubbertskath 34 46539 Dinslaken / GER Phone +49(0) 2064 / 60 105 – 60 +49(0) 2064 / 60 105 - 50 Mail electrify@hesotec.de electrify.hesotec.de...
