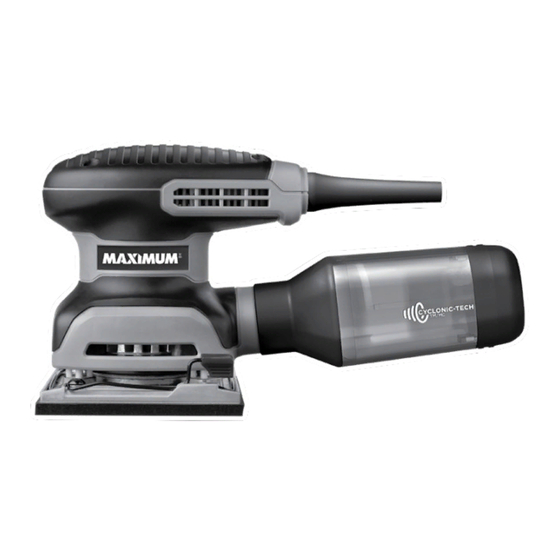

- Page 1 Corded 1/4-Sheet Orbit Sander Model No. 054-7276-4 IMPORTANT: INSTRUCTION Please read this manual carefully before MANUAL using this product, and save it for reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Important information Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-888-670-6682. SAVE THESE INSTRUCTIONS •... -
Page 4: Technical Specifications
054-7276-4 | contact us 1-888-670-6682 TECHNICAL SPECIFICATIONS Rated Input 120V, 60 Hz, 2.4A No-load Speed 14,000 OPM Weight (with dust canister) 3 lb 8 oz (1.6 kg) -
Page 5: Safety Guidelines
SAFETY GUIDELINES WARNING! Safety symbols in this instruction manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures. - Page 6 054-7276-4 | contact us 1-888-670-6682 ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Page 7 POWER TOOL USE AND CARE • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and more safely at the rate for which it was designed. •...
- Page 8 054-7276-4 | contact us 1-888-670-6682 • Empty the dust canister frequently and after completion of sanding. Be extremely careful of dust disposal; materials in fine particle form may be explosive. Do not throw sanding dust on an open fire. Spontaneous combustion may, in time, result from the mixture of oil or water with dust particles.
-
Page 9: Key Parts Diagram
PACKAGE CONTENTS Corded 1/4-sheet orbit sander, 2-in-1 vacuum adaptor, dust canister, sandpaper (x3), punch plate, nylon tote, and instruction manual. KEY PARTS DIAGRAM PART PART Switch Dust-canister body Dust canister Microfilter Sandpaper clamp 2-in-1 vacuum adaptor Sanding pad WARNING! • Remove the corded 1/4-sheet orbit sander from the package and examine it carefully. -
Page 10: Important Information
054-7276-4 | contact us 1-888-670-6682 IMPORTANT INFORMATION Before attempting to use this tool, become familiar with all of its operating features and safety requirements. For optimum performance and safety, read the following operating instructions carefully before using. -
Page 11: Operating Instructions
OPERATION INSTRUCTIONS ATTACHING THE SANDPAPER (fig 1) fig 1 1. Unplug the sander. 2. Disengage the sandpaper clamp by pushing the wire clamp on the side of the sanding pad towards the sander body. Sandpaper 3. Line up the edge of the sandpaper with clamp the edge of the sanding pad. - Page 12 054-7276-4 | contact us 1-888-670-6682 USING THE PUNCH PLATE (fig 2) fig 2 After the sandpaper has been clamped to the sanding pad, use the punch plate to punch the vacuum holes into the sheet. 1. Align the punch plate with the sanding pad and push down on the sander until the punch plate pierces the sandpaper.
- Page 13 3 Your sander is supplied with a dust canister to help you keep the working area clean. The dust canister is ideal for smaller jobs. For maximum efficiency, the dust canister should be emptied frequently during operation. To install: 1.
- Page 14 054-7276-4 | contact us 1-888-670-6682 ATTACHING VACUUM HOSE (fig 5) fig 5 1 1/4" (3.2 cm) hose 1 7/8" (4.8 cm) hose 2 1/2" (6.4 cm) hose 1 7/8 and 2 1/2" (4.8 and 6.4 cm) 2-in-1 vacuum adaptor When the dust canister is removed from the tool, a vacuum hose accessory (available separately) can be attached to the dust port.
- Page 15 SANDING This sander can be used for most sanding operations on materials such as wood, plastic and painted surfaces. Do not use the sander for wet sanding. 1. Plug the sander into the power source. 2. Place the sander on the workpiece so that the sandpaper is fully in contact with the workpiece.
-
Page 16: Maintenance
054-7276-4 | contact us 1-888-670-6682 MAINTENANCE The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air. Before each use: • Inspect the tool, the switch, and the pad. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEMS POSSIBLE CAUSES SOLUTIONS The sander does not Not connected to power Plug the sander into a start. source. power source. Replace with new The sandpaper is worn. sandpaper. Unsatisfactory The sandpaper is sanding result. not suitable for the Use the correct sandpaper. -
Page 18: Parts List
054-7276-4 | contact us 1-888-670-6682 EXPLODED VIEW... - Page 19 Part No. Description Part No. Description Power Cord 4810002000 3421538000 Dust Fan and Plug 3121124000 Cord Guard 5650044000 Plain Washer Cord 3120234000 5700014000 Ball Bearing Anchorage 5610024000 Tapping Screw 3520773000 Counterweight Internal Wire 4860450000 5620648000 Screw Assembly Internal Wire 2823885000 3127319000 Fan Baffle Assembly...
-
Page 20: Warranty
(with the same model, or one of equal value or specification), at the sole discretion of the Maximum Canada authorised repair centre (“Service Provider”). We will bear the cost of any repair or replacement and any costs of labour relating thereto. - Page 21 This warranty applies for a period of 5 years from the date of original retail purchase, as indicated on the bill of sale. Neither the retailer, Maximum Canada, nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
- Page 22 In addition to the 5-Year Limited Warranty, this MAXIMUM product is covered by our: 1-Year Repair Warranty...
