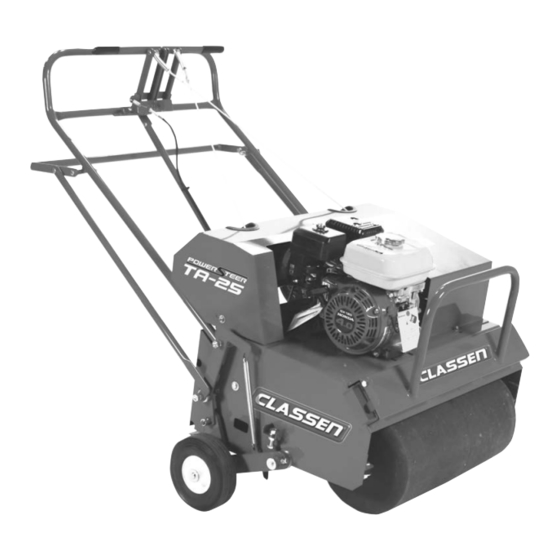

- Page 1 OPERATOR’S MANUAL AERATOR MODEL: TA-25DE POWERSTEER AERATORS (S.N 1140064404 and Above) 1028 Street Road • P.O. Box 38 Southampton, PA 18966 U.S.A. Ph. (877)596-6337 C100583 REV B 10-2014...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............1 Thank You ..............1 Read This Manual ..........1 Warranty ..............1 Measurements ............1 Serial Numbers ............1 Ordering Part ............1 Directions ..............1 OWNERS RECORD ............1 PRE-DELIVERY CHECK LIST ........1 DELIVERY CHECK LIST ..........1 SAFETY PRECAUTIONS ..........2 Training ..............2 Preparation Safety ..........2 Engine Safety............2 Operational Safety ..........2... -
Page 3: Introduction
INTRODUCTION PRE-DELIVERY CHECK LIST THANK YOU Check the following before you deliver the Aerator to the Thank you for purchasing a CLASSEN Aerator customer. READ THIS MANUAL 1. Guards and shields fastened in place. Read this manual carefully in its entirety. It contains safety, 2. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS TRAINING OPERATIONAL SAFETY 1. Regard the unit as a piece of power equipment and teach 1. Carefully read and follow all caution decals. (See Pg. 5.) this regard to all who operate this unit. 2. Operate only in daylight or good artificial light. 2. -
Page 5: Operation
OPERATION PREPARATION TO OPERATE AERATOR 1. Carefully read this manual and operate Aerator correctly. 1. Start engine. (See “Starting Engine” section.) 2. Always check machine on level ground. WARNING 3. Visually check all moving parts and all fasteners, if loose or CAUTION: TO AVOID INJURY, DO NOT PLACE broken, tighten or replace. -
Page 6: General Maintenance
2. Take off pulley guard (see Fig. 2) by removing bolts, etc. which FOLLOWING: attach it to the frame. • When replacement parts are required, use genuine Classen parts or parts with equivalent characteristics including type, 3. Loosen the bolts, nuts, lock washers, and flat washers (Key 4) to strength, and material. -
Page 7: Aerator Storage
SAFETY DECALS AERATOR STORAGE WARNING SAFETY WARNING: TO PREVENT POSSIBLE EX- PLOSION OR IGNITION OF VAPORIZED FUEL, DO NOT STORE EQUIPMENT WITH FUEL IN TANK OR CARBURETOR OR NEAR OPEN FLAME (I.E. FURNACE, WATER HEATER, PILOT LIGHT). STORAGE INSTRUCTIONS Before the Aerator is put into storage for any period exceeding 30 days, the following steps should be taken. -
Page 8: Declaration Of Conformity
Jim White Wombwell, Barnsley, South Yorkshire, S73 OBS UK Managing Director Date: March 8, 2011 Declare that the machine described below: Make & Type………………………………………….Classen Self Propelled Aerator Category………………………………………… Aerator Series……………………………………………. TA-17DE, TA-25DE Engine……………………………………………Honda Speed…………………………………………….High idle governor setting 3600 rpm ±100rpm Net installed power……………………………..3.6KW (4.8 HP) and 5.3KW (7.0 HP) -
Page 10: Two Year Limited Warranty
Effective April 1, 2007 For the period of two years from the date of purchase, CLASSEN will repair or replace for the original purchaser free of charge, any part or parts found upon the examination of our factory authorized service station, or by the factory in Southampton, PA to be defective in material or workmanship.
