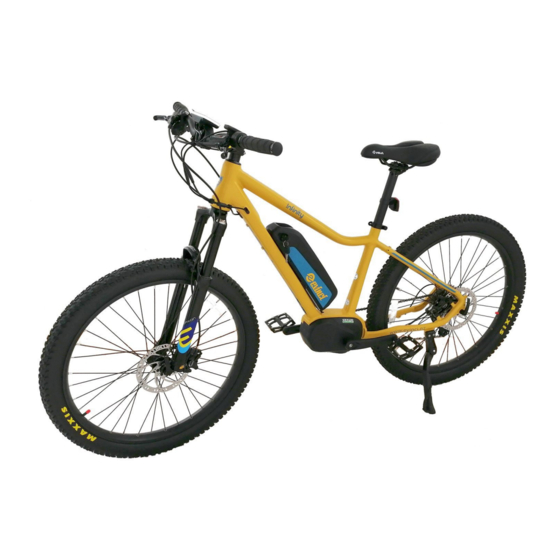

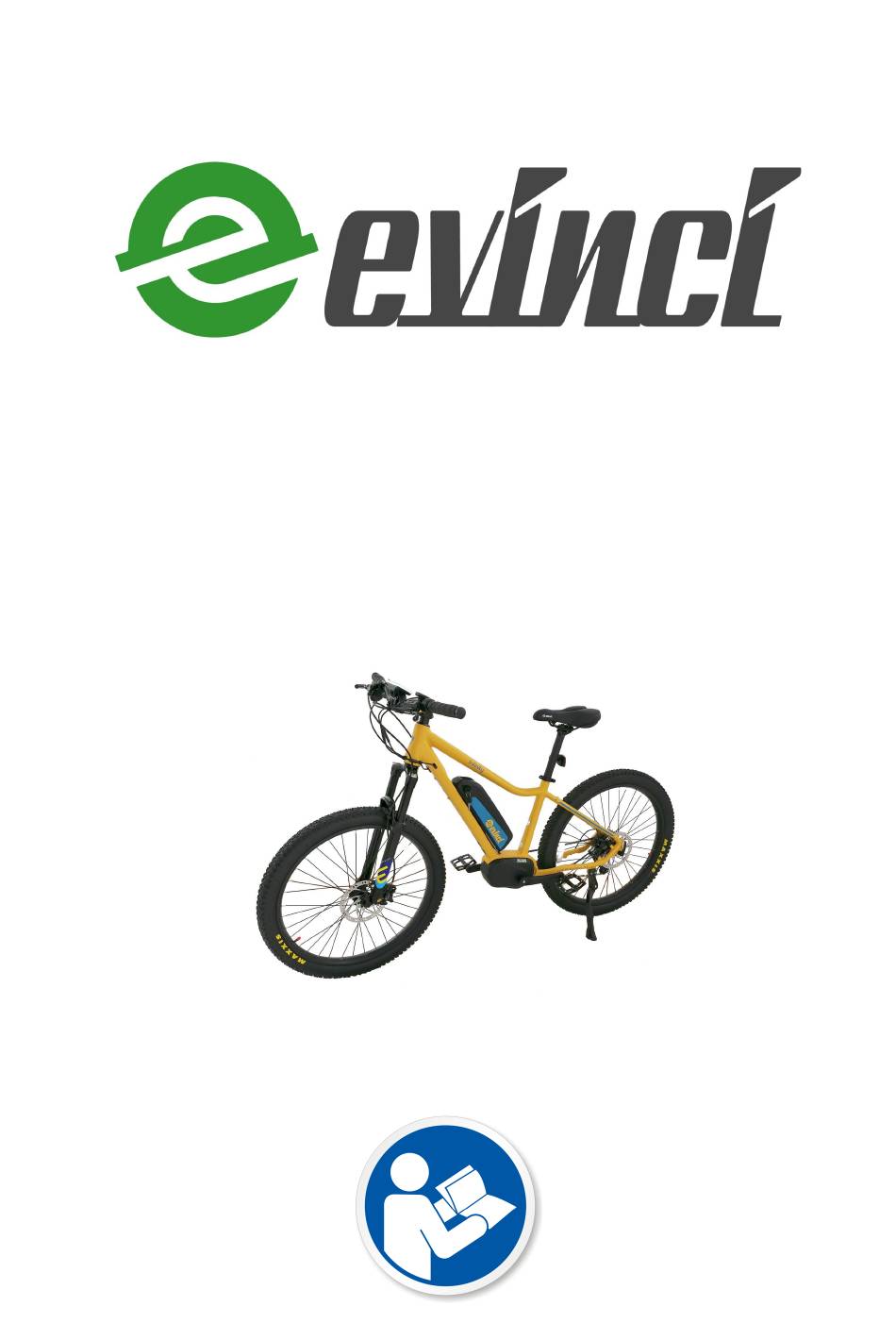

- Page 1 ELECTRIC BICYCLE USER MANUAL infinity MD-Series PLEASE READ CAREFULLY...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions..................3 Symbols.......................3 Introduction....................4 Mode of operation and extent of electronic power assistance..........4 Levels of support......................4 What comes with the bike?................4 Optional accessories..................4 Components....................5 Basic Safety Tips...................5 For your road safety.....................6 How to use your charger................6 Safety notes concerning the battery...............8 Charging the battery..................9 How to remove and insert the battery................9 Before starting to ride...................9... -
Page 3: Safety Instructions
Your frame serial number is stamped into frame at the bottom of the crank axle. To register just go to our evinci website (evinci.nz) and click on “Login” to create an account with your details. You may register up to two bikes within the same account. -
Page 4: Introduction
Introduction You have decided in favour of a Pedelec (Pedal Electric Cycle) - a bicycle that is equipped with an electric motor to give you additional assistance when riding. With this bicycle, you can make better progress in headwinds, when transporting heavy loads or on steep slopes. -
Page 5: Components
Components LCD Display Battery Charge Port Control Buttons Battery Lock Throttle (optional - included) Suspension Lockout Control Mid-Drive Motor Rebound Control Basic Safety Tips Always pull the brakes and hold the handlebar firm and straight before taking off to make sure you stay in control of the bike when power assistance is in action! -
Page 6: For Your Road Safety
For your road safety ● Always wear a suitable bike helmet ● Wear bright clothing or reflective elements to be seen better by other road users ● Wear shoes with a non-slip sole ● Wear close-fitting clothing on your legs or wear trouser clips ●... - Page 7 Should there be an incidence of contact with water or any other liquid, make sure to unplug the charger immediately from the power socket and have it inspected by your dealer. Please make sure the charger is always placed on a flat surface when in use. Also, make sure that the charger is always unplugged and removed from the power socket when not in use.
-
Page 8: Safety Notes Concerning The Battery
Safety notes concerning the battery • Keep the battery out of reach for children • Never try to open the battery. Apart from this being dangerous, all warranty will be void • Do not provoke a shortcut circuit with metal gadgets •... -
Page 9: Charging The Battery
Charging the battery You may charge the battery on the bike or remove it to a more convenient place. 1. Open the plug cover at the right side of the battery (#5) 2. Connect charger cord to the battery 3. Connect the power cord to a mains socket The charger will get warm while charging –... -
Page 10: Adjust Seat Height
Adjust seat height Open the quick-release lever at the seat clamp, adjust the seat height and close the lever firmly. If the lever is too loose, open the lever again and turn the adjusting nut clockwise until you feel resistance. Now close lever again. It should close with noticeable resistance. -
Page 11: Adjust The Stem And Handlebar
Adjust the stem and handlebar The angle of the stem can be adjusted by opening the 6mm Allen Key screw at the right side of the stem. Do not remove the screw! There are two clamp plates, as soon as both are release you may adjust the angle. -
Page 12: Operation
Operation • Turn the display on by pushing the (l) button • Select the desired assistance level with the UP or DOWN keys. Start riding. • Use the throttle as desired to add additional power to the selected assistance (the throttle does only add power according to the selected level, this is a safety measure) •... -
Page 13: Throttle
TIME: The riding time parameter is automatically reset after shut down. BACKLIGHT: by pushing the On/Off button the display back-light can be turned on and off. Walk assistance: you can activate the motor to support you pushing the bike up a hill. Press and keep depressed the DOWN button. After 2 seconds the motor will start with a maximum speed of 6kph. -
Page 14: Brakes
While you change gears a sensor will reduce the motor power to avoid as much as possible too high forces and nasty noises. You can help with this process by reducing your pedal power with each gear change. Your chain and cassette will thank you with a higher life expectancy. -
Page 15: Gears
Gears Our infinity bike uses a solid and easy to maintain Shimano Deore gear system. It can happen after a while that gears do not perfectly change anymore or you experience a rattling noise while pedalling. This is normal due to the nature of the used control wire hulls which can get compressed over time. -
Page 16: Troubleshooting
Troubleshooting Problem Resolution The Battery is charged but the 1. Check plug going from display to frame display won't turn on harness 2. If possible measure voltage at the battery socket (left and right pin). If no voltage can be measured, take the battery to your retailer. -
Page 17: Glossary
Glossary BMS is an electronic circuit for battery monitoring. It increases a battery pack's safety by making sure that all cells are operated within the permitted voltage range only. When current is too high, the temperature is too high or one line of batteries inside the battery is outside the permitted voltage range the charge output will be switched off. -
Page 18: Pedal Assist Sensor (Pas)
Pedal Assist Sensor (PAS) In an electric bicycle, the PAS measures if the crank is moving in riding direction. This information will be passed on the controller which then activates the motor to support the rider. The PAS can distinguish between forwards and backward movements of the crank. - Page 20 NZEBIKES 2016 Ltd 19 Esk Street Tauranga evinci.nz Ph: 022 675 2699 evinci™ is a registered trademark of NZEBIKES 2016 Ltd Rev 3/20...
