Definitive Technology IWSub 10/10 Owner's Manual page 5

Figure 1
2. Make certain to incorporate at least 1
within the inner wall space to make room for the IWSub's locking arms.

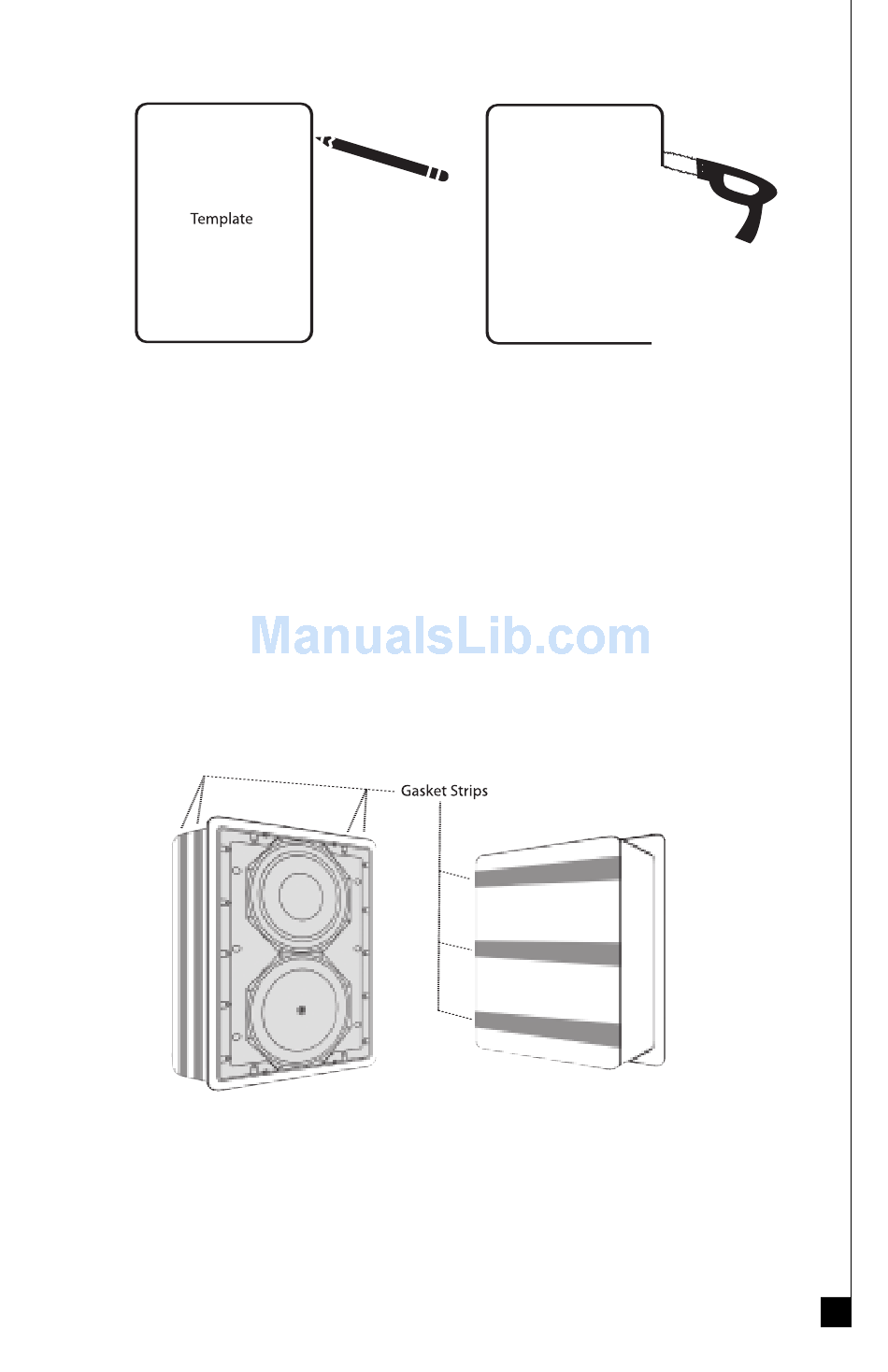

3. With these measurement requirements in mind, place the template against
the inside edge of one of the studs. (Do not "center" the template if your
studs are wider than 14
template is straight and plumb. The outside edge of the template will
be your exact cutout size. [Figure 1]
4. Carefully cut the hole with the appropriate cutting tool for your wall mater-
ial. Start the hole by drilling a hole on the inside of the template line (with
the drill bit touching the line). Use this hole to insert your saw or knife
and begin cutting. [Figure 2]
Figure 3
5. Before installing the speaker in the hole, apply the four long strips of
gasket material to the speaker: two pieces on each side of the speaker that
will come into contact with the studs. [Figure 3] Use the three shorter strips
of gasket material to pad the rear of the speaker against the back of the
exposed wall. [Figure 4]
1 / " of space above and below the area
4
/ "–15 / ".) Use a level to make certain the
1 1
2 2
Figure 2
Figure 4
5
