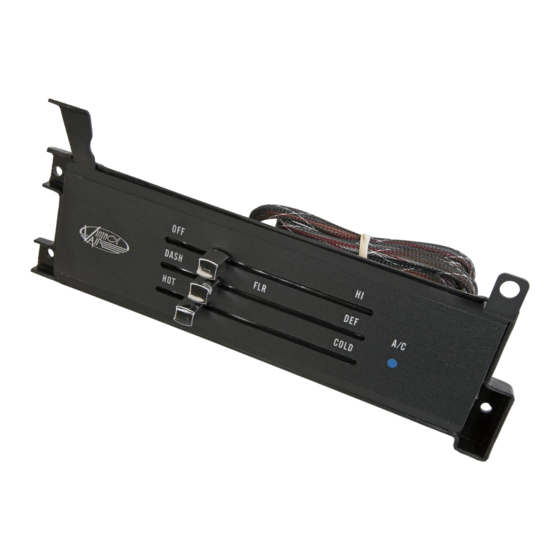

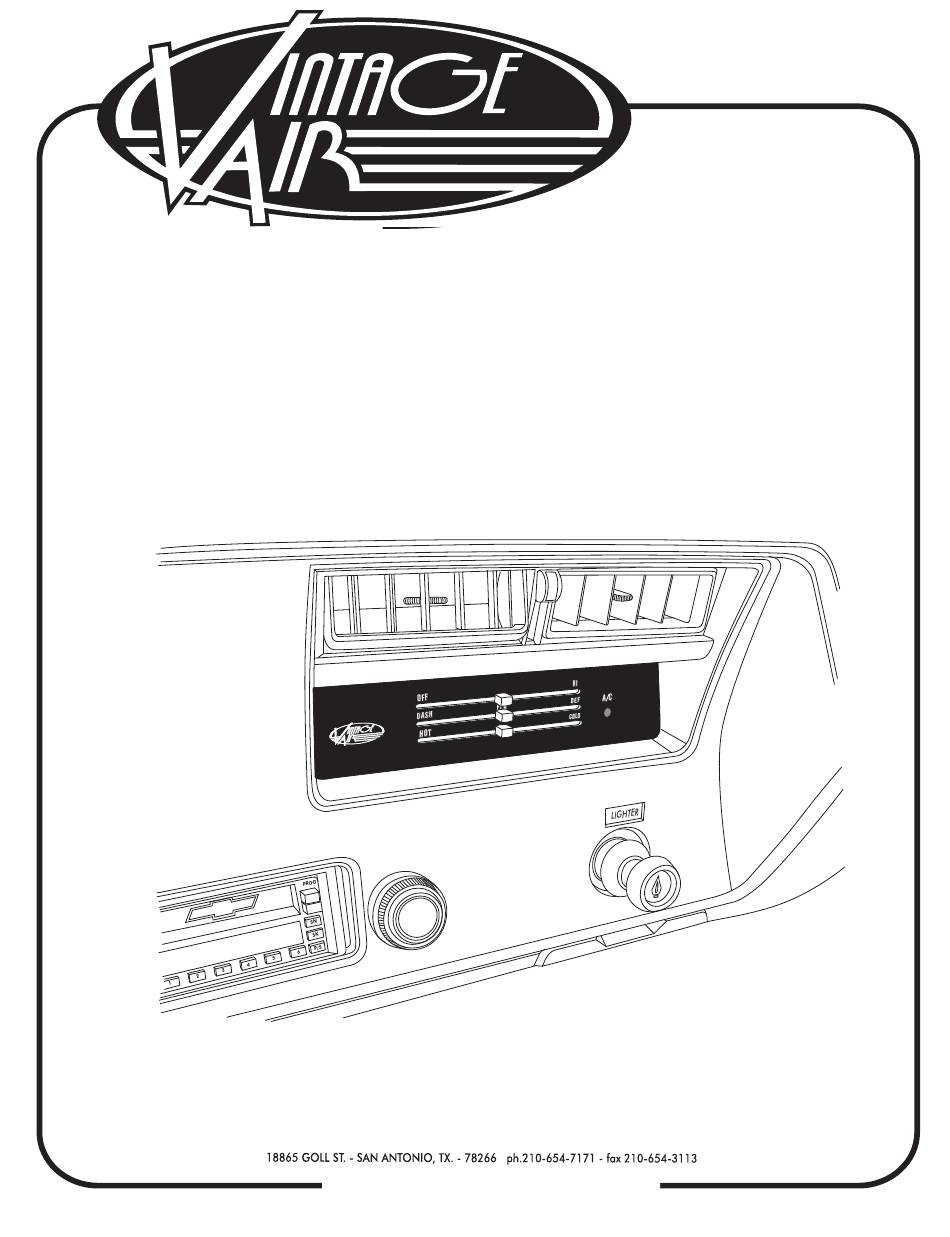

- Page 1 1970-72 CHEVELLE CONTROL PANEL CONVERSION KIT 473072 903072 REV A 12/2/08 , 1970-72 CHEVELLE CNTRL PNL INSTR PG 1 OF 8...
- Page 2 1970-72 CHEVELLE CNTRL PNL Table of Contents PAGES COVER TABLE OF CONTENTS PACKING LIST/ PARTS DISCLAIMER REMOVING OEM CONTROL PANEL CONTROL PANEL & CONTROL HARNESS INSTALLATION WIRING DIAGRAM OPERATION OF CONTROLS CONTROL PANEL KIT PACKING LIST 903072 REV A 12/2/08 , 1970-72 CHEVELLE CNTRL PNL INSTR PG 2 OF 8...
- Page 3 GEN IV UNIVERSAL CONTROL HARNESS (TYPE C) ** BEFORE BEGINNING INSTALLATION OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT. PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS, VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS.
- Page 4 1970-72 CHEVELLE CONTROL PANEL CONVERSION KIT INSTRUCTIONS REMOVING OEM CONTROL PANEL NOTE: REMOVAL OF DASHBOARD REQUIRED TO INSTALL THE CONTROL PANEL. VINTAGE AIR RECOMMENDS THAT YOU UTILIZE THE FACTORY SERVICE MANUAL WHEN YOU DISASSEMBLE AND REASSEMBLE THE DASHBOARD. DISCONNECT BATTERY GROUND CABLE.
- Page 5 1970-72 CHEVELLE CRTL PNL CONTROL PANEL AND CONTROL HARNESS INSTALLATION INSTALL CONTROL PANEL ASM TO BACK SIDE OF INSTRUMENT PANEL AS SHOWN IN FIGURE 2 BELOW. SECURE THE CONTROL PANEL ASM TO INSTRUMENT PANEL USING OEM SCREWS AS SHOWN IN FIGURE 2 BELOW.
- Page 6 1970-72 CHEVELLE CNTRL PNL WIRING DIAGRAM WHT/BLU VIEWED FROM BOARD TOP SIDE STEPPER DASH/F LOOR COLD OPTIONAL: WHT/RED WIDE OPEN THROTTLE SWITCH CONTACTS DASH CLOSE ONLY AT F ULL THROTTLE, STEPPER WHT/YEL WHICH DISABLES DEF ROST/PLENUM AC COMPRESSOR VIEWED FROM WHT/GRN WIRE SIDE STEPPER...
- Page 7 1970-72 CHEVELLE CRTL PNL OPERATION OF CONTROLS NOTE: WHEN BATTERY POWER IS FIRST CONNECTED TO THE ECU, THE COMPUTER GOES THROUGH AN INITIALIZATION SEQUENCE.THIS INITIALIZATION MAY TAKE UP TO 30 SECONDS. DURING INITIALIZATION THE BLOWER WILL NOT OPERATE, BUT THE DOORS INSIDE THE UNIT WILL BE OPERATING. A LOW BATTERY OR DISCONNECTING THE BATTERY MAY ALSO TRIGGER ARE-INITIALIZATION.
- Page 8 DATE: ** BEFORE BEGINNING INSTALLATION OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT. PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS, VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS. NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
